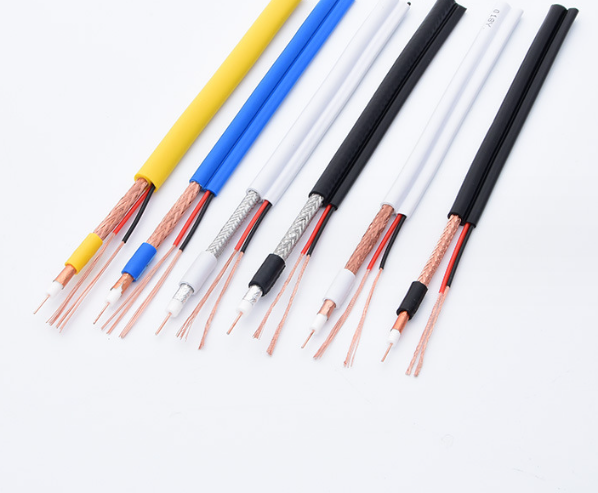

AVPV聚氯乙烯绝缘安装屏蔽电缆PVC insulated installation shielded cable

加入购物车成功！

产品名称：AVPV聚氯乙烯绝缘安装屏蔽电缆PVC insulated installation shielded cable
浏览：
添加时间：2024-03-19 16:08:38
推荐度：

介绍：

AVPV_安装用电缆使用特性：

1、导体长期允许工作温度为70℃。

2、敷设时环境温度≥0℃。

3、***小弯曲半径：

4、无铠装层电缆，应不小于电缆外径的6倍。

5、有铠装或铜带屏遮结构电缆，应不小于电缆外径的12倍。

6、有屏遮结构的软电缆，应不小于电缆外径的6倍。AVPV聚氯乙烯绝缘安装屏蔽电缆执行标准： Q/FYC005-91使用条件：使用温度 -40～70℃。相对湿度 AVV、AVPV型为98%以下。额定电压：交流（50Hz）380V。直流500V。试验电压：交流50Hz，1000V。绝缘电阻： 20℃时，大于0.5MΩ·km。

应用领域：适用于固定敷设供交流电压380V及以下或直流电压500V及以下仪器、电器设备。交货长度：交货长度为100m成圈

AVPV_ Installation cable usage characteristics:

1. The long-term allowable working temperature for conductors is 70 ℃.

2. The ambient temperature during laying is ≥ 0 ℃.

3. Minimum bending radius:

4. For cables without armor layer, it should not be less than 6 times the outer diameter of the cable.

5. Cables with armored or copper tape shielding structures should not be less than 12 times the outer diameter of the cable.

6. Soft cables with shielding structures should not be less than 6 times the outer diameter of the cable. AVPV PVC insulated installation shielded cable execution standard: Q/FYC005-91 Service conditions: Service temperature -40~70 ℃. The relative humidity of AVV and AVPV types is below 98%. Rated voltage: AC (50Hz) 380V. DC 500V. Test voltage: AC 50Hz, 1000V. Insulation resistance: greater than 0.5M Ω· km at 20 ℃.

Application field: Suitable for fixed installation of instruments and electrical equipment with AC voltage of 380V and below or DC voltage of 500V and below. Delivery length: The delivery length is 100m in a circle
