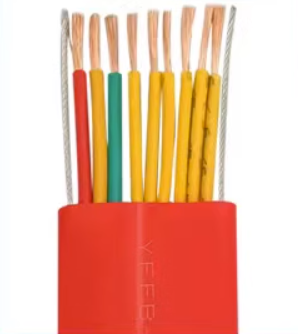

产品名称：YVFBR扁平电缆 YVFBR flat cable
浏览：
添加时间：2024-03-20 14:48:12
推荐度：

介绍：

YVFBR扁平电缆使用于工作电压450/750V级以下，环境温度-40~70℃的起重、运输、机械、电气、矿山、等行业各种移动动力装置的电源连接及控制信号照明等。YVFBR flat cable is used for power connection and control signal lighting of various mobile power devices in industries such as lifting, transportation, machinery, electrical, mining, etc. with working voltage below 450/750V level and ambient temperature of -40~70 ℃.

产品用途

一：扁电缆特点及用途:扁电缆适用于交流额定电压0.6/1KV及以下固定敷设用动力传输线或移动电器用连接电缆，

产品具有耐热辐射、耐寒、耐酸碱及腐蚀性气体、防水等特性，电缆结构柔软，辐射方便，高温(高寒)环境下电气性能稳定，

抗老化性能突出，使用寿命长，广泛用于冶金、电力、石化、电子、汽车制造等行业。

Product Usage

1： Characteristics and applications of flat cables: Flat cables are suitable for fixed power transmission lines

or connecting cables for mobile appliances with rated AC voltage of 0.6/1KV and below,

The product has characteristics such as heat resistance, radiation resistance, cold resistance, acid and alkali resistance, corrosive gases resistance, waterproofing, etc. The cable structure is soft,

radiation is convenient, and electrical performance is stable in high temperature (cold) environments,

With outstanding anti-aging performance and long service life, it is widely used in metallurgy,

power, petrochemical, electronics, automobile manufacturing and other industries.

二：扁电缆执行标准阻燃耐火特性试验执行GB12666-90要求： Flat cables shall be tested for flame retardant

and fire resistance characteristics in accordance with the requirements of GB12666-90

三：使用特性

1．额定电压：U0/U 0.6/1KV 工作温度： 180℃ 低环境温度：固定敷设-60℃

2．扁电缆安装敷设温度应不低于-25℃。

3．电缆允许弯曲半径：电缆小为电缆外径的15倍

3： Usage characteristics

1. Rated voltage: U0/U 0.6/1KV Working temperature: 180 ℃ Low ambient temperature: Fixed laying -60 ℃

The installation and laying temperature of flat cables should not be lower than -25 ℃.

3. The allowable bending radius of the cable is 15 times the outer diameter of the cable

结构特点

1、导电线芯采用软结构，确保电缆柔软性能好。

2、绝缘和保护层材料采用丁聚物，提高电缆柔软特性和防腐、耐寒特性。

3、绝缘线芯分色，为敷设安装提供方便。

Structural characteristics

1. The conductive wire core adopts a soft structure to ensure good flexibility performance of the cable.

2. The insulation and protective layer materials are made of butadiene polymer,

which improves the flexibility, corrosion resistance, and cold resistance of the cable.

3. Insulation core color separation provides convenience for laying and installation.

上一篇：KGGRB高温硅橡胶扁电缆

下一篇：YFGB,KFGB硅橡胶护套扁平电缆

YFGB,KFGB硅橡胶护套扁平电缆

YKVFBG扁平电缆

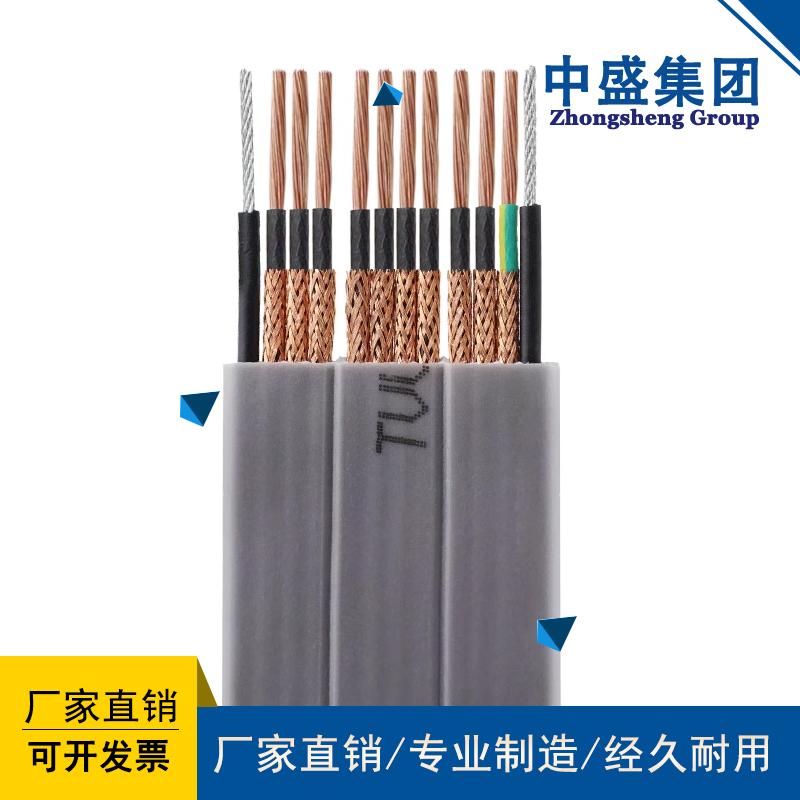

TVVBS/TVVBSG电梯扁电缆

YFFB/YVFB柔性扁平电缆

行车扁电缆 YEFBG 832.5+…

TVVBG-TV电梯监控用电缆，电梯监控

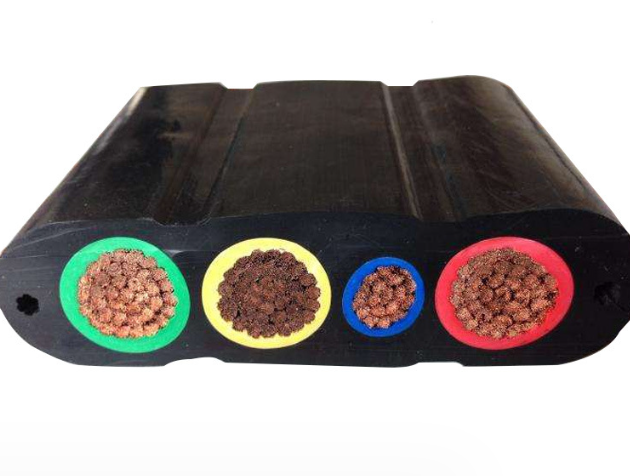

YCFB YCWB耐寒扁电缆
