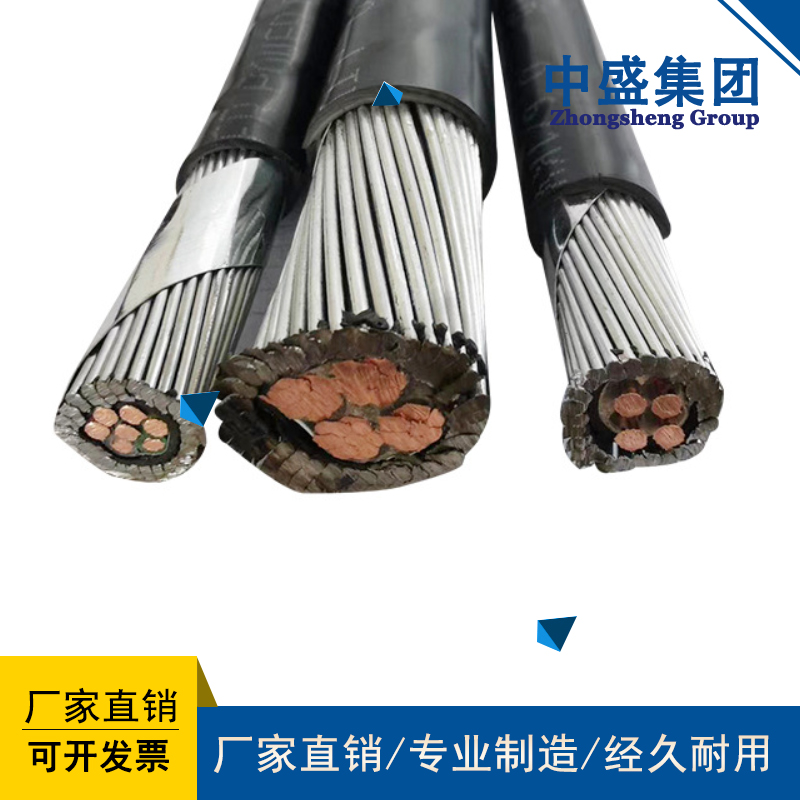

产品名称：铠装控制软电缆KVVRP3-32 Steel wire armored control flexible cable
浏览：
添加时间：2024-03-21 16:12:08
推荐度：

介绍：

本产品按GB9330《塑料绝缘控制电缆》，IEC60227《额定电压450/750V及以下聚氯乙烯绝缘电缆》以及IEC60502《额定电压1-30kV挤包绝缘电力电缆及附件》等标准制造。
ZR-KVVRP32 3*1.5钢丝铠装阻燃控制电缆-适用范围
聚氯乙烯绝缘聚氯乙烯护套控制电缆适用于额定电压450/750V及以下或0.6/1kV及以下控制、信号、保护及测量系统接线之用。

Product characteristics and applications of ZR-KVVRP32 3 * 1.5 steel wire armored flame-retardant control cable

This product is manufactured in accordance with standards such as GB9330 Plastic Insulated Control Cables,

IEC60227 PVC Insulated Cables with Rated Voltages of 450/750V and Below, and IEC60502 Squeezed Insulated

Power Cables and Accessories with Rated Voltages of 1-30kV.

ZR-KVVRP32 3 * 1.5 steel wire armored flame-retardant control cable - Scope of application

PVC insulated PVC sheathed control cables are suitable for wiring control, signal, protection,

and measurement systems with rated voltages of 450/750V and below or 0.6/1kV and below.

ZR-KVVRP32 3*1.5钢丝铠装阻燃控制电缆-使用特性

●工频额定电压Uo/U为450/750V或0.6/1kV。●电缆导体的允许长期***高工作温度为70℃。
●电缆敷设时环境温度应不低于0℃，若环境温低于0℃时，应对电缆进行预热。
●电缆的推荐允许弯曲半径如下：
无铠装电缆，应不低于电缆外径的6倍；
铠装或铜带屏蔽电缆，应不低于电缆外径的12倍；
屏蔽软电缆，应不低于电缆外径的6倍。

ZR-KVVRP32 3 * 1.5 steel wire armored flame-retardant control cable - Service characteristics

The rated power frequency voltage Uo/U is 450/750V or 0.6/1kV.

The maximum allowable long-term working temperature for cable conductors is 70 ℃.

When laying cables, the ambient temperature should not be lower than 0 ℃.

If the ambient temperature is lower than 0 ℃, the cables should be preheated.

The recommended allowable bending radius for cables is as follows:

Unarmored cables should not be less than 6 times the outer diameter of the cable;

Armored or copper tape shielded cables should not be less than 12 times the outer diameter of the cable;

Shielded flexible cables should not be less than 6 times the outer diameter of the cable.

阻燃控制电缆-电缆的型号、名称

型号

名称

Flame retardant control cable - cable model and name

model

name

KVV	铜芯聚氯乙烯绝缘聚氯乙烯护套控制电缆
KVVP	铜芯聚氯乙烯绝缘聚氯乙烯护套编织屏蔽控制电缆
KVVP2	铜芯聚氯乙烯绝缘聚氯乙烯护套铜带屏蔽控制电缆
KVV22	铜芯聚氯乙烯绝缘聚氯乙烯护套钢带铠装控制电缆
KVV32	铜芯聚氯乙烯绝缘聚氯乙烯护套细钢丝铠装控制电缆
KVVR	铜芯聚氯乙烯绝缘聚氯乙烯护套控制软电缆
KVVRP	铜芯聚氯乙烯绝缘聚氯乙烯护套编织屏蔽控制软电缆
KVVP-22	铜芯聚氯乙烯绝缘聚氯乙烯护套铜丝编织屏蔽钢带铠装控制电缆
KVVP2-22	铜芯聚氯乙烯绝缘聚氯乙烯护套铜带屏蔽钢带铠装控制软电缆

KVV

Copper core PVC insulated PVC sheathed control cable

KVVP

Copper core PVC insulated PVC sheathed braided shielded control cable

KVVP2

Copper core PVC insulated PVC sheathed copper tape shielded control cable

KVV22

Copper core PVC insulated PVC sheathed steel strip armored control cable

KVV32

Copper core PVC insulated PVC sheathed fine steel wire armored control cable

KVVR

Copper core PVC insulated PVC sheathed control flexible cable

KVVRP

Copper core PVC insulated PVC sheathed braided shielded control flexible cable

KVVP-22

Copper core PVC insulated PVC sheathed copper wire braided shielded steel tape armored control cable

KVVP2-22

Copper core PVC insulated PVC sheathed copper tape shielded steel tape armored control flexible cable

阻燃控制电缆-生产范围 Flame retardant control cables - Production scope

型号model	额定电压 rated voltage	导体标称截面Nominal cross-section of conductormm2
		0.5	0.75	1.0	1.5	2.5	4	6	10
		芯数CORE
KVV	450/750V 或 0.6/1kV	-	2～61				2～14		2～10
KVVP		-	2～61				2～14		2～10
KVVP2		-	2～61				2～14		2～10
KVV22		-	7～61		2～61		2～14		2～10
KVV32		-	19～61		7～61		2～14		2～10
KVVR		2～61					-
KVVRP		2～61				2～48	-
KVVP-22		-	2～61				2～14		2～10
KVVP2-22		-	2～61				2～14		2～10
