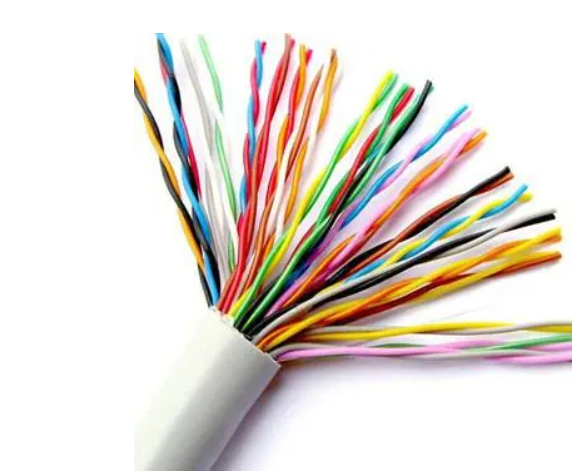

产品名称：HPYV通信电缆HPYV Communication cable
浏览：
添加时间：2024-03-21 16:53:05
推荐度：

介绍：

HPYV通信电缆适用全国通信网络中的各种本地网固定通讯线路，还适合于工厂、机关、学校、交通、林业、矿山、电力等部门通信线路使用。（适用于线路的始端和终端，供连接市里电缆至分线箱或配线架之用）

HPYV communication cables are suitable for various fixed communication lines in the national communication network, as well as for communication lines in factories, government agencies, schools, transportation, forestry, mining, power and other departments. (Suitable for the beginning and end of the line, used to connect city cables to distribution boxes or distribution frames)

产品用途：主要用于传输音频、150kHZ及以下的模型信号和2048kbit/s及以下的数字信号，在一定条件下，也可用于传输2048kbit/s以上的数字信号，高传输频率分别为30MHz与100MHz.

Product Usage: Mainly used for transmitting audio, model signals up to 150kHz, and digital signals up to 2048kbit/s. Under certain conditions, it can also be used for transmitting digital signals above 2048kbit/s. High transmission frequencies are 30MHz and 100MHz, respectively

使用条件：使用温度（℃）：-50~+60 敷设条件：架空，管道

生产规格：对数：5对一800对线径（mm）：0.4、0.5、0.6、0.7、0.8

Usage conditions: Operating temperature (℃): -50~+60. Installation conditions: overhead, pipeline

Production specifications: logarithm: 5 pairs, 800 pairs, wire diameter (mm): 0.4, 0.5, 0.6, 0.7, 0.8
