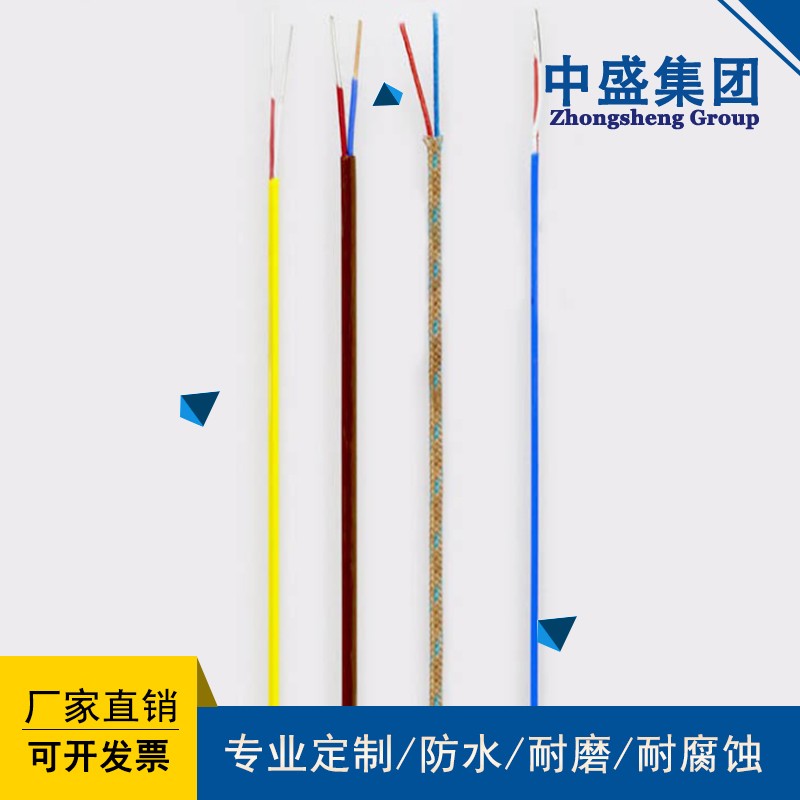

产品名称：ZC-KX-HSFP2FP2高温补偿电缆High temperature compensation cable
浏览：
添加时间：2024-03-21 17:17:57
推荐度：

介绍：

ZC-KX-HSFP2FP2高温补偿电缆具有与所匹配的热电偶的热电动势的标称值相同的一对带有绝缘层的导线，用它们连接热电偶与测量装置，以补偿它们与热电偶连接处的温度变化所产生的误差。分为延长型和补偿型两种。

The ZC-KX-HSFP2FP2 high-temperature compensation cable has a pair of insulated wires with the same nominal value as the thermoelectric electromotive force of the matched thermocouple, which are used to connect the thermocouple to the measuring device to compensate for the errors caused by temperature changes at their connection with the thermocouple. It is divided into two types: extension type and compensation type.

适用于电力、冶金、石油、化工、轻纺等工业以及国防、科研等部门自动化测温仪表的单点或多点连接。

Suitable for single or multi-point connection of automated temperature measuring instruments in industries such as power, metallurgy, petroleum, chemical, light textile, as well as national defense, scientific research, and other departments.

ZC-KX-HSFP2FP2高温补偿电缆使用特性：

使用温度：耐热级： -65 ℃ ~+200 ℃及 -65 ℃ ~+260 ℃两种；

普通级： -40 ℃ ~+70 ℃及 -40 ℃ ~+105 ℃两种；

***小弯曲半径：补偿导线：不小于导体外径 8 倍；

补偿电缆：有铠装时不小于电缆外径 12 倍，无铠装时不小于电缆外径6倍。

Usage characteristics of ZC-KX-HSFP2FP2 high-temperature compensation cable:

Usage temperature: Heat resistance level: -65 ℃~+200 ℃ and -65 ℃~+260 ℃;

Ordinary level: -40 ℃~+70 ℃ and -40 ℃~+105 ℃;

Minimum bending radius: Compensation wire: not less than 8 times the outer diameter of the conductor;

Compensation cable: not less than 12 times the outer diameter of the cable with armor, and not less

than 6 times the outer diameter of the cable without armor.

ZC-KX-HSFP2FP2高温补偿电缆规格参数：High temperature compensation cable specification parameters:

型号 model	使用分类 apply classification	温度范围℃temperature range	热电动势允差μV Thermoelectric electromotive force tolerance μ V		测量端温度 Measurement end temperature ℃	往复电阻20℃长度为1m不大于Ω Reciprocating resistance at 20 ℃, with a length of 1m and no more than Ω
			普通级Common	准确级accuracy class		0.5mm2	1.0mm2	1.5mm2	2.5mm2
SC	G	0～100	±60(±5.0℃)	±30(±5.0℃)	1000	0.10	0.05	0.03	0.02
	H	0～200
KCA	G	0～100	±100(±2.5℃)	±60(±1.5℃)	1000	1.40	0.70	0.47	0.28
	H	0～200			900
KCB	G	0～100			900	1.04	0.70	0.47	0.28
KX	G	-20～100			900	2.20	1.10	0.73	0.44
	H	-25～200			900
EX	G	-20～100	±200(±2.5℃)	±120(±1.5℃)	500	2.50	1.25	0.83	0.50
	H	-25～200			500
JX	G	-20～100	±140(±2.5℃)	±85(±1.5℃)	500	1.30	0.65	0.43	0.26
	H	-25～200			500
TX	G	-20～100	±60(±1.0℃)	±30(±0.5℃)	300	1.04	0.52	0.35	0.21
	H	-25～200	±90(±1.5℃)	±48(±0.8℃)	300
NC	G	0～100	±100(±2.5℃)	±60(±1.5℃)	900	1.50	0.75	0.50	0.30
	H	0～200			900
NX	G	-20～100			900	2.86	1.43	0.95	0.57
	H	-25～200			900
