产品名称：ZR-RVSP flame-retardant shielded twisted pair
浏览：
添加时间：2024-04-07 14:28:57
推荐度：

介绍：

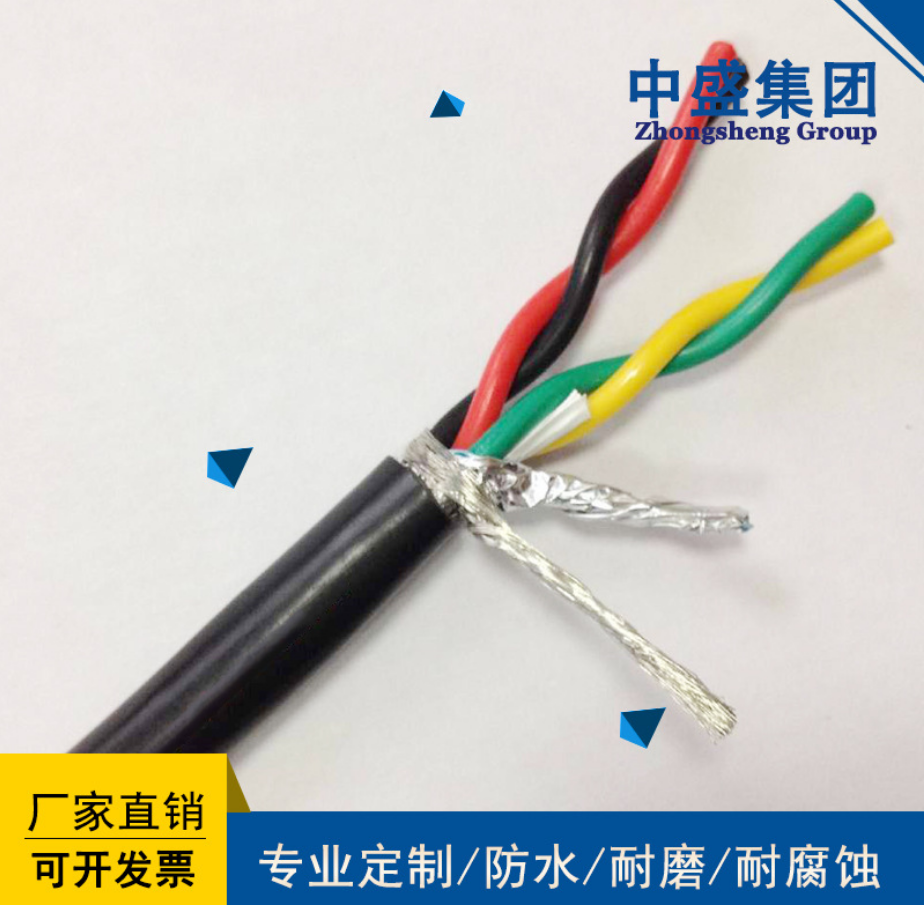

ZR-RVSP阻燃屏蔽双绞电缆

ZR-RVSP flame-retardant shielded twisted pair cable

　RVSP系列在RVS的基础上再加上一层铜丝屏蔽网,因此在减少信号的传输损耗,屏蔽外界干扰方面比RVS系列效果更好,但

The RVSP series adds a layer of copper wire shielding mesh on top of the RVS, which reduces signal transmission loss and shields external interference better than the RVS series. However

由于增加了铜丝屏蔽网,它的成本也比RVS系列高出许多.常被用于那些对传输的信号要求很高的场合.

Due to the addition of copper wire shielding mesh, its cost is also much higher than the RVS series. It is often used in situations where high signal transmission requirements are required

技术指标:聚氯乙烯绝缘电缆长期允许工作温度不超过70℃,电缆的敷设温度应不低于0℃,外径(D)小于25mm电缆的允许弯曲半径,应不小于电缆外径的4倍；外径(D)为25mm及以上的电缆的允许弯曲半径,应不小于电缆外径的6倍.

Technical indicators: The long-term allowable working temperature of PVC insulated cables shall not exceed 70 ℃, and the laying temperature of the cable shall not be lower than 0 ℃. The outer diameter (D) shall be less than the allowable bending radius of the cable, which shall not be less than 4 times the outer diameter of the cable; The allowable bending radius of cables with an outer diameter (D) of 25mm and above should not be less than 6 times the outer diameter of the cable

产品说明:本产品适用于交流额定电压450/750V及以下的动力,日用电器,仪器,仪表,电讯设备,照明电路以及自动化

Product Description: This product is suitable for power, daily appliances, instruments, meters, telecommunications equipment, lighting circuits, and automation with rated AC voltage of 450/750V and below

装置的固定敷设,连接用软线,安装用软线以及干扰较强的场合用屏蔽电线,根据使用环境的需要还可生产此类电线电缆

The fixed installation of the device, the use of flexible wires for connection, installation, and shielded wires for occasions with strong interference can also be produced according to the needs of the usage environment

　　型号 model

　　额定电压V

Rated voltage V

　　芯数

Number of cores

　标称截面mm2

Nominal cross-section

　　300/500

　　0.5-95

　　ZR-RV

　　300/500

　　0.5-95
