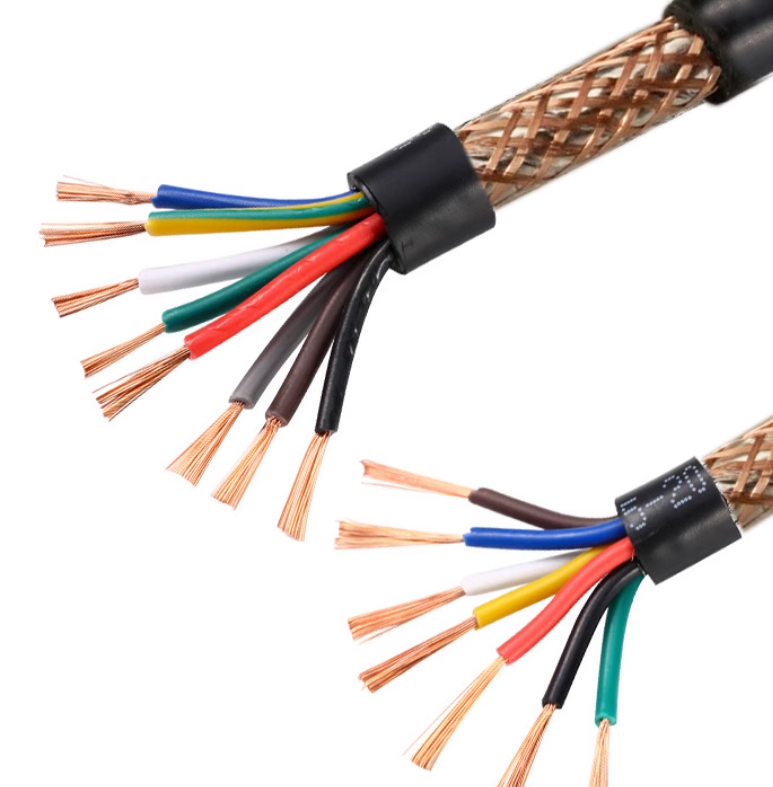

产品名称：KVVP shielded control cable
浏览：
添加时间：2024-04-16 16:47:06
推荐度：

介绍：

产品用途

Product Usage

适用于额定电压U0/U 450/750V 及以下控制、监视回路及保护线路的连接线，主要用于防电磁波干扰、需要有屏蔽的场所。

Suitable for connection wires of control, monitoring circuits and protection circuits with rated voltage U0/U 450/750V and below, mainly used in places where electromagnetic interference is prevented and shielding is required.

使用条件

Usage conditions

电缆导体的长期允许工作温度为70℃，耐高温型屏蔽电缆***高可达300度。

The long-term allowable working temperature for cable conductors is 70 ℃, and high-temperature resistant shielded cables can reach up to 300 ℃.

电缆的敷设安装允许弯曲半径：

The allowable bending radius for cable laying and installation is:

1、无铠装层的电缆，应不小于电缆外径的6倍。

1. Cable without armor layer should not be less than 6 times the outer diameter of the cable.

2、有铠装或铜带屏蔽结构的电缆，应不小于电缆外径的12倍。

2. Cables with armored or copper tape shielding structures should not be less than 12 times the outer diameter of the cable.

3、有屏蔽层结构的软电缆，应不小于电缆外径6倍。

3. Soft cables with a shielding layer structure should not be less than 6 times the outer diameter of the cable.

使用范围

Scope of use

1.聚氯乙烯绝缘聚氯乙烯护套屏蔽控制电缆

1. PVC insulated PVC sheathed shielded control cable

型号名称使用范围

Scope of use of model name

KVVP 铜芯聚氯乙烯绝缘和护套编织屏蔽控制电缆敷设在室内、电缆沟、管道等要求有屏蔽的固定场合

KVVP copper core polyvinyl chloride insulated and sheathed braided shielded control cables are laid in indoor, cable trenches, pipelines and other fixed environments that require shielding

KVVRP 铜芯聚氯乙烯绝缘和护套编织屏蔽控制软电缆敷设在室内移动要求柔软、屏蔽等场合

KVVRP copper core polyvinyl chloride insulated and sheathed braided shielded control soft cables are laid in indoor mobile environments that require flexibility and shielding

KVVP2 铜芯聚氯乙烯绝缘和护套铜带屏蔽控制电缆敷设在室内、电缆沟、管道等要求有屏蔽的固定场合

KVVP2 copper core polyvinyl chloride insulated and sheathed copper tape shielded control cables are laid in indoor, cable trenches, pipelines and other fixed environments that require shielding

KVVP3 铜芯聚氯乙烯绝缘和护套铝塑复合带屏蔽控制电缆敷设在室内、电缆沟、管道等要求有屏蔽的固定场合

KVVP3 copper core polyvinyl chloride insulated and sheathed aluminum-plastic composite tape shielded control cables are laid in indoor, cable trenches, pipelines and other fixed environments that require shielding

KVVP2-22 铜芯聚氯乙烯绝缘和护套钢带铠装控制电缆敷设在室内、电缆沟、管道、直埋等能承受较大机械外力等固定场合

KVVP2-22 copper core polyvinyl chloride insulated and sheathed steel strip armored control cables are laid in fixed environments such as indoor, cable trenches, pipelines, and direct burial that can withstand large mechanical external forces
