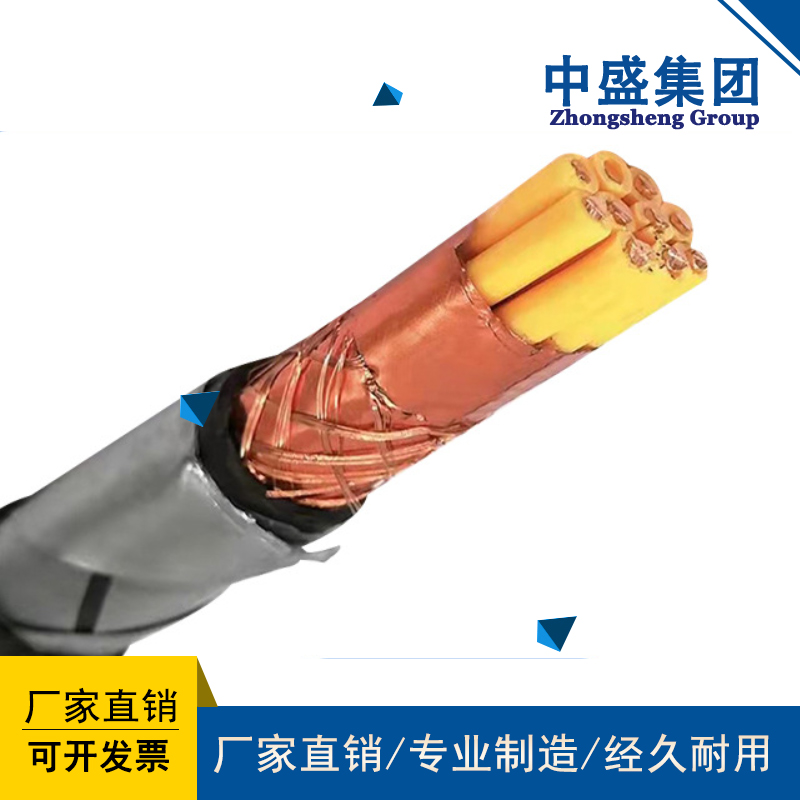

产品名称：KVVP2 copper tape shielded control cable
浏览：
添加时间：2024-04-16 17:29:41
推荐度：

介绍：

适用范围聚氯乙烯绝缘聚氯乙烯护套控制电缆适用于额定电压450/750V及以下或0.6/1kV及以下控制、信号、保护及测量系统接线之用。

Applicable scope: PVC insulated PVC sheathed control cables are suitable for wiring control, signal, protection, and measurement systems with rated voltages of 450/750V and below or 0.6/1kV and below.

使用特性

Usage characteristics

工频额定电压Uo/U为450/750V或0.6/1kV。

The rated power frequency voltage Uo/U is 450/750V or 0.6/1kV.

电缆导体的允许长期*高工作温度为70℃。

The allowable long-term high working temperature for cable conductors is 70 ℃.

电缆敷设时环境温度应不低于0℃，若环境温低于0℃时，应对电缆进行预热。

The ambient temperature during cable laying should not be lower than 0 ℃. If the ambient temperature is lower than 0 ℃, the cable should be preheated.

电缆的允许弯曲半径如下：

The allowable bending radius of the cable is as follows:

无铠装电缆，应不低于电缆外径的6倍；

Unarmored cables should not be less than 6 times the outer diameter of the cable;

铠装或铜带屏蔽电缆，应不低于电缆外径的12倍；

Armored or copper tape shielded cables should not be less than 12 times the outer diameter of the cable;

屏蔽软电缆，应不低于电缆外径的6倍。

Shielded flexible cables should not be less than 6 times the outer diameter of the cable.

型号产品名称电压V 芯数截面 mm2 主要适用范围

Model Product Name Voltage V Number of Cores Cross Section mm2 Main Applicable Scope

KVV 阻铜芯聚氯乙烯绝缘聚氯乙烯护套kvv电缆 450/750 4-37 0.75-10 敷设在室内，电缆沟、管道等固定场合

KVV copper core PVC insulated PVC sheathed KVV cable 450/750 4-37 0.75-10 laid indoors in fixed locations such as cable trenches and pipelines

KVV22 铜芯聚氯乙烯绝缘聚氯乙烯护套钢带铠装kvv22电缆 450/750 4-37 0.75-10 敷设在室内，电缆沟、管道直埋等能承受较大机械外力的固定场合

KVV22 copper core PVC insulated PVC sheathed steel tape armored KVv22 cable 450/750 4-37 0.75-10 is laid indoors in fixed situations such as cable trenches and direct burial of pipelines that can withstand large mechanical external forces

KVVP 阻燃铜芯聚氯乙烯绝缘聚氯乙烯护套kvvp电缆 450/750 4-37 0.75-10 敷设在室内，电缆沟、管道等要求屏蔽的固定场合

KVVP flame-retardant copper core PVC insulated PVC sheathed KVVP cable 450/750 4-37 0.75-10 is laid indoors in fixed environments such as cable trenches and pipelines that require shielding

KVVR 铜芯聚氯乙烯绝缘聚氯乙烯护套控制软电缆 450/750 4-37 0.75-10 敷设在室内，有移动要求的场合

KVVR copper core PVC insulated PVC sheathed control flexible cable 450/750 4-37 0.75-10 laid indoors in places with mobility requirements

KVVRP 铜芯聚氯乙烯绝缘聚氯乙烯护套编织屏蔽控制软电缆 450/750 4-37 0.75-10 敷设在室内，有移动屏蔽要求的场合

KVVRP copper core polyvinyl chloride insulated polyvinyl chloride sheathed braided shielded control flexible cable 450/750 4-37 0.75-10 laid indoors, in situations with mobile shielding requirements

ZRKVV 阻燃铜芯聚氯乙烯绝缘聚氯乙烯护套zrkvv电缆 450/750 4-37 0.75-10 敷设在室内，电缆沟、管道等要求阻燃的固定场合

ZRKVV flame-retardant copper core PVC insulated PVC sheathed ZRKVV cable 450/750 4-37 0.75-10 is laid indoors in fixed environments such as cable trenches and pipelines that require flame retardancy

ZRKVV22 铜芯聚氯乙烯绝缘聚氯乙烯护套编织钢带铠装zrkvv22电缆 450/750 4-37 0.75-10 敷设在室内，电缆沟、管道直埋等能承受较大机械外力有阻燃要求的固定场合

ZRKVV22 copper core PVC insulated PVC sheathed woven steel strip armored Zrkvv22 cable 450/750 4-37 0.75-10 is laid indoors, in fixed situations such as cable trenches, direct burial of pipelines, etc. that can withstand large mechanical external forces and have flame retardant requirements

ZRKVVP 铜芯聚氯乙烯绝缘聚氯乙烯护套编织屏蔽zrkvvp电缆 450/750 4-37 0.75-10 敷设在室内，电缆沟、管道等要求屏蔽、阻燃的固定场合

ZRKVVP copper core PVC insulated PVC sheathed woven shielded Zrkvvp cable 450/750 4-37 0.75-10 is laid indoors in fixed environments such as cable trenches and pipelines that require shielding and flame retardancy

ZRKVVR 铜芯聚氯乙烯绝缘聚氯乙烯护套编织zrkvvr电缆 450/750 4-37 0.75-10 敷设在室内，有移动和阻燃要求的场合。

ZRKVVR copper core PVC insulated PVC sheathed woven Zrkvvr cable 450/750 4-37 0.75-10 is laid indoors in places with mobility and flame retardant requirements.

ZRKVVRP 铜芯聚氯乙烯绝缘聚氯乙烯护套编织屏蔽zrkvvrp电缆 450/750 4-37 0.75-10 敷设在室内，有移动屏蔽和阻燃要求的场合。

ZRKVVRP copper core PVC insulated PVC sheathed woven shielded Zrkvvrp cable 450/750 4-37 0.75-10 is laid indoors in environments with mobile shielding and flame retardant requirements.
