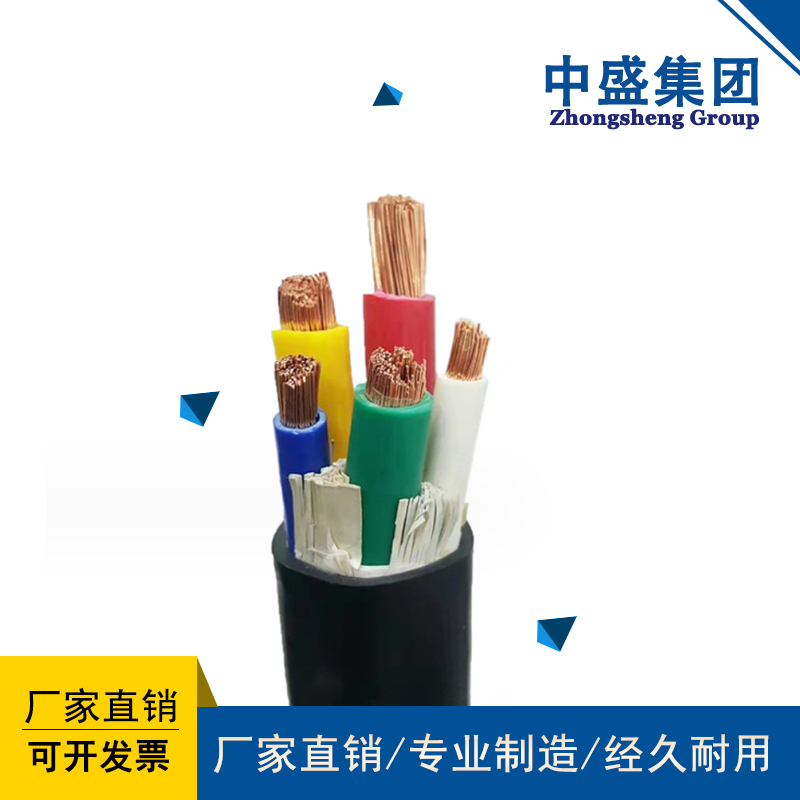

产品名称：Frequency converter cable BPYJVP
浏览：
添加时间：2024-04-17 13:53:22
推荐度：

介绍：

产品用途

Product Usage

变频电缆主要用于变频电源和变频电机之间连接用的电缆,以及额定电压1KV及以下的输配电线路中,作输送电能用.尤其适用于造纸、冶金、金属加工、矿山、铁路和食品加工等行业。

Variable frequency cables are mainly used for connecting variable frequency power supplies and variable frequency motors, as well as in transmission and distribution lines with a rated voltage of 1KV and below, for transmitting electrical energy. They are particularly suitable for industries such as papermaking, metallurgy, metal processing, mining, railways, and food processing.

使用条件

Usage conditions

1、额定电压U0/U：0.6/1KV.

1. Rated voltage U0/U: 0.6/1KV

2、电缆导体长期允许***高温度为90度,短路时***高温度250度

2. The maximum allowable long-term temperature for cable conductors is 90 degrees Celsius, and the maximum temperature during short circuits is 250 degrees Celsius

3、安装敷设环境温度不低于0度,固定敷设时环境温度不低于-10度.

3. The installation and laying environment temperature shall not be lower than 0 degrees, and the fixed laying environment temperature shall not be lower than -10 degrees

4、电缆允许***小弯曲半径不小于15D(D-电缆外径,mm)

4. The minimum allowable bending radius of the cable shall not be less than 15D (D-cable outer diameter, mm)

产品性能

Product performance

1、 BRYJVP12R-TK、ZRBPYJVP12R-TK型设计采用符合GB/T3956-1997规定的第5类软绞合铜导体。

1. The BRYJVP12R-TK and ZRBPYJVP12R-TK designs use Class 5 soft stranded copper conductors in accordance with GB/T3956-1997.

2、交联聚乙烯绝缘、耐温耐候性好。

2. Crosslinked polyethylene insulation, good temperature and weather resistance.

3、低传输阻抗，电磁兼容性好。

3. Low transmission impedance, good electromagnetic compatibility.

4、低工作电容

4. Low working capacitance

5、良好的抗干扰和低辐射性能。

5. Good anti-interference and low radiation performance.

6、对称的三芯电缆结构设计，具有比四芯电缆更好的传输性能。

6. The symmetrical three core cable structure design has better transmission performance than four core cables.

型号名称

Model name

BPYJVTP2-TK 铜芯交联聚乙烯绝缘聚氯乙烯护套铜丝缠绕铜带绕包屏蔽变频器用回路电缆。

BPYJVTP2-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper wire wrapped copper tape wrapped shielded frequency converter circuit cable.

ZRBPYJVTP2-TK铜芯交联聚乙烯绝缘阻燃聚氯乙烯护套铜丝缠绕铜带绕包屏蔽变频器用回路电缆。

ZRBPYJVTP2-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper wire wrapped copper tape wrapped shielded frequency converter circuit cable.

BPYJVP12-TK铜芯交联聚乙烯绝缘聚氯乙烯护套铜带绕包铜丝编织双重屏蔽变频器用回路电缆。

BPYJVP12-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped with copper wire braided double shielded frequency converter circuit cable.

ZRBPYJVP12-TK铜芯交联聚乙烯绝缘阻燃聚氯乙烯护套铜带绕包铜丝编织双重屏蔽变频器用回路电缆。

ZRBPYJVP12-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper tape wrapped with copper wire braided double shielded frequency converter circuit cable.

BPYJVPX12R-TK铜芯交联聚乙烯绝缘聚氯乙烯护套铜带绕包镀锡铜丝编织双重屏蔽变频器用回路电缆。

BPYJVPX12R-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped with tin plated copper wire braided double shielded frequency converter circuit cable.

ZRBPYJVPX12R-TK铜芯交联聚乙烯绝缘阻燃聚氯乙烯护套铜带绕包镀锡铜丝编织双重屏蔽变频器用回路电缆。

ZRBPYJVPX12R-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper tape wrapped with tin plated copper wire braided double shielded frequency converter circuit cable.
