产品名称：High voltage drum round cable高压卷筒电缆YJGCFRP
浏览：
添加时间：2024-06-03 15:37:15
推荐度：

介绍：

产品特点及用途

Product features and uses

　　本产品为高压卷筒圆电缆适用于交流额定电压6/10KV料场、码头、矿山、港口的堆取料机及港机上变压器连接用高压圆电缆，导体采用镀锡软芯结构，导体绝缘采用进口硅橡胶绝缘材料，电缆具有耐高温、耐寒、耐油、耐腐蚀、防油、耐磨等特性。产品广泛用于冶金、矿山、电力、石油化、船舶工业、港口及移动设备制造等行业。

This product is a high-voltage drum round cable suitable for connecting the stacker reclaimer and transformer on the AC rated voltage of 6/10KV material yards, docks, mines, and ports. The conductor adopts a tinned soft core structure, and the insulation of the conductor uses imported silicone rubber insulation material. The cable has characteristics such as high temperature resistance, cold resistance, oil resistance, corrosion resistance, oil resistance, and wear resistance. The product is widely used in industries such as metallurgy, mining, electricity, petrochemicals, shipbuilding, ports, and mobile equipment manufacturing.

使用特性：

Usage characteristics:

1、额定电压：UO/U为0.6/1KV；

1. Rated voltage: UO/U is 0.6/1KV;

2、电缆允许工作温度范围：硅橡胶绝缘-60℃— +180℃；氟塑料绝缘-60℃－ +200℃；

2. The allowable working temperature range of cables: silicone rubber insulation -60 ℃ -+180 ℃; Fluoroplastic insulation -60 ℃ -+200 ℃;

3、电缆短路时（***长持续间不超过5S）电缆导体的***高温度不超过250℃；

3. When the cable is short circuited (with a maximum duration of 5 seconds), the maximum temperature of the cable conductor shall not exceed 250 ℃;

4、电缆敷设温度应不低于- 20℃；

4. The cable laying temperature should not be lower than -20 ℃;

5、电缆***小弯曲半径为电缆小边长度的10倍；

5. The minimum bending radius of the cable is 10 times the length of the smaller side of the cable;

电缆型号及名称

Cable model and name

型号名称

Model name

YGCB 铜芯硅橡胶绝缘及护套扁电缆

YGCB copper core silicone rubber insulated and sheathed flat cable

YGCPB 铜芯硅橡胶绝缘及护套编织屏蔽扁电缆

YGCPB copper core silicone rubber insulated and sheathed braided shielded flat cable

YGGB 铜芯硅橡胶绝缘及护套扁平电缆

YGGB copper core silicone rubber insulated and sheathed flat cable

YF46GRB 铜芯氟塑料绝缘硅橡胶护套扁平软电缆

YF46GRB copper core fluoroplastic insulated silicone rubber sheathed flat flexible cable

YFGRPB 铜芯氟塑料绝缘硅橡胶护套编织屏蔽软扁电缆

YFGRPB copper core fluoroplastic insulated silicone rubber sheathed braided shielded soft flat cable

YFGB 铜芯氟塑料绝缘硅橡胶护套扁平电缆

YFGB copper core fluoroplastic insulated silicone rubber sheathed flat cable

HGGB 铜芯硅橡胶绝缘硅橡胶护套扁平电缆

HGGB copper core silicone rubber insulated silicone rubber sheathed flat cable

YGGB-J 铜芯硅橡胶绝缘及护套加钢丝加强芯硅橡胶扁电缆

YGGB-J Copper Core Silicone Rubber Insulation and Sheath with Steel Wire Reinforced Core Silicone Rubber Flat Cable

KGGB 铜芯硅橡胶绝缘及护套扁平电缆

KGGB copper core silicone rubber insulated and sheathed flat cable

KGGPB 铜芯硅橡胶绝缘及护套编织屏蔽扁平电缆

KGGPB copper core silicone rubber insulated and sheathed braided shielded flat cable

KFGB 铜芯氟塑料绝缘硅橡胶护套扁平电缆

KFGB copper core fluoroplastic insulated silicone rubber sheathed flat cable

KFGPB 铜芯氟塑料绝缘硅橡胶护套编织屏蔽扁平电缆

KFGPB copper core fluoroplastic insulated silicone rubber sheathed braided shielded flat cable

KGVPB 铜芯硅橡胶绝缘丁硅聚氯乙烯护套编织屏蔽扁平电缆

KGVPB copper core silicone rubber insulated butadiene silicone polyvinyl chloride sheathed braided shielded flat cable

KGGRPB 铜芯硅橡胶绝缘及护套编织屏蔽软扁平电缆

KGGRPB copper core silicone rubber insulated and sheathed braided shielded soft flat cable

KF46GPB 铜芯氟塑料绝缘硅橡胶护套编织屏蔽扁平电缆

KF46GPB copper core fluoroplastic insulated silicone rubber sheathed braided shielded flat cable

KFGRPB 铜芯氟塑料绝缘硅橡胶护套编织屏蔽扁平电缆

KFGRPB copper core fluoroplastic insulated silicone rubber sheathed braided shielded flat cable

KGGRB 铜芯硅橡胶绝缘及护套扁平电缆

KGGRB copper core silicone rubber insulated and sheathed flat cable

备注：阻燃电缆型号前加ZR，导体线芯中铜丝可以采用镀锡。

Note: Add ZR before the flame-retardant cable model, and the copper wire in the conductor core can be tinned.

上一篇：YFFBG卷筒扁电缆

下一篇：YKVFRG,YKVFRPG移动设备卷筒用控制软电缆

卷筒用移动控制扁平电缆YKVFPBG/Y

卷筒用高压扁平电缆YJGCFPB 6-1…

卷筒圆电缆线芯加钢丝ZC-C-ASGKF

卷筒用通讯扁电缆YKVFBG移动设备(堆

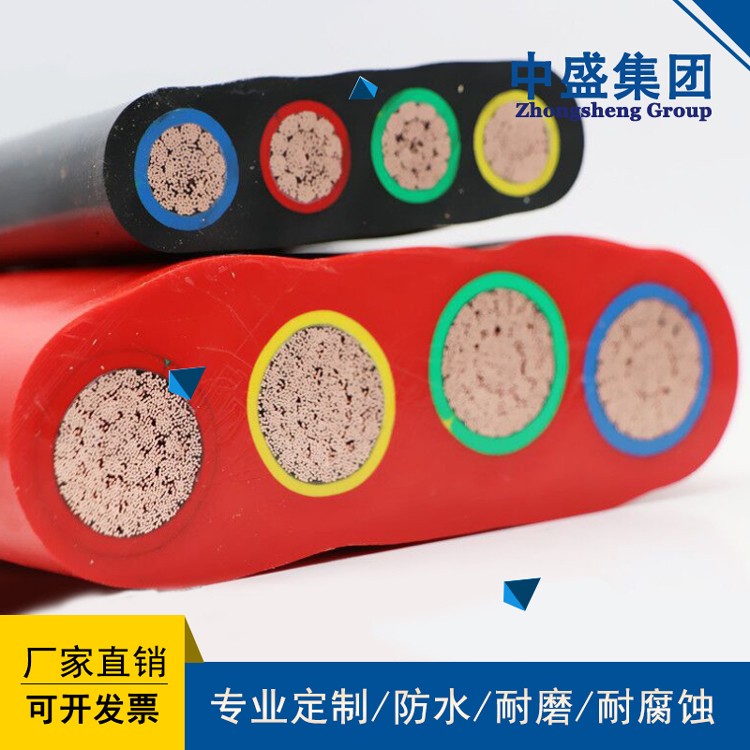

安徽高压扁电缆卷筒电缆YJGCFPB-6

High voltage drum ro…

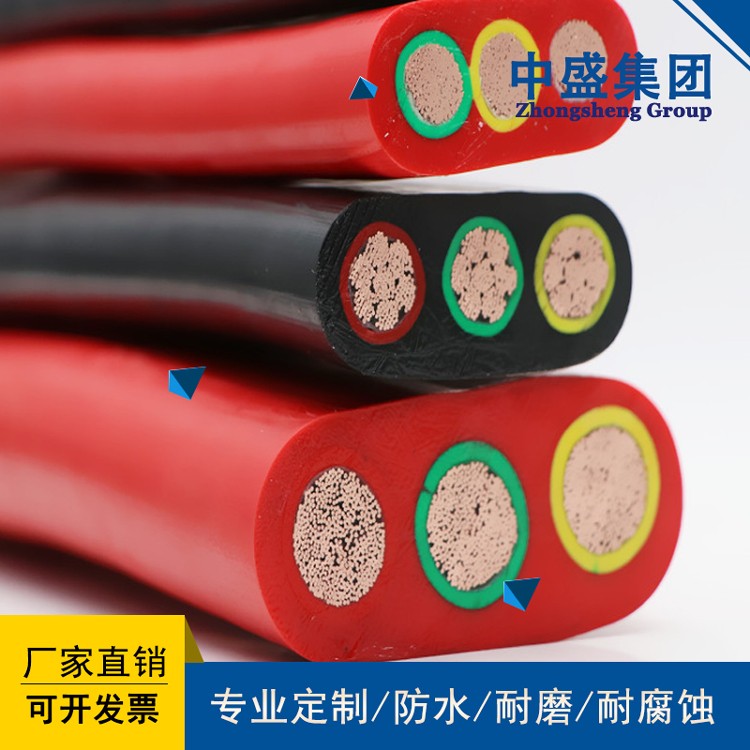

高压扁平电缆YGKFB移动设备(堆取料机
