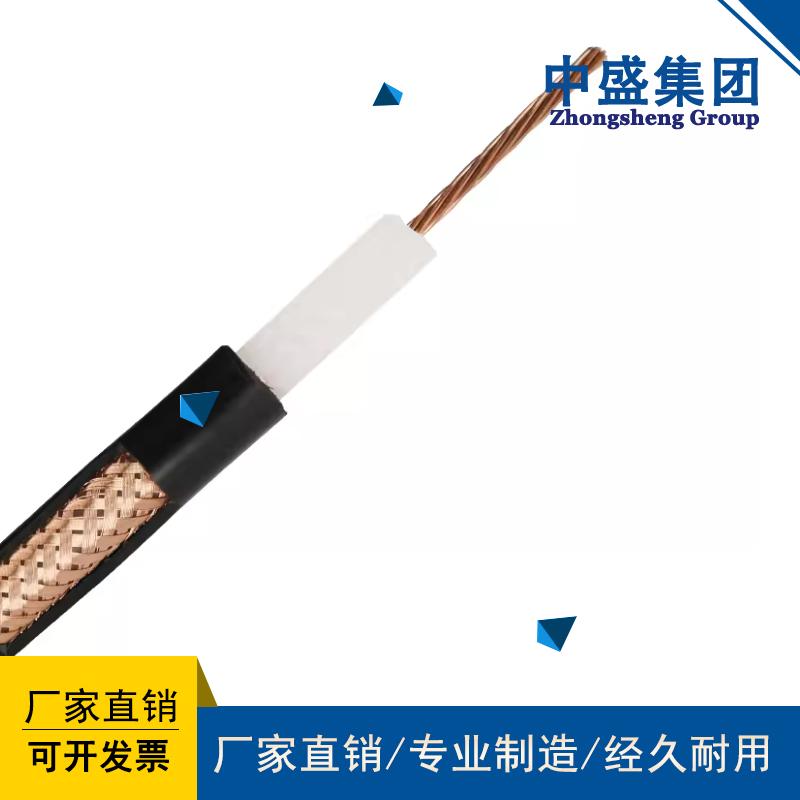

产品名称：High temperature video cableSFF-75-2
浏览：
添加时间：2024-06-21 09:40:53
推荐度：

介绍：

应用于高频传输，特别是发报机，接收器，电脑，无线电设备，射频信号传送。同轴电缆保证各式机械、热力、电子设备中能达到200℃、GHz层次的应用。

Applied to high-frequency transmission, especially transmitters, receivers, computers, radio equipment, and RF signal transmission. Coaxial cables ensure applications in various mechanical, thermal, and electronic devices that can reach up to 200 ℃ and GHz levels.

同轴电缆产品Coaxial cable products

型号model	*内导体Inner conductor mm	绝缘外径Insulation outer diameter mm	*编织线径Braided wire diameter mm	护套外径Outer diameter of sheath mm	阻抗impedance Ω	衰减attenuation dB/m		电容capacitance pF/m	速比speed ratio ％
型号model	*内导体Inner conductor mm	绝缘外径Insulation outer diameter mm	*编织线径Braided wire diameter mm	护套外径Outer diameter of sheath mm	阻抗impedance Ω	400MHz	1000MHz	电容capacitance pF/m	速比speed ratio ％
SFF-50-1-1	1×0.30	0.90	0.10	1.80	50	1.10	1.70	100	70
SFF-50-1-2	7×0.10	0.90	0.10	1.80		1.17	1.83
SFF-50-1.5-1	1×0.51	1.5	0.10	2.4		0.66	1.04
SFF-50-1.5-2	7×0.18	1.5	0.10	2.4		0.71	1.12
SFF-50-2-1	1×0.73	2.2	0.10	3.3		0.39	0.68
SFF-50-2-2	7×0.26	2.2	0.10	3.3		0.42	0.73
SFF-50-3-1	1×0.94	2.95	0.12	4.2		0.31	0.52
SFF-50-3-2	7×0.34	2.95	0.12	4.2		0.33	0.56
SFF-50-4-1	1.16	3.7	0.12	4.8		0.25	0.40
SFF-50-4-2	7×0.41	3.7	0.12	4.8		0.27	0.43
SFF-50-5-1	1.50	4.8	0.15	6.0		0.195	0.305
SFF-50-5-2	19×0.32	4.8	0.15	6.0		0.21	0.33
SFF-75-2-1	1×0.39	2.2	0.10	3.3	75	0.38	0.63	65
SFF-75-3-1	1×0.52	2.95	0.12	4.2		0.31	0.49
SFF-75-4-1	1×0.65	3.7	0.12	4.8		0.24	0.40
SFF-75-5-1	1×0.83	4.8	0.15	6.0		0.20	0.31
* 内导体及编织线均为镀银铜线
