产品名称：High temperature cable KFFP
浏览：
添加时间：2024-06-21 10:33:07
推荐度：

介绍：

KFFP高温电缆使用性能适用于冶金、石油、化工等多种行业在135℃、150℃、200℃、260℃温度下的电器、自动化系统的信号传输及检测仪表作连接线，可在高温、低温酸碱油水及腐蚀性气体与恶劣环境中使用。

KFFP high-temperature cables are suitable for various industries such as metallurgy, petroleum, and chemical engineering, and can be used as connecting wires for signal transmission and detection instruments in electrical and automation systems at temperatures of 135 ℃, 150 ℃, 200 ℃, and 260 ℃. They can be used in high temperature, low temperature acidic, alkaline, oil-water, corrosive gases, and harsh environments.

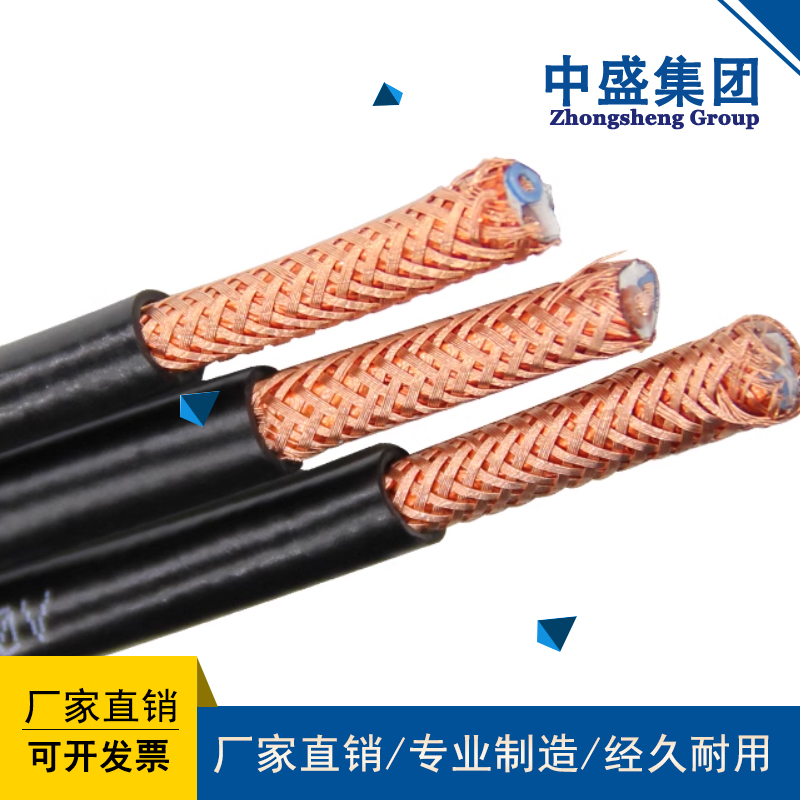

KFFP高温电缆电缆结构：

KFFP high-temperature cable structure:

导体：多股裸铜丝绞合(镀锡或镀银铜丝可选)，符合GB/T3956-2008及IEC 60228：2004第5类。

Conductor: Stranded bare copper wire (tin or silver plated copper wire optional), in accordance with GB/T3956-2008 and IEC 60228:2004 Class 5.

绝缘：阻燃型聚全氟乙丙烯/阻燃型聚四氟乙烯/阻燃型其它氟塑料。

Insulation: Flame retardant perfluoroethylene propylene/flame retardant polytetrafluoroethylene/flame retardant other fluoroplastics.

芯线：芯线绞合成缆，芯线颜色符合GB/T 5023.1及JB/T 8734.1中的优先色谱选用彩色或编码芯线，3芯以上带黄绿双色线（可选）

Core wire: The core wire is twisted into a cable, and the color of the core wire conforms to the preferred color spectrum in GB/T 5023.1 and JB/T 8734.1. Color or coding core wires are selected, and more than 3 cores are equipped with yellow and green dual color wires (optional)

内衬：采用挤包或者绕包非吸湿性材料；挤包的内衬层应不粘连绝缘线芯，绕包的内衬层可采用双层或多层重叠绕包。

Inner lining: using extruded or wrapped non hygroscopic materials; The inner layer of the extruded package should not adhere to the insulation wire core, and the inner layer of the wrapped package can be wrapped in double or multiple overlapping layers.

屏蔽：采用铜丝编织屏蔽/镀锡铜丝编织屏蔽符合TICW/03-2009之要求

Shielding: Copper wire braided shielding/tin plated copper wire braided shielding meets the requirements of TICW/03-2009

护套：阻燃型聚全氟乙丙烯/阻燃型聚四氟乙烯/阻燃型其它氟塑料

Sheath: Flame retardant perfluoroethylene propylene/flame retardant polytetrafluoroethylene/flame retardant other fluoroplastics

护套颜色：黑色或红色，可根据客户需要定制各种颜色

Sheath color: black or red, various colors can be customized according to customer needs

KFFP高温电缆产品特点：

KFFP High Temperature Cable Product Features:

1．交流额定电压：450/750V

1. AC rated voltage: 450/750V

2．工作温度：聚全氟乙丙烯(F46)绝缘不超过200℃；可溶性聚四氟乙烯(PFA)绝缘不超过260℃。

2. Working temperature: Polyfluoroethylene propylene (F46) insulation does not exceed 200 ℃; Soluble polytetrafluoroethylene (PFA) insulation shall not exceed 260 ℃.

3．环境温度：聚氯乙烯护套：固定敷设-40℃，非固定敷设-15℃；氟塑料及硅橡胶护套：固定敷设-60℃，非固定敷设-20℃。

3. Environmental temperature: PVC sheath: fixed laying -40 ℃, non fixed laying -15 ℃; Fluoroplastic and silicone rubber sheaths: Fixed laying -60 ℃, non fixed laying -20 ℃.

4．电缆安装敷设温度应不低于0℃(氟塑料、硅橡胶和电缆不低于-25℃)。

4. The installation and laying temperature of cables should not be lower than 0 ℃ (fluoroplastics, silicone rubber, and cables should not be lower than -25 ℃).

5．电缆允许弯曲半径：非铠装电缆zui小为电缆外径的6倍。

5. The allowable bending radius of the cable is 6 times the outer diameter of the cable for non armored cables.

铜带屏蔽或钢带铠装电缆zui小为电缆外径的12倍。

Copper tape shielded or steel tape armored cables have a minimum diameter of 12 times the outer diameter of the cable.

氟塑料绝缘和护套电缆为电缆外径的8倍。

Fluoroplastic insulated and sheathed cables are 8 times the outer diameter of the cable.
