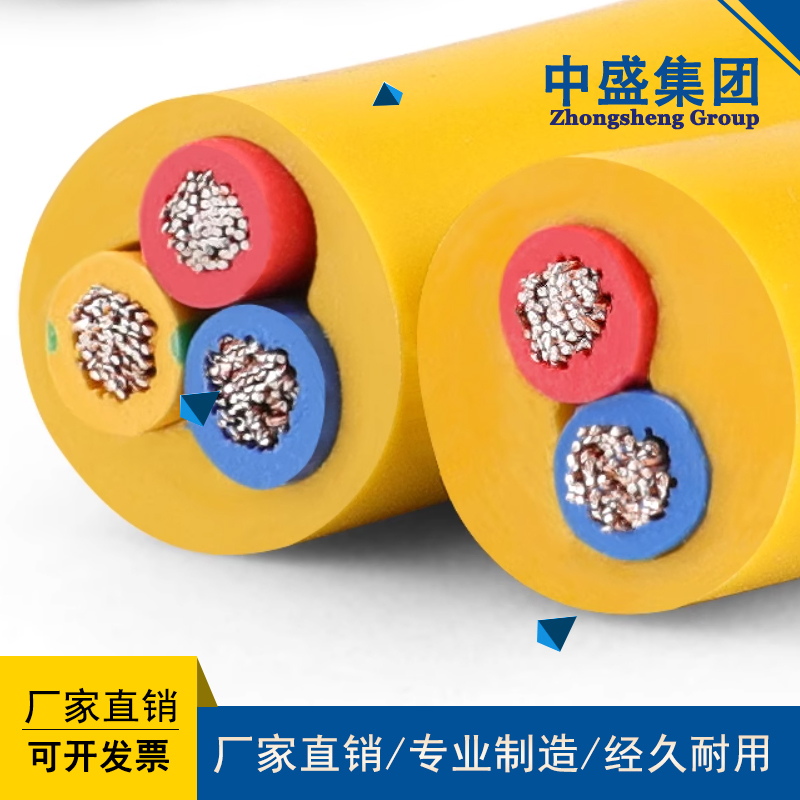

产品名称：Oil resistant power flexible cable RVVY
浏览：
添加时间：2024-06-27 09:20:38
推荐度：

介绍：

耐油电缆RVVY适用于冶金、石油、化工以及发电厂等工矿企业，在高温条件下和恶劣环境中（如酸、碱、油水低温条件）作为各种电器、仪表及自动装

Oil resistant cable RVVY is suitable for industrial and mining enterprises such as metallurgy, petroleum, chemical, and power plants. It is used as various electrical appliances, instruments, and automatic equipment in high temperature conditions and harsh environments (such as acid, alkali, and oil-water low temperature conditions)

接线，供交流额定电压450/750伏及以下控制、及保护电路行装场合下使用。

Wiring, for use in control and protection circuit installations with rated AC voltage of 450/750 volts and below.

耐油电缆使用于需要长时间接触油污、酸碱或直接浸泡在油里面使用的环境中，即使24小时浸泡在油里面或酸碱浓度为80%以下的环境中，电缆的柔性

Oil resistant cables are used in environments that require long-term contact with oil, acid or alkali, or direct immersion in oil. Even if immersed in oil for 24 hours or in environments with an acid or alkali concentration of less than 80%, the flexibility of the cable is improved

会改变，可以随机器进行收展或移动使用。

It will change and can be extended or moved with the machine for use.

耐油电缆RVVY的相关参数：耐油电缆导体：多股超细精绞无氧铜丝，符合VDE0295CLASS 6标准；耐油电缆绝缘：特殊混合PVC绝缘；耐油电缆颜色

The relevant parameters of oil resistant cable RVVY: Oil resistant cable conductor: Multi strand ultra-fine twisted oxygen free copper wire, in accordance with VDE0295CLASS 6 standard; Oil resistant cable insulation: special mixed PVC insulation; Color of oil resistant cables

≤0.5mm 颜色表示，棕、黑、蓝、紫、粉红、橙，≥0.5mm 黑色数字白色号码编号，3芯以上带有黄绿接地线（黄绿可选）分色；耐油电缆护套：特殊

≤ 0.5mm color indicates brown, black, blue, purple, pink, orange, ≥ 0.5mm black numbers with white numbers, with yellow and green grounding wires (yellow and green optional) for 3-core and above color separation; Oil resistant cable sheath: special

PVC护套，强力挤压式生产。黑色或灰色；耐油电缆额定电压：300/500V；测试电压：2500V；使用温度范围：耐油电缆固定安装： -40°C 至 +70°C

PVC sheath, produced by strong extrusion. Black or gray; Rated voltage of oil resistant cable: 300/500V; Test voltage: 2500V; Temperature range: Oil resistant cable fixed installation: -40 ° C to+70 ° C

缆移动安装： - 5°C 至 +70°C；耐油电缆小弯曲半径：耐油电缆固定安装：4×电缆外径；耐油电缆移动安装：15×电缆外径。

Cable mobile installation: -5 ° C to+70 ° C; Oil resistant cable small bending radius: Oil resistant cable fixed installation: 4 x cable outer diameter; Oil resistant cable mobile installation: 15 x cable outer diameter.

耐油电缆RVVY为弱信号测量电缆，适用于易产生静电、燃油池等特殊工作环境，具有防静电、耐油、抗拉伸，抗弯折特性，电缆小弯曲半径不小于电缆

Oil resistant cable RVVY is a weak signal measurement cable suitable for special working environments such as static electricity and fuel pools. It has anti-static, oil resistant, tensile resistant, and bending resistant characteristics. The small bending radius of the cable is not less than that of the cable

倍，电缆大承受拉力200kg，电缆卷绕弯曲收放次数3000次以上。

Multiple times, the cable can withstand a tensile force of 200kg and can be wound, bent, and retracted more than 3000 times.
