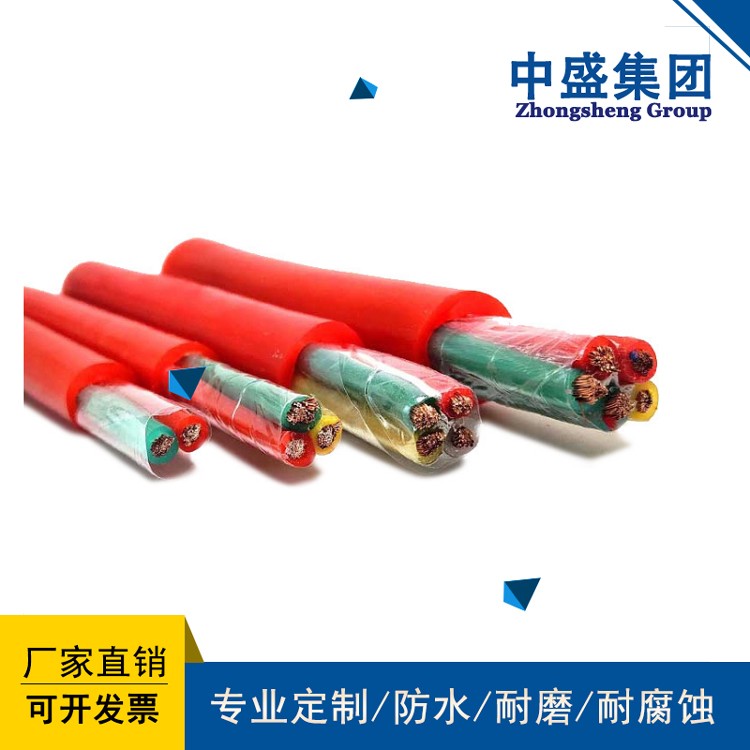

产品名称：Silicone rubber high-temperature cableYGCF46R
浏览：
添加时间：2024-06-28 14:13:31
推荐度：

介绍：

本产品适用于交流额定电压450/750V（YGC额定电压为0.6/1KV）及以下移动或固定敷设用电器仪表连接线或信号传输，电缆具有较好的热稳定性，能在高温、低温、腐蚀性中保持良好的电性能和柔软性，适合冶金、电力、石化等行业具有移动耐温等特殊要求场合使用。

This product is suitable for mobile or fixed electrical instrument connection lines or signal transmission with AC rated voltage of 450/750V (YGC rated voltage of 0.6/1KV) and below. The cable has good thermal stability and can maintain good electrical performance and flexibility in high temperature, low temperature, and corrosion. It is suitable for use in industries such as metallurgy, power, and petrochemical with special requirements for mobile temperature resistance.

使用特性 1．交流额定电压：U0/U 450/750

Usage characteristics: 1. AC rated voltage: U0/U 450/750

1．交流额定电压：U0/U 450/750KV（YGC额定电压为0.6/1KV）

1. AC rated voltage: U0/U 450/750KV (YGC rated voltage is 0.6/1KV)

　　***高工作温度：180℃ http://www.anhdl.com

Maximum working temperature: 180 ℃ http://www.anhdl.com

2． ***低环境温度：硅橡胶护套：固定敷设-60℃，非固定敷设-20℃

2. Minimum ambient temperature: silicone rubber sheath: fixed laying -60 ℃, non fixed laying -20 ℃

3．电缆安装敷设温度应不低于-20℃。

3. The installation and laying temperature of cables should not be lower than -20 ℃.

4．电缆允许弯曲半径：非铠装电缆***小为电缆外径的6倍

4. Permissible bending radius of cables: The minimum allowable bending radius for non armored cables is 6 times the outer diameter of the cable

该电缆具有良好的柔软度、防水、耐腐蚀、耐压等优点。

This cable has advantages such as good flexibility, waterproofing, corrosion resistance, and pressure resistance.

2、工作温度：序号1～4 -60～+200℃

2. Working temperature: serial number 1-4-60~+200 ℃

序号5～14 -15～+105℃

Number 5-14-15+105 ℃

5、绝缘电阻（20℃）不低于50MΩ·km

5. Insulation resistance (20 ℃) not less than 50M Ω· km

6、导体线芯直流电阻（20℃）符合GB3956-97规定

6. The DC resistance of the conductor core (20 ℃) complies with the provisions of GB3956-97

7、无铠装电缆允许弯曲半径不小于电缆外径的6倍，铠装电缆允许弯曲半径不小于电缆外径的12倍。

7. Unarmored cables are allowed to have a bending radius not less than 6 times the outer diameter of the cable, while armored cables are allowed to have a bending radius not less than 12 times the outer diameter of the cable.

8、***低安装敷设温度：序号1～4 -45℃

8. Minimum installation and laying temperature: serial number 1-4-45 ℃
