产品名称：Flame retardant computer cable ZR-BAYJYP3
浏览：
添加时间：2024-07-05 08:51:49
推荐度：

介绍：

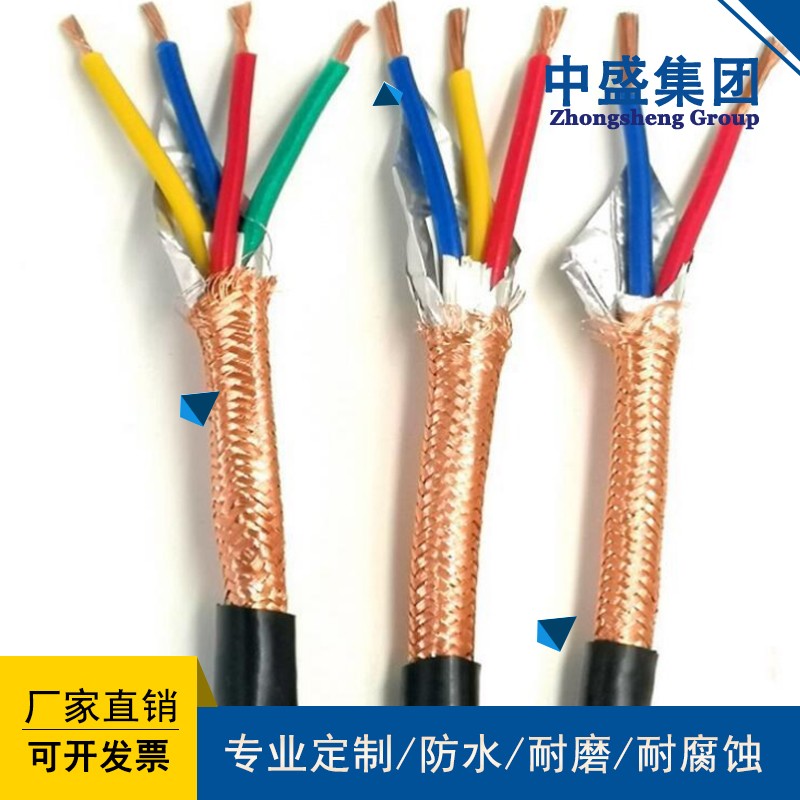

ZR-BAYJYP3电缆

ZR-BAYJYP3 cable

计算机电缆用途：本产品适用于额定电压30/500v及以下防干扰性能要求较高的电子计算机、检测仪器、仪表的连接。

Computer cable usage: This product is suitable for connecting electronic computers, testing instruments, and instruments with high anti-interference performance requirements for rated voltage of 30/500V and below.

使用条件：

Usage conditions:

one

电缆导体的长期工作温度：聚氯乙烯有70℃、105℃两种；聚乙烯绝缘为70℃；交联聚氯乙烯绝缘为90℃。

The long-term working temperature of cable conductors: PVC has two types: 70 ℃ and 105 ℃; Polyethylene insulation at 70 ℃; Crosslinked polyvinyl chloride insulation is at 90 ℃.

two

电缆允许在环境温度-40℃～50℃的条件下固定敷设使用，敷设时的环境应不底于0℃ 铜带屏蔽结构的电缆，敷设时的弯曲

Cables are allowed to be fixedly laid and used in environments with temperatures ranging from -40 ℃ to 50 ℃. The laying environment should not be lower than 0 ℃ for cables with copper tape shielding structures, and bending during laying should be avoided

于电缆外径的12倍，其他电缆敷设时的弯曲半径应不小于电缆外径的6倍。

When laying other cables, the bending radius should not be less than 6 times the outer diameter of the cable, which is 12 times the outer diameter of the cable.

three

型号及结构特征　　　　　　阻燃计算机屏蔽电缆也就是绞对屏蔽电缆

Model and structural characteristics: flame-retardant computer shielded cable, also known as twisted pair shielded cable

型号规格说明表

Model Specification Description Table

序号　　　　　　　　　项目　　　　　　　　　代号　　　　　　　　　说明

Item code description

1　　　　　　　阻燃代号　　　　　　　　ZR

1. Flame retardant code ZR

DZR　一般阻燃

DZR general flame retardant

阻燃
