产品名称：Variable frequency flexible cable YQB
浏览：
添加时间：2024-07-05 10:27:35
推荐度：

介绍：

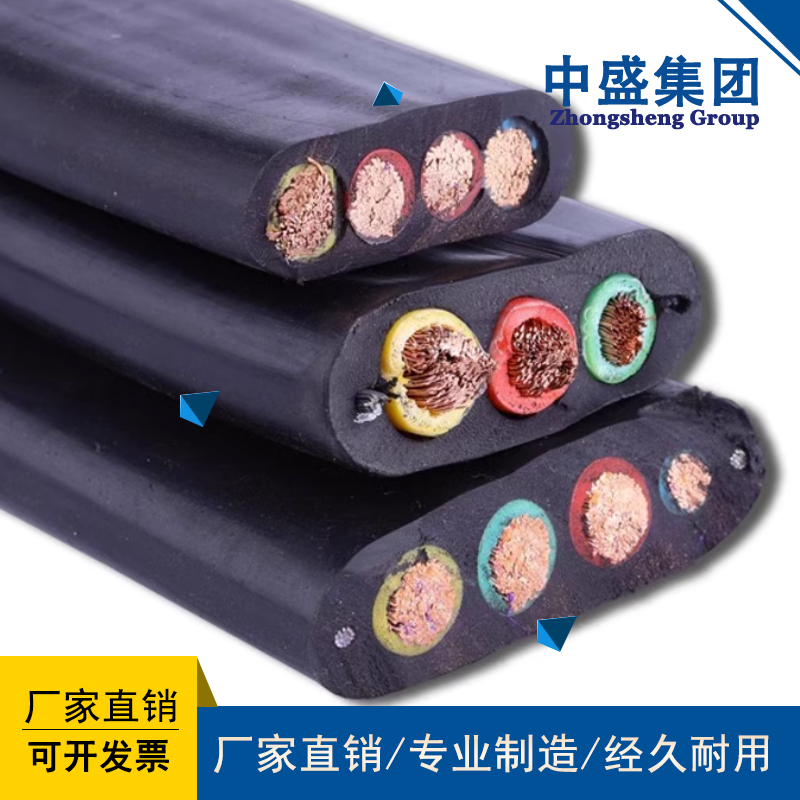

扁平软电缆YQB、YQWB

Flat flexible cables YQB, YQWB

扁平软电缆YQB、YQWB线芯长期充许工作温度要不超过65℃；“W”型电缆具有耐气候和一定的耐油性能，适合在户外或接触油污的场合使用,"B"代表扁平电缆；ZR-型电缆具有阻燃的性能。额定电压为300/500V（YQWB YZWB型），450/750V（YCWB型）；

The long-term allowable working temperature for the YQB and YQWB cores of flat flexible cables shall not exceed 65 ℃; The "W" type cable has weather resistance and certain oil resistance, and is suitable for use outdoors or in situations where it comes into contact with oil pollution. "B" represents flat cable; ZR type cables have flame retardant properties. The rated voltage is 300/500V (YQWB YZWB type) and 450/750V (YCWB type);

扁平软电缆YQB、YQWB生产执行标准　JB8735.-1998.

The production execution standards for flat flexible cables YQB and YQWB are JB8735.1998

型号、名称及主要用途

Model, name, and main purpose

型号	名称	主在用途
YQB、YQWB	轻型橡套扁电缆	用于轻型移动电气设备和工具Used for lightweight mobile electrical equipment and tools
YZB、YZWB	中型橡套扁电缆	用于中型移动电气设备和工具Used for medium-sized mobile electrical equipment and tools
YCB、YCWB	重型橡套扁电缆	用于各种移动电气设备，能承受较大的机械外力的作用，特别适用于行车、起重机等电气设备。Used for various mobile electrical equipment, capable of withstanding large mechanical external forces, especially suitable for electrical equipment such as cranes and cranes.

规格范围

型号	额定电压（V）	芯数	标准截面（Mm2)
YQB、YQWB	300/300	2,3	0.3-0.5
YZB、YZWB	300/300	2,3,4,5 3+1	1.5-6
YCB	450/750	1 2 3,4 5	1.5-240 1.5-95 1.5-150 1.5-25
YCBW、YCWB	450/470	2 3 3+1	35-95 120-150 2.5-150

规格尺寸及技术参数

标准截面(mm2)	导体结构	20℃时导体电阻≤(ΩM)	电缆外径参考(mm)
标准截面(mm2)	根/单线直径(mm)	20℃时导体电阻≤(ΩM)	2芯	3芯
0.3	16/0.15	69.2	/	/
0.5	28/0.15	30.0	/	/

YZB YZWB 型300/500V

标称截面（mm2)	导体结构	20℃时导体直流电阻≤（Ω/KM）	电缆外径参考（mm)
标称截面（mm2)	根/单线直径	20℃时导体直流电阻≤（Ω/KM）	2芯	3芯	4芯	5芯	6芯
1.5	30/0.25	13.3	--	--	20.44*6.76	--	17.76*6.09
2.5	49/0.25	7.98	--	--	27.1*8.05	--	27.1*8.05
4	56/0.30	4.95	--	--	33.3*9.6	--	49.1*9.6
6	84/0.30	3.30	--	--	38.4*11.5	--	56.7*11.5

交货要求
　　成圈100m,成盘应大于100m;
　　短段电缆不小于10m,短段电缆的交货数量应不超过交货总长度10%，且每个包装件应不超过五段；
　　根据双方协议充许任何长度的电缆交货，长度误差为±0.5%；用户对产品有阻燃特性要求，在合同中需另补充协议

Delivery requirements

Forming a circle of 100m, the circle should be greater than 100m;

Short section cables shall not be less than 10m, and the delivery quantity of short section cables shall not exceed 10% of the total delivery length, and each packaging shall not exceed five sections;

According to the agreement between both parties, any length of cable is allowed to be delivered with a length error of ± 0.5%; Users have requirements for flame retardant properties of the product, and a separate agreement needs to be added in the contract
