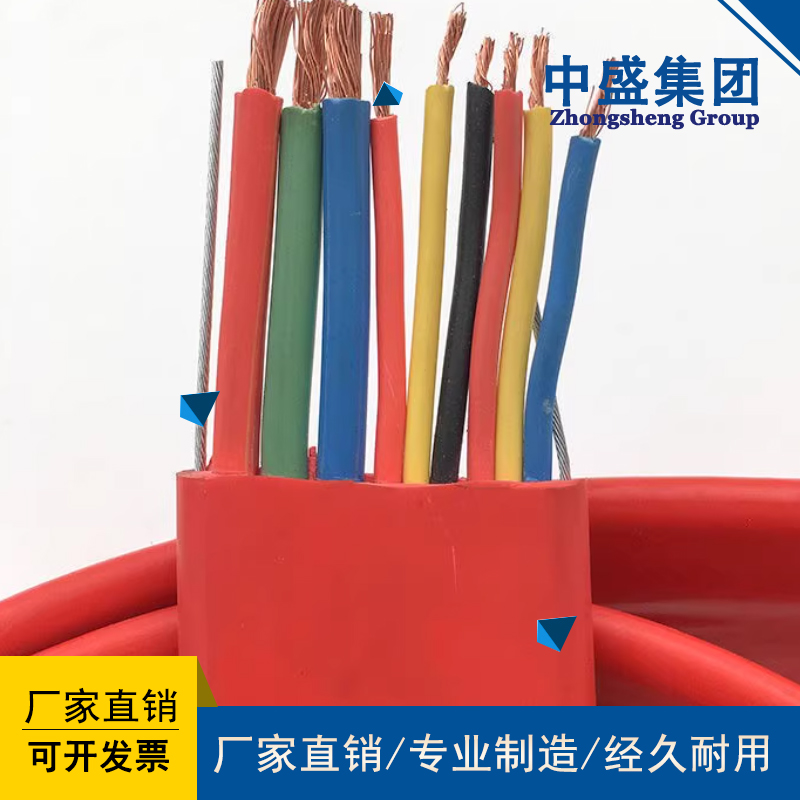

产品名称：Flat cable for driving YFFBG
浏览：
添加时间：2024-07-11 17:21:01
推荐度：

介绍：

一：产品特点及用途：本产品具有耐寒、柔软、耐磨、防油等特性，适用于交流额定电压0.6/1KV及以下具有耐寒、防油等特殊要求的行车、台车、传输机械等移动电器用动力传输线及控制、照明、通讯线路，本产品已广泛应用于冶金、电力、船舶、港口等行业。

1： Product features and uses: This product has the characteristics of cold resistance, softness, wear resistance, and oil resistance. It is suitable for power transmission lines, control, lighting, and communication lines for mobile electrical appliances such as trains, trolleys, and transmission machinery with special requirements for cold resistance and oil resistance at AC rated voltage of 0.6/1KV and below. This product has been widely used in industries such as metallurgy, electricity, ships, and ports.

分相屏蔽丁青扁平电缆适用于作变频器供电电缆。

The phase shielded Ding Qing flat cable is suitable for use as a power supply cable for frequency converters.

二：产品执行标准

2： Product execution standards

Q/TC2009，阻燃性能试验执行GB12666.5-90规定

Q/TC2009， The flame retardant performance test shall comply with the provisions of GB12666.5-90

三：使用特性

3： Usage characteristics

1．交流额定电压：U0/U 0.6/1KV

1. Rated AC voltage: U0/U 0.6/1KV

zui高工作温度： 105℃

Zui High Operating Temperature: 105 ℃

zui低环境温度：固定敷设-40℃

Zui low ambient temperature: fixed installation -40 ℃

2．电缆安装敷设温度应不低于-25℃。

2. The temperature for cable installation and laying should not be lower than -25 ℃.

四：基本型号及名称

4： Basic model and name

型号产品名称芯数标称截面 mm2

Model, Product Name, Number of Cores, Nominal Cross Section (mm2)

YVFB 丁青绝缘、护套移动扁平软电缆 1～60 0.5～240

YVFB Ding Qing insulated and sheathed mobile flat flexible cable 1-60 0.5-240

YVFBG 丁青绝缘、护套移动扁平型钢丝抗拉软电缆 1～60 0.5～240

YVFBG Ding Qing Insulated and Sheathed Mobile Flat Steel Wire Tensile Flexible Cable 1-60 0.5-240

YVFBPG 丁青绝缘、护套屏蔽移动扁平钢丝抗拉软电缆 1～60 0.5～240

YVFBPG Ding Qing Insulated, Sheathed Shielded Mobile Flat Steel Wire Tensile Flexible Cable 1-60 0.5-240

YFFB 氯丁绝缘、护套扁平移动软电缆 1～60 0.5～240

YFFB Chloroprene insulated and sheathed flat mobile flexible cable 1-60 0.5-240

YFFBG 氯丁绝缘、护套扁平移动型钢丝抗拉软电缆 1～60 0.5～240

YFFBG Chloroprene insulated and sheathed flat mobile steel wire tensile flexible cable 1-60 0.5-240

YFFBPG 氯丁绝缘、护套屏蔽移动扁平钢丝抗拉软电缆 1～60 0.5～240

YFFBPG chloroprene insulated and sheathed shielded mobile flat steel wire tensile flexible cable 1-60 0.5-240

YGCB 硅橡胶绝缘、护套移动扁平软电缆 1～60 0.5～240

YGCB Silicone rubber insulated and sheathed mobile flat flexible cable 1-60 0.5-240

YGCBG 硅橡胶绝缘、护套移动扁平型钢丝抗拉软电缆 1～60 0.5～240

YGCBG Silicone rubber insulated and sheathed mobile flat steel wire tensile flexible cable 1-60 0.5-240

YGCBPG 硅橡胶绝缘、护套屏蔽移动扁平钢丝抗拉软电缆 1～60 0.5～240

YGCBPG Silicone Rubber Insulated, Sheath Shielded Mobile Flat Steel Wire Tensile Flexible Cable 1-60 0.5-240

备注：阻燃型扁电缆型号前加ZR，导体线芯中铜丝可以采用镀锡。

Note: ZR should be added before the flame-retardant flat cable model, and tin plating can be used for the copper wire in the conductor core.

五：代号名称和含义

5： Code name and meaning

代号代号含义

Meaning of code names

Y 移动用系列

Y Mobile series

VF 丁青绝缘和护套

VF Ding Qing insulation and sheath

F 氯丁绝缘和护套

F Chloroprene insulation and sheath

P 铜编织屏蔽

P Copper braided shielding

B 扁型

B Flat type

G 抗拉钢丝

G Tensile steel wire

六：主要技术指标

6： Main technical indicators

代号代号含义

Meaning of code names

Y 移动用系列

Y Mobile series

VF 丁青绝缘和护套

VF Ding Qing insulation and sheath

F 氯丁绝缘和护套

F Chloroprene insulation and sheath

P 铜编织屏蔽

P Copper braided shielding

B 扁型

B Flat type

G 抗拉钢丝

G Tensile steel wire

1．成品电缆导体(R类)直流电阻(符合GB3956规定)参照附录A表2。

1. The DC resistance of the finished cable conductor (Class R) (in accordance with GB3956 regulations) shall refer to Table 2 in Appendix A.

2．20℃时绝缘电阻不小于50MΩ/KM。

The insulation resistance at 2.20 ℃ shall not be less than 50M Ω/KM.

3．成品电缆经受交流50HZ3.5KV/5min电压试验不击穿。

3. The finished cable shall withstand an AC voltage test of 50Hz, 3.5KV, and 5min without breakdown.

七：基本电缆规格及结构参数

7： Basic cable specifications and structural parameters

1．丁青绝缘和护套动力扁电缆

1. Ding Qing insulated and sheathed power flat cable

线芯*标称截面(mm2) 导体结构

Core * nominal cross-section (mm2) conductor structure

(根数*直径)

(Number of roots * diameter)

mm 电缆zui大外径(mm)

mm Cable maximum outer diameter (mm)

YVFB

2*1.5 48*0.20 11.4*7.5

2*2.5 51*0.25 14.0×9.0

2*4 82*0.25 15.8×9.5

2*6 123*0.25 18.2×10.8

2*10 204*0.25 21.5×12.5

2*16 323*0.25 24.2×13.9

2*25 513*0.25 28.5×16.2

2*35 722*0.25 31.8×18.1

2*50 1026*0.25 36.6×20.5

2*70 1406*0.25 41.6×23.3

2*95 486*0.50 47.3×26.3

2*120 608*0.50 50.8×28.1

2*150 760*0.50 56.3×31.2

3*1.5 48*0.20 15.8*7.5

3*2.5 51*0.25 18.8×9.0

3*4 82*0.25 21.6×9.5

3*6 123*0.25 25.8×11.3

3*10 204*0.25 32.1×13.2

3*16 323*0.25 34.2×14.9

3*25 513*0.25 42.3×18.2

3*35 722*0.25 46.2×19.1

3*50 1026*0.25 55.8×22.0

3*70 1406*0.25 66.8×26.8

3*95 486*0.50 70.2×28.0

3*120 608*0.50 85.5×36.0

3*150 760*0.50 95.0×35.1

4*1.5 48*0.20 20.5*7.5

4*2.5 945*0.50 25.8×9.0

4*4 82*0.25 29.4×9.5

4*6 123*0.25 34.1×11.8

4*10 204*0.25 40.4×12.9

4*16 323*0.25 45.9×15.6

4*25 513*0.25 54.1×18.1

4*35 722*0.25 58.6×20.2

4*50 1026*0.25 83.0×26.5

3×4+2.5 82*0.25/51*0.25 30.6×10.7

3×6+4 123*0.25/82*0.25 31.0×12.8

3×10+6 204*0.25/123*0.25 35.0×12.9

3×16+6 323*0.25/123*0.25 41.3×15.6

3×25+10 513*0.25/204*0.25 49.1×18.1

3×35+10 722*0.25/204*0.25 64.2×20.2

3×50+16 1026*0.25/323*0.25 80.2×23.4

3×70+25 1406*0.25/513*0.25 85.3×27.2

3×95+35 486*0.50/722*0.25 97.6×29.7

3×120+35 608*0.50/722*0.25 107.1×31.9

5*1.5 48*0.20 25.5*7.5

5*2.5 51*0.25 32.0*9.0

5*4 82*0.5 37.5*10

6*1.5 48*0.20 31*7.5

6*2.5 51*0.25 40.9*9.0

6*4 82*0.5 42.0*10

7*1.5 48*0.20 32.0*7.0

7*2.5 51*0.25 41.0*9.0

7*4 82*0.25 44.0*10.0

8*1.5 48*0.20 38.5*7.8

8*2.5 51*0.25 48.0*8.0

8*4 82*0.25 51.0*10.6

10*1.5 48*0.20 44.5*7.8

10*2.5 51*0.25 59.0*9.0

10*4 82*0.25 65.2*11.0

12*1.5 48*0.20 59.5*8.5

12*2.5 51*0.25 70.0*8.5

12*4 82*0.25 80.2*11.0

上一篇：Silicone rubber cable JGGRP

下一篇：Shielded cable of digital patrol detection device KJCP KJCPR

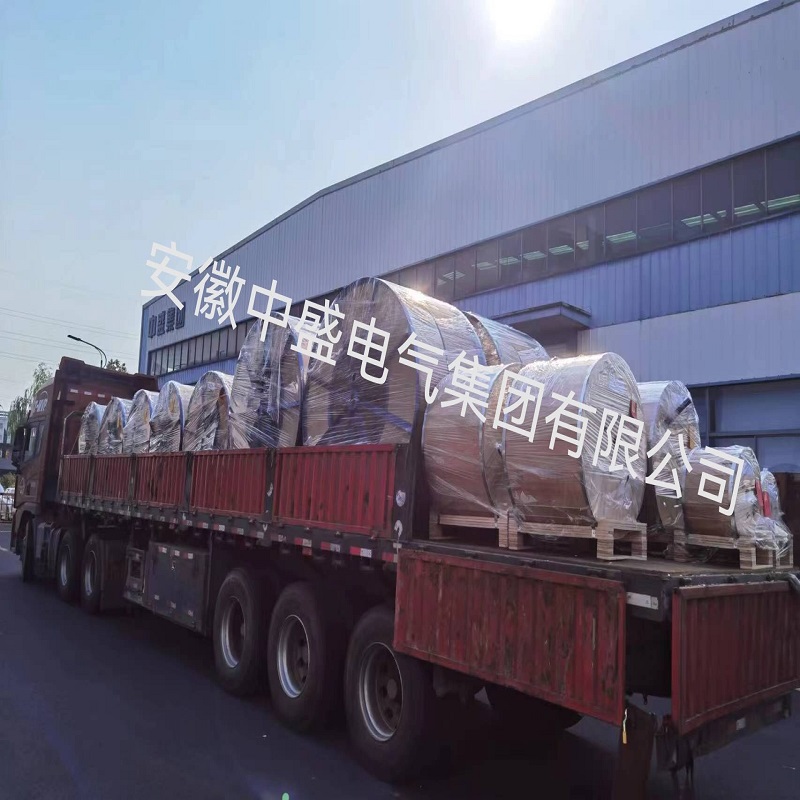

安徽中盛集团长年出口电线电缆
