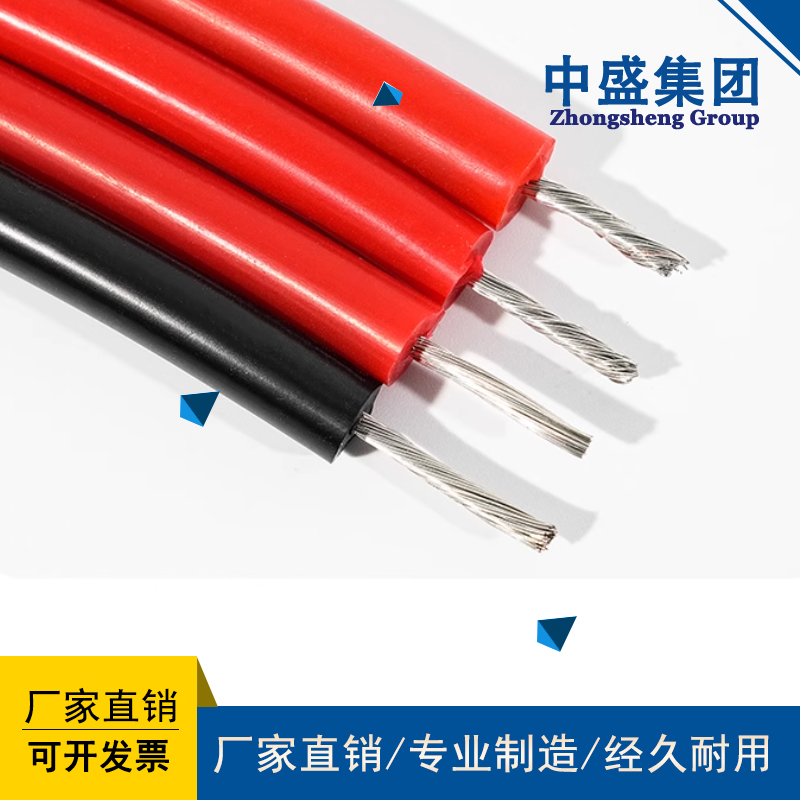

产品名称：Motor winding lead wire JBQ
浏览：
添加时间：2024-07-19 10:18:53
推荐度：

介绍：

连续运行导体zui高温度为70℃的电机绕组引接线

Wire connection for motor winding with the highest temperature of 70 ℃ for continuous operation of conductor

一、执行标准：

1、 Execution standards:

JB6213 92 Q／12YJ 4135-2000

二、适用范围：

2、 Scope of application:

适用于交流额定电压6000V及以下的电机绕组的引出连接用。

Suitable for the lead out connection of motor windings with AC rated voltage of 6000V and below.

三、使用特性：

3、 Usage characteristics:

电线导体的*允许工作温度应不超过70℃。具有良好的柔软性及耐热、耐溶剂性。

The allowable working temperature of the wire conductor should not exceed 70 ℃. Has good flexibility, heat resistance, and solvent resistance.

四、JBQ电缆50mm2 JBQ1140V电缆型号和名称：

4、 JBQ cable 50mm2 JBQ1140V cable model and name:

JF(JBF) 铜芯聚氯乙烯复合物绝缘电机绕组引接电缆(电线)

JF (JBF) copper core polyvinyl chloride composite insulated motor winding lead cable (wire)

JV(JBV) 铜芯聚氯乙烯绝缘电机绕组引接电缆(电线)

JV (JBV) copper core PVC insulated motor winding lead cable (wire)

JXN(JBQ) 铜芯橡皮绝缘护套电机绕组引接软电缆(电线)

JXN (JBQ) copper core rubber insulated sheathed motor winding connection flexible cable (wire)

JXF(JBHF) 铜芯橡皮绝缘氯丁护套电机绕组引接软电缆(电线)

JXF (JBHF) copper core rubber insulated chloroprene sheathed motor winding connection flexible cable (wire)

用途

purpose

该型号产品为交流额定电压1140V及以下的B级绝缘电机、电器绕组连接并引出机壳或绕组与电机壳体上的接线柱连接用电线。

This model of product is a B-class insulated motor with an AC rated voltage of 1140V or below. It is used to connect the electrical windings and lead them out of the casing or to connect the windings to the terminal posts on the motor casing.

型号及名称

Model and Name

JBQ 橡皮绝缘护套引接线

JBQ rubber insulation sheath lead wire

1 镀锡铜导体

1 Tin plated copper conductor

2 隔离层(如果有的话)

2 isolation layers (if any)

3 橡皮绝缘层

3 rubber insulation layer

4 橡皮护套层

4 rubber sheath layer

(注：本产品可根据用户需要制成黑、白、绿和红等多种颜色

(Note: This product can be made in various colors such as black, white, green, and red according to user needs)

型号及名称

Model and Name

JBQ 橡皮绝缘护套引接线

JBQ rubber insulation sheath lead wire

1 镀锡铜导体

1 Tin plated copper conductor

2 隔离层(如果有的话)

2 isolation layers (if any)

3 橡皮绝缘层

3 rubber insulation layer

4 橡皮护套层

4 rubber sheath layer

(注：本产品可根据用户需要制成黑、白、绿和红等多种颜色，

(Note: This product can be made into various colors such as black, white, green, and red according to user needs.),

色泽鲜明、持久)

Bright and long-lasting color

产品结构及参考数据

Product Structure and Reference Data

JBQ型500V

JBQ type 500V

标称截面(mm2) 导电线芯结构(mm) 绝缘标称厚度

Nominal cross-section (mm2) Conductive core structure (mm) Insulation nominal thickness

(mm) 护套标称厚度

(mm) nominal thickness of sheath

(mm) 电缆zui大外径

(mm) Cable with the largest outer diameter

(mm) 电缆参考重量(kg/km) 20℃导体电阻≤(Ω/km)

(mm) Cable reference weight (kg/km) 20 ℃ conductor resistance ≤ (Ω/km)

单线根数单线直径

Number of single wires, diameter of single wire

0.5 28 0.15 0.6 0.8 4.3 20 38.5
0.75 42 0.15 0.6 0.8 4.5 24 25.7
1.0 32 0.20 0.6 0.8 4.7 28 18.9
1.5 48 0.20 0.6 0.8 5.0 35 12.6
2.5 19 0.41 0.8 1.0 6.2 57 7.59
4 19 0.52 0.8 1.0 6.8 76 4.54
6 19 0.64 0.8 1.0 4.5 100 3.00
10 49 0.52 1.0 1.2 10.0 178 1.78
16 49 0.64 1.0 1.2 11.2 243 1.18
25 98 0.58 1.0 1.4 13.7 372 0.716
35 133 0.58 1.0 1.4 14.8 471 0.528
50 133 0.68 1.2 1.6 17.1 647 0.384
70 189 0.68 1.2 1.6 19.6 879 0.270
95 259 0.68 1.4 1.6 21.9 1160 0.197
120 259 0.76 1.6 1.8 24.6 1451 0.158
150 320 0.76 1.8 2.2 29 1911.5 0.132
185 395 0.76 1.8 2.2 32 2268.65 0.108
240 513 0.76 2.2 3 35 3010 0.0817
300 641 0.76 2.4 3.5 38 3770 0.0654
