概述

summary

聚四氟乙烯薄膜绕包绝缘安装线采用PTFE薄膜作为绝缘，按照企业标准生产。该类产品具有******的柔韧性，******的耐高温性能，优良的化学性能，耐潮湿、阻燃等优点。主要用于高温条件下电子设备、仪器仪表线路、飞机布线及其它电器装置的内部连接等。

The PTFE film wrapped insulation installation line uses PTFE film as insulation and is produced according to enterprise standards. This type of product has excellent flexibility, outstanding high temperature resistance, excellent chemical properties, moisture resistance, flame retardancy, and other advantages. Mainly used for internal connections of electronic equipment, instrument circuits, aircraft wiring, and other electrical devices under high temperature conditions.

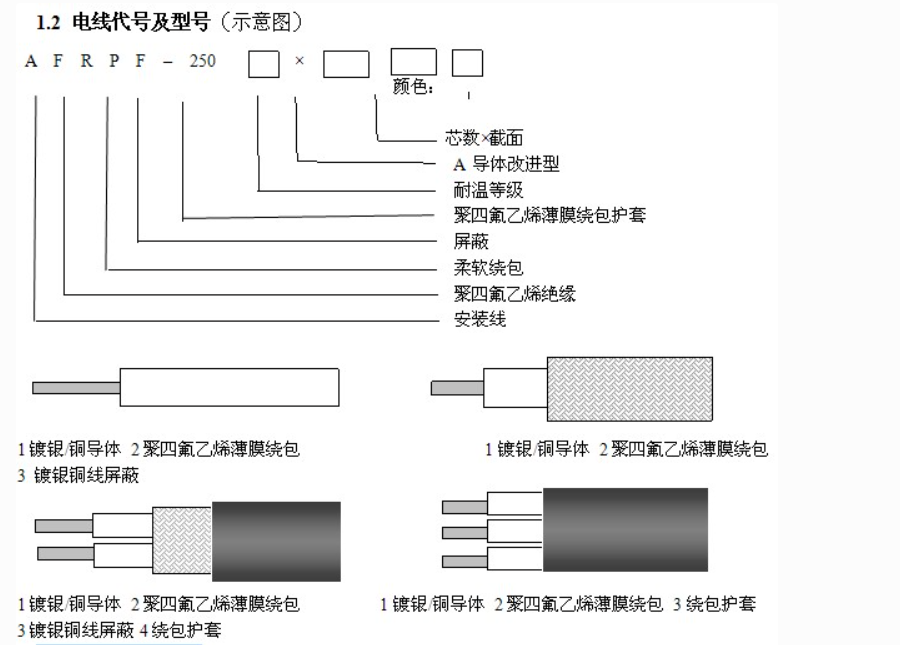

$W(5__T7XI4(SND79{HSQ6DY.png$

产品主要性能

Main performance of the product

1. 额定电压：交流 220V

1. Rated voltage: AC 220V

2.工作温度：-65℃ ~ 200℃ -65℃ ~ 250℃（镀银导体）

2. Working temperature: -65 ℃~200 ℃ -65 ℃~250 ℃ (silver plated conductor)

3. 绝缘电阻：成品电线在室温下应不小于100MΩ·km

3. Insulation resistance: The finished wire should not be less than 100M Ω· km at room temperature

4. 屏蔽编织密度应不小于80%,可以3米以上交货。

4. The shielding weaving density should not be less than 80% and can be delivered over 3 meters.

1.4 常用规格结构数据表（可根据用户特殊需要定做）

1.4 Common Specification Structure Data Sheet (can be customized according to user's special needs)

型号

model

芯数×截面

Number of cores x cross-section

mm2

导体结构

Conductor structure

股数/直径

Number of shares/diameter

***大直流电阻

Maximum DC resistance

Ω/km 20℃

绝缘***薄厚度

The thinnest thickness of insulation

电线外径

Outer diameter of wire

试验电压

Test voltage

型号	芯数×截面 mm2 Number of cores x cross-section mm2	导体结构股数/直径 mm Conductor structure Number of shares/diameter mm	***大直流电阻 Ω/km 20℃ Maximum DC resistance Ω/km 20℃	绝缘***薄厚度 mm The thinnest thickness of insulation mm	电线外径Outer diameter of wire	试验电压 kV Test voltage kV
AFR-250 AF-1 AFR-200 AF	1×0.035	7/0.08	600	0.07	0.67	1.0
	2×0.035				1.50
	3×0.035				1.70
	1×0.05	10/0.08 7/0.10	370	0.07	0.72
	2×0.05				1.60
	3×0.05				1.80
	1×0.07	14/0.08 7/0.12	260	0.07	0.75
	2×0.07				1.70
	3×0.07				2.00
	1×0.10	21/0.08	180	0.07	0.85
	2×0.10				1.80
	3×0.10				2.10
	1×0.12	24/0.08 7/0.15	165	0.07	0.87
	2×0.12				1.80
	3×0.12				2.10
	1×0.15	30/0.08 19/0.10	125	0.07	0.90
	2×0.15				1.80
	3×0.15				2.20
	1×0.20	42/0.08 27/0.10 12/0.15 19/0.12	100	0.07	1.00
	2×0.20				2.00
	3×0.20				2.20
	1×0.30	62/0.08 45/0.10 18/0.15	70	0.07	1.15
	2×0.30				2.30
	3×0.30				2.60
	1× 0.35	75/0.08 45/0.10 19/0.16	60	0.07	1.20
	2× 0.35				2.40
	3× 0.35				2.60
	1× 0.40	85/0.08 54/0.10 24/0.15	55	0.07	1.30
	2× 0.40				2.70
	3× 0.40				3.00
	1× 0.50	105/0.08 66/0.10 29/0.15 19/0.18	42	0.07	1.40
	2× 0.50				2.80
	3× 0.50				3.10

注：AF-1 同AFR-250, AF 同AFR-200（线芯为裸铜）.
常用规格结构数据表（续）

型号	芯数×截面 mm2	导体结构股数/直径 mm	***大直流电阻 Ω/km 20℃	绝缘***薄厚度 mm	电线外径	试验电压 kV
AFRP-250 AFP-1 AFRP-200 AFP	1×0.035	7/0.08	600	0.07	1.10	0.8
	2×0.035				1.90
	3×0.035				2.20
	1×0.05	10/0.08 7/0.10	370	0.07	1.20
	2×0.05				2.10
	3×0.05				2.30
	1×0.07	14/0.08 7/0.12	260	0.07	1.30
	2×0.07				2.20
	3×0.07				2.50
	1×0.10	21/0.08	180	0.07	1.40
	2×0.10				2.30
	3×0.10				2.80
	1×0.12	24/0.08 7/0.15	165	0.07	1.45
	2×0.12				2.40
	3×0.12				2.85
	1×0.15	30/0.08 19/0.10	125	0.07	1.55
	2×0.15				2.50
	3×0.15				2.90
	1×0.20	42/0.08 27/0.10 12/0.15 19/0.12	100	0.07	1.75
	2×0.20				3.10
	3×0.20				3.25
	1×0.30	62/0.08 45/0.10 18/0.15	70	0.07	1.80
	2×0.30				3.20
	3×0.30				3.50
	1× 0.35	75/0.08 45/0.10 19/0.16	60	0.07	1.95
	2× 0.35				3.40
	3× 0.35				3.70
	1× 0.40	85/0.08 54/0.10 24/0.15	55	0.07	2.00
	2× 0.40				3.50
	3× 0.40				3.90
	1× 0.50	105/0.08 66/0.10 29/0.15 19/0.18	42	0.07	2.20
	2× 0.50				3.90
	3× 0.50				4.30

注：AFP-1 同AFRP-250, AFP 同AFRP-200（线芯为裸铜），P1为镀锡铜线编织.
常用规格结构数据表（续）

型号	芯数×截面 mm2	导体结构股数/直径 mm	***大直流电阻 Ω/km 20℃	绝缘***薄厚度 mm	电线外径	试验电压 kV
AFPF	1×0.035	7/0.08	600	0.07	1.30	0.8
	2×0.035				2.20
	3×0.035				2.50
	1×0.05	10/0.08 7/0.10	370	0.07	1.50
	2×0.05				2.40
	3×0.05				2.60
	1×0.07	14/0.08 7/0.12	260	0.07	1.60
	2×0.07				2.50
	3×0.07				2.80
	1×0.10	21/0.08	180	0.07	1.65
	2×0.10				2.60
	3×0.10				3.10
	1×0.12	24/0.08 7/0.15	165	0.07	1.70
	2×0.12				2.65
	3×0.12				3.15
	1×0.15	30/0.08 19/0.10	125	0.07	1.80
	2×0.15				2.80
	3×0.15				3.20
	1×0.20	42/0.08 27/0.10 12/0.15 19/0.12	100	0.07	2.05
	2×0.20				3.40
	3×0.20				3.55
	1×0.30	62/0.08 45/0.10 18/0.15	70	0.07	2.25
	2×0.30				3.70
	3×0.30				3.90
	1× 0.35	75/0.08 45/0.10 19/0.16	60	0.07	2.35
	2× 0.35				3.85
	3× 0.35				4.10
	1× 0.40	85/0.08 54/0.10 24/0.15	55	0.07	2.40
	2× 0.40				3.95
	3× 0.40				4.30
	1× 0.50	105/0.08 66/0.10 29/0.15 19/0.18	42	0.07	2.60
	2× 0.50				4.40
	3× 0.50				4.70
