产品名称：High temperature variable frequency cableBPGGP
浏览：
添加时间：2024-07-23 11:10:17
推荐度：

介绍：

产品简介

Product Introduction

BPGGP变频电缆主要用于变频电源和变频电机之间连接用的电缆,以及额定电压1KV及以下的输配电线路中,作输送电能用.尤其适用于造纸、冶金、金属加工、矿山、铁路和食品加工等行业

BPGGP variable frequency cable is mainly used as a cable for connecting variable frequency power supplies and variable frequency motors, as well as in transmission and distribution lines with a rated voltage of 1KV or below, for conveying electrical energy. It is particularly suitable for industries such as papermaking, metallurgy, metal processing, mining, railways, and food processing

详情介绍

Details Introduction

BPGGP变频电缆产品详细介绍

BPGGP Variable Frequency Cable Product Detailed Introduction

BPGGP变频电缆产品用途

Application of BPGGP frequency conversion cable product

变频电缆主要用于变频电源和变频电机之间连接用的电缆,以及额定电压1KV及以下的输配电线路中,作输送电能用.尤其适用于造纸、冶金、金属加工、矿山、铁路和食品加工等行业。

Variable frequency cables are mainly used as cables for connecting variable frequency power supplies and variable frequency motors, as well as in transmission and distribution lines with a rated voltage of 1KV or below, for conveying electrical energy. They are particularly suitable for industries such as papermaking, metallurgy, metal processing, mining, railways, and food processing.

使用条件

Usage conditions

1、额定电压U0/U：0.6/1KV.

1. Rated voltage U0/U: 0.6/1KV

2、电缆导体长期允许zui高温度为90度,短路时zui高温度250度

2. The maximum allowable temperature for cable conductors in the long term is 90 degrees Celsius, and the maximum allowable temperature during short circuits is 250 degrees Celsius

3、安装敷设环境温度不低于0度,固定敷设时环境温度不低于-10度.

3. The installation and laying environment temperature shall not be lower than 0 degrees, and the fixed laying environment temperature shall not be lower than -10 degrees

4、电缆允许zui小弯曲半径不小于15D(D-电缆外径,mm)

4. The maximum allowable bending radius for cables is not less than 15D (D-cable outer diameter, mm)

产品性能

Product performance

1、设计采用符合GB/T3956-1997规定的第5类软绞合铜导体。

1. The design adopts Class 5 soft stranded copper conductors that comply with GB/T3956-1997 regulations.

2、交联聚乙烯绝缘、耐温耐候性好。

2. Cross linked polyethylene insulation has good temperature and weather resistance.

3、低传输阻抗，电磁兼容性好。

3. Low transmission impedance, good electromagnetic compatibility.

4、低工作电容

4. Low working capacitance

5、良好的抗干扰和低辐射性能。

5. Good anti-interference and low radiation performance.

6、对称的三芯电缆结构设计，具有比四芯电缆更好的传输性能。

6. The symmetrical three core cable structure design has better transmission performance than four core cables.

型号名称

Model name

BPGGP

硅橡胶绝缘和护套铜丝编织屏蔽耐高温变频电力电缆。

Silicone rubber insulated and sheathed copper wire braided shielding high temperature resistant variable frequency power cable.

BPGGP2

硅橡胶绝缘和护套铜带绕包屏蔽耐高温变频电力电缆。

Silicone rubber insulated and sheathed copper tape wrapped shielding high temperature resistant variable frequency power cable.

BPGGPP2

硅橡胶绝缘和护套铜丝编织铜带绕包屏蔽耐高温变频电力电缆。

Silicone rubber insulated and sheathed copper wire braided copper tape wrapped shielding high temperature resistant variable frequency power cable.

BPGGP3

硅橡胶绝缘和护套铝聚酯复合膜绕包屏蔽耐高温变频电力电缆。

Silicone rubber insulated and sheathed aluminum polyester composite film wrapped shielding high temperature resistant variable frequency power cable.

BPGVFP

硅橡胶绝缘丁腈护套铜丝编织屏蔽耐高温变频电力电缆。

Silicone rubber insulated nitrile sheathed copper wire braided shielding high temperature resistant variable frequency power cable.

BPGVFP2

硅橡胶绝缘丁腈护套铜带绕包屏蔽耐高温变频电力电缆。

Silicone rubber insulated nitrile sheathed copper tape wrapped shielding high temperature resistant variable frequency power cable.

BPGVFPP2

硅橡胶绝缘丁腈护套铜丝编织铜带绕包屏蔽耐高温变频电力电缆。

Silicone rubber insulated nitrile sheathed copper wire braided copper tape wrapped shielding high temperature resistant variable frequency power cable.

BPGVFP3

硅橡胶绝缘丁腈护套铝聚酯复合膜绕包屏蔽耐高温变频电力电缆。

Silicone rubber insulated nitrile sheathed aluminum polyester composite film wrapped shielding high temperature resistant variable frequency power cable.

BPFFP

氟46绝缘和护套铜丝编织屏蔽耐高温变频电力电缆。

Fluorine-46 insulated and sheathed copper wire braided shield high temperature resistant variable frequency power cable.

BPFFP2

氟46绝缘和护套铜带绕包屏蔽耐高温变频电力电缆。

Fluorine-46 insulated and sheathed copper tape wrapped shielding high temperature resistant variable frequency power cable.

BPFFPP2

氟46绝缘和护套铜丝编织铜带绕包屏蔽耐高温变频电力电缆

Fluorine-46 insulated and sheathed copper wire braided copper tape wrapped shielding high temperature resistant variable frequency power cable

BPFFP3

氟46绝缘和护套铝聚酯复合膜绕包屏蔽耐高温变频电力电缆。

Fluorine-46 insulated and sheathed aluminum polyester composite film wrapped shielding high temperature resistant variable frequency power cable.

BPVVP

聚氯乙烯绝缘和护套铜丝编织屏蔽变频电力电缆。

PVC insulated and sheathed copper wire braided shielded variable frequency power cable.

BPVVP2

聚氯乙烯绝缘和护套铜带绕包屏蔽变频电力电缆。

PVC insulated and sheathed copper tape wrapped shielded variable frequency power cable.

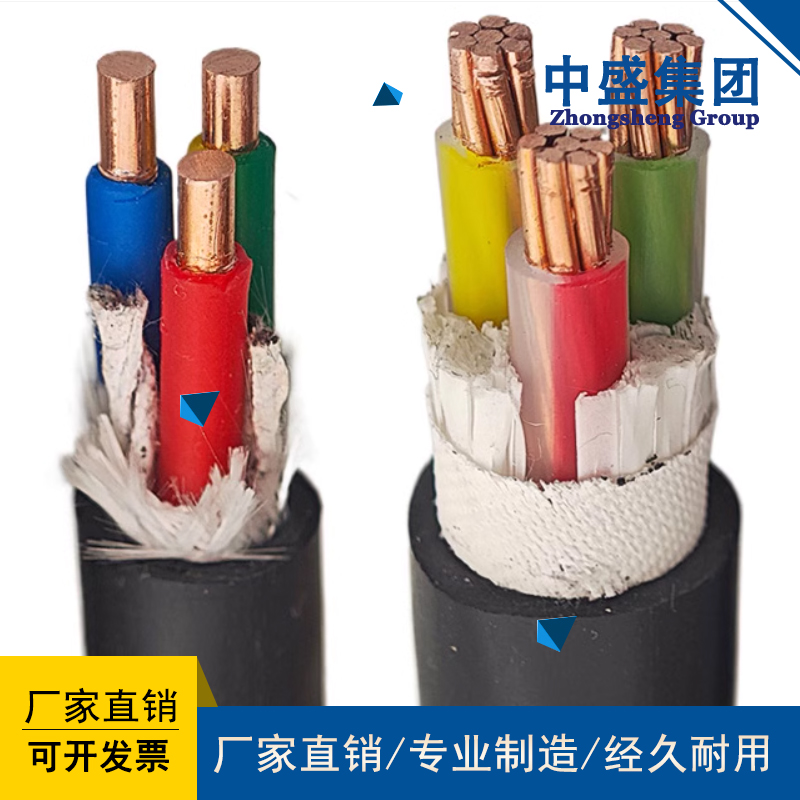

BPVVPP2

聚氯乙烯绝缘和护套铜丝编织铜带绕包屏蔽变频电力电缆。

PVC insulated and sheathed copper wire braided copper tape wrapped shielded variable frequency power cable.

BPVVP3

聚氯乙烯绝缘和护套铝聚酯复合膜绕包屏蔽变频电力电缆。

PVC insulated and sheathed aluminum polyester composite film wrapped shielded variable frequency power cable.

BPYJVP

交联聚乙烯绝缘聚氯乙烯护套铜丝编织屏蔽变频电力电缆。

Cross linked polyethylene insulated polyvinyl chloride sheathed copper wire braided shielded variable frequency power cable.

BPYJVP2

交联聚乙烯绝缘聚氯乙烯护套铜带绕包屏蔽变频电力电缆。

Cross linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped shielded variable frequency power cable.

BPYJVPP2

交联聚乙烯绝缘聚氯乙烯护套铜丝编织铜带绕包屏蔽变频电力电缆。

Cross linked polyethylene insulated polyvinyl chloride sheathed copper wire braided copper tape wrapped shielded variable frequency power cable.

BPYJVP3

交联聚乙烯绝缘聚氯乙烯护套铝聚酯复合膜绕包屏蔽变频电力电缆。

Cross linked polyethylene insulated polyvinyl chloride sheathed aluminum polyester composite film wrapped and shielded variable frequency power cable.

四：基本型号及名称

4： Basic model and name
