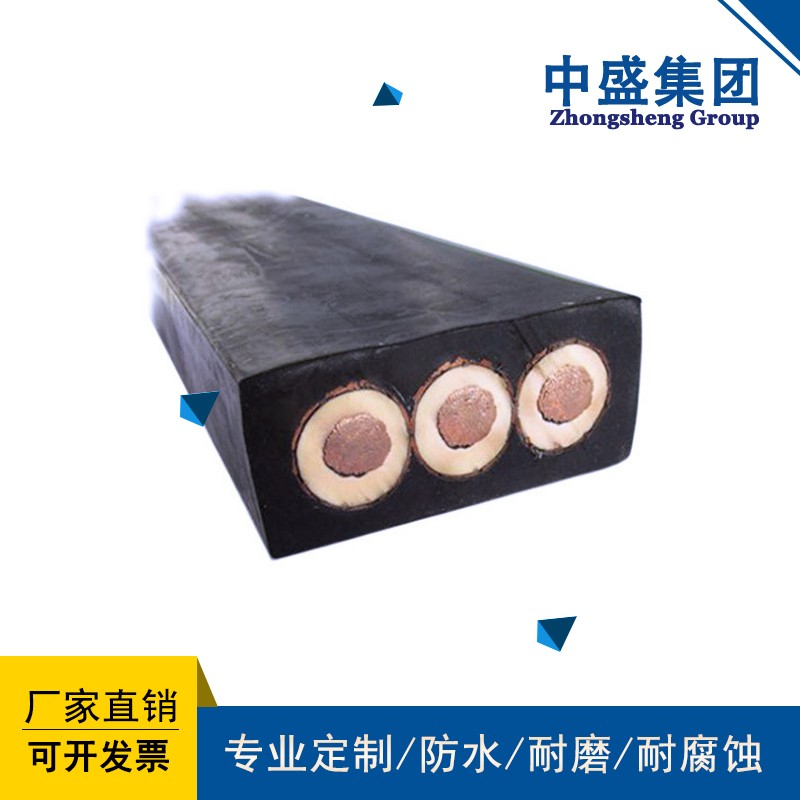

产品名称：Mobile device reel cable YGKFB-10KV
浏览：
添加时间：2024-07-25 10:28:49
推荐度：

介绍：

一、移动设备卷筒电缆YGKFB-10KV产品特点及用途

1、 Mobile device reel cable YGKFB-10KV product features and uses

卷筒用高压扁平电缆适用于交流额定电压6/10KV料场、码头的堆取料机及港机上变压器连接用高压扁平电缆，导体采用镀锡软芯结构，导体绝缘采用进口硅橡胶绝缘材料，电缆具有耐高温、耐寒、耐油、耐腐蚀以及柔软耐磨抗拉等特性，电缆可根据用户需要设计编制加入多芯控制电缆及光纤通讯即制成高压动力、多芯控制及光纤通讯组合扁平电缆。产品广泛用于电力、冶金、石油化工、矿山、水泥、船舶工业、港口及移动设备制造等行业。

High voltage flat cables for reels are suitable for connecting transformers on AC rated voltage 6/10KV material yards, docks, stacker reclaimers, and port machines. The conductor adopts a tin plated soft core structure, and the conductor insulation adopts imported silicone rubber insulation material. The cable has characteristics such as high temperature resistance, cold resistance, oil resistance, corrosion resistance, and soft wear resistance and tensile strength. The cable can be designed and compiled according to user needs by adding multi-core control cables and fiber optic communication to form a combination of high-voltage power, multi-core control, and fiber optic communication flat cables. The product is widely used in industries such as power, metallurgy, petrochemicals, mining, cement, shipbuilding, ports, and mobile equipment manufacturing.

二、产品执行标准

2、 Product execution standards

Q/AT2005-4标准

Q/AT2005-4 standard

阻燃性能试验执行GB12666.5-90规定

The flame retardant performance test shall comply with the provisions of GB12666.5-90

三、使用特性

3、 Usage characteristics

1、交流额定电压：U0/U 6/10KV；zui高工作温度：180℃；***环境温度：固定敷设-60℃；

1. Rated AC voltage: U0/U 6/10KV; Maximum working temperature: 180 ℃*** Environmental temperature: Fixed installation -60 ℃;

2、电缆安装敷设温度应不低于-25℃。

2. The temperature for cable installation and laying should not be lower than -25 ℃.

四、主要技术指标

4、 Main technical indicators

1、成品电缆导体（R类）直流电阻符合GB3956规定；

1. The DC resistance of the finished cable conductor (Class R) meets the requirements of GB3956;

2、20℃时绝缘电阻不小于50MΩ/KM；

2. The insulation resistance at 20 ℃ shall not be less than 50M Ω/KM;

3、成品电缆经受交流50HZ 15KV/5min电压试验不击穿。

3. The finished cable shall withstand AC 50Hz 15KV/5min voltage test without breakdown.

五、基本电缆规格及结构参数

5、 Basic cable specifications and structural parameters

型号	名称	规格
YGKFB-6KV	移动设备卷筒用6KV高压扁平电缆 6KV High Voltage Flat Cable for Mobile Equipment Rollers	3×16+3×16/3——3×95+3×16/3
4×16——4×70
3×16+1×10——3×95+1×35
YGKFB-6KV	移动设备卷筒用加光纤通讯6KV高压扁平电缆 6KV high voltage flat cable with fiber optic communication for mobile device reels	3×16+3×16/3+6FO—— 3×70+3×16/3+6FO
YGKFB-10KV	移动设备卷筒用10KV高压扁平电缆 10KV High Voltage Flat Cable for Mobile Equipment Rollers	3×16+3×16/3——3×95+3×16/3
4×16——4×70
3×16+1×10——3×95+1×35
YGKFB-10KV	移动设备卷筒用加光纤通讯10KV高压扁平电缆 10KV high-voltage flat cable with fiber optic communication for mobile device reel	3×16+3×16/3+6FO—— 3×70+3×16/3+6FO
