产品名称：Elevator specific flat cableTVVBPG
浏览：
添加时间：2024-07-26 09:06:28
推荐度：

介绍：

详细介绍

Detailed Introduction

一、TVVBPG扁平电缆用途:TVVBPG扁平电缆适用于交流额定电压300/500V（或450/750V）及以下电梯,行车和升降机械设备等，具有集动力、控制、通讯、摄像监控等特性于一体的*性。

1、 Application of TVVBPG flat cable: TVVBPG flat cable is suitable for elevators, train and lifting machinery equipment with AC rated voltage of 300/500V (or 450/750V) and below, and has the characteristics of integrating power, control, communication, camera monitoring, etc.

二、TVVBPG扁平电缆使用特性：

2、 TVVBPG flat cable usage characteristics:

1、电缆导体的长期允许工作温度不超过70℃，敷设环境温度应不低于0℃。

1. The long-term allowable working temperature of cable conductors should not exceed 70 ℃, and the laying environment temperature should not be lower than 0 ℃.

2、安装自由悬挂长度不超过80m，移动速度不超过4m/s。

2. Install a free suspension with a length not exceeding 80m and a moving speed not exceeding 4m/s.

3、电缆敷设安装允许弯曲半径应不小于电缆小边的6倍。

3. The allowable bending radius for cable laying and installation should not be less than 6 times the small edge of the cable.

三、执行标准

3、 Execution standards

GB/5023.6-1997及补充要求

GB/5023.6-1997 and Supplementary Requirements

四、型号名称：

4、 Model name:



TVVKP	聚氯乙烯绝缘聚氯乙烯护套圆型屏蔽电梯电缆PVC insulated PVC sheathed circular shielded elevator cable
TVVKG	聚氯乙烯绝缘聚氯乙烯护套圆型加强芯电梯电缆PVC insulated PVC sheathed round reinforced core elevator cable

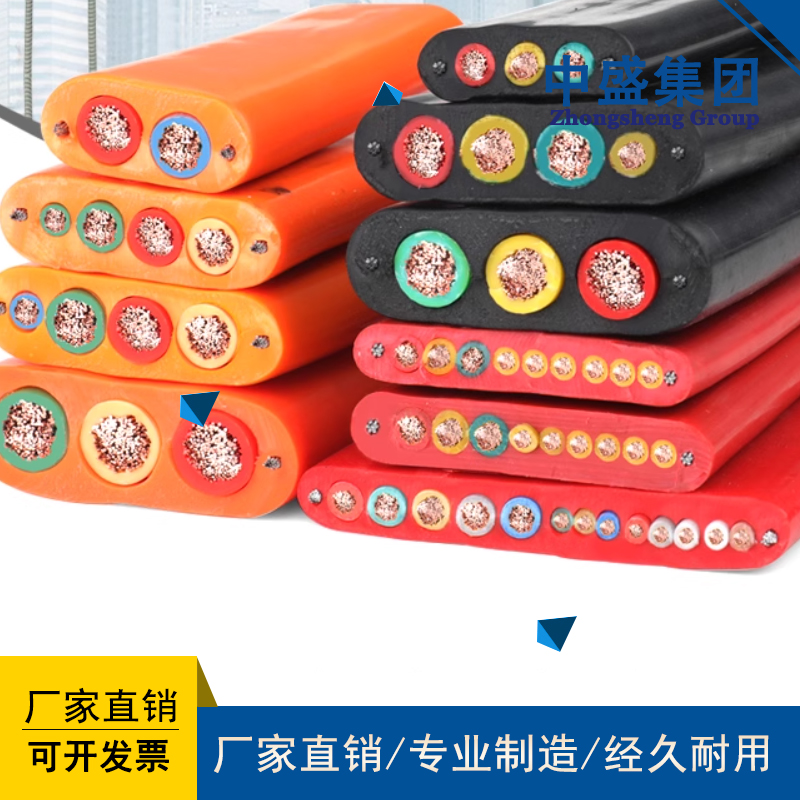

TVVB EVVF	聚氯乙烯绝缘聚氯乙烯护套扁型电梯电缆PVC insulated PVC sheathed flat elevator cable
TVVBP	聚氯乙烯绝缘聚氯乙烯护套扁型屏蔽电梯电缆PVC insulated PVC sheathed flat shielded elevator cable
TVVBG EVVF（SR）	聚氯乙烯绝缘聚氯乙烯护套扁型加强芯电梯电缆PVC insulated PVC sheathed flat reinforced core elevator cable
TVVBPG	聚氯乙烯绝缘聚氯乙烯护套扁型屏蔽加强芯电梯电缆PVC insulated PVC sheathed flat shielded reinforced core elevator cable
TVVK	聚氯乙烯绝缘聚氯乙烯护套圆型电梯电缆PVC insulated PVC sheathed circular elevator cable
YTB	编制电梯电缆Prepare elevator cables
YT	高强度橡套电梯电缆High strength rubber sheathed elevator cable
YTF
