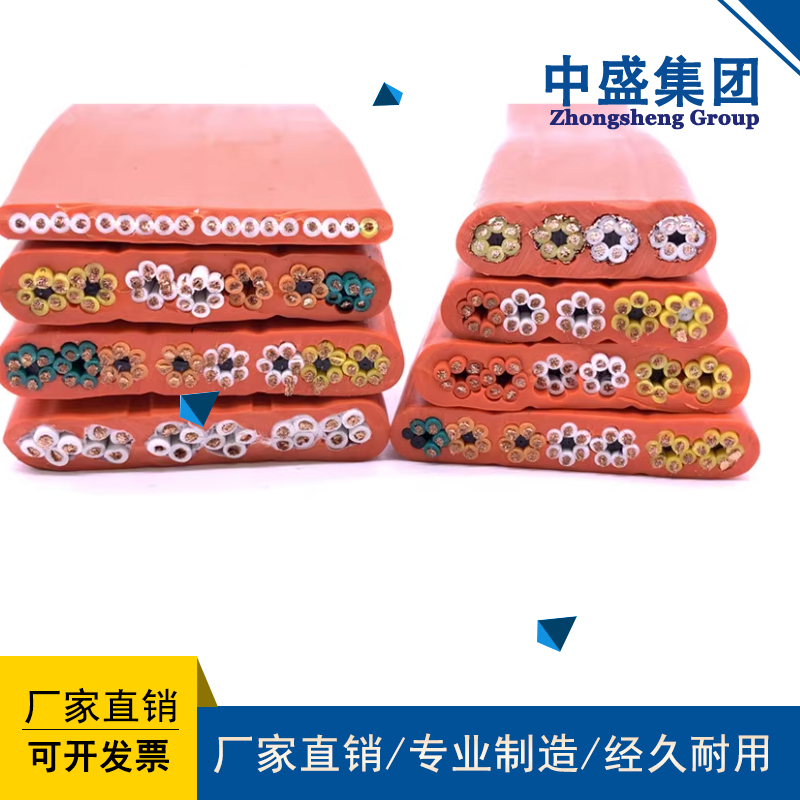

产品名称：High voltage flat cable for stacker reclaimer drumYJGCFPB
浏览：
添加时间：2024-08-07 15:32:30
推荐度：

介绍：

一、产品特点及用途

1、 Product Features and Applications

本产品适用于交流额定电压6/10KV料场、码头的堆取料机及港机上变压器连接用高压扁平电缆，导体采用镀锡软芯结构，导体J缘采用硅橡胶J缘材料，电缆具有耐高温、耐寒、耐油、耐腐蚀以及柔软耐磨抗拉等特性，电缆可根据用户需要设计编制加入多芯控制电缆及光纤通讯即制成高压动力、多芯控制及光纤通讯组合扁平电缆。产品广泛用于电力、冶金、石油化工、矿山、水泥、船舶工业、港口及移动设备制造等行业。

This product is suitable for high-voltage flat cables used for connecting stackers, reclaimers, and transformers on AC rated voltage 6/10KV material yards and docks. The conductor adopts a tin plated soft core structure, and the conductor J-edge is made of silicone rubber J-edge material. The cable has characteristics such as high temperature resistance, cold resistance, oil resistance, corrosion resistance, and soft wear resistance and tensile strength. The cable can be designed and compiled according to user needs by adding multi-core control cables and fiber optic communication to make high-voltage power, multi-core control, and fiber optic communication combination flat cables. The product is widely used in industries such as power, metallurgy, petrochemicals, mining, cement, shipbuilding, ports, and mobile equipment manufacturing.

注：机上固定敷设软电缆参照D 页章节阻燃耐热丁腈电力软电缆及D 页D三章节阻燃耐热丁腈控制软电缆。

Note: For the fixed laying of flexible cables on the machine, refer to Chapter D for flame-retardant and heat-resistant nitrile power flexible cables and Chapter D for flame-retardant and heat-resistant nitrile control flexible cables.

二、产品执行标准

2、 Product execution standards

Q/AT2005-4标准

Q/AT2005-4 standard

阻燃性能试验执行GB12666.5-90规定

The flame retardant performance test shall comply with the provisions of GB12666.5-90

三、基本电缆规格及结构参数

3、 Basic cable specifications and structural parameters

移动设备卷筒用6KV高压扁平电缆

6KV High Voltage Flat Cable for Mobile Equipment Rollers

型号	电压KV	电缆规格mm2	电缆外型尺寸㎜	电缆弯曲半径㎜	电缆参考重量kg/m
YJGCFPB	6	3×16+3×16/3	67×27	540	3.0200
YJGCFPB	6	3×25+3×16/3	78×29	580	4.1700
YJGCFPB	6	3×35+3×16/3	80×31	620	4.6850
YJGCFPB	6	3×50+3×16/3	92×35	700	5.9860
YJGCFPB	6	3×70+3×16/3	95×37	740	6.7120
YJGCFPB	6	3×95+3×16/3	103×39	780	8.0120
YJGCFPB	6	4×16	85×27	540	3.8140
YJGCFPB	6	4×25	101×29	580	5.3210
YJGCFPB	6	4×35	105×31	620	5.9850
YJGCFPB	6	4×50	118×35	700	7.5380
YJGCFPB	6	4×70	127×37	740	8.9760
YJGCFPB	6	3×16+1×10	84×27	540	3.8570
YJGCFPB	6	3×25+1×10	89×29	580	4.9640
YJGCFPB	6	3×35+1×16	91×31	620	5.6810
YJGCFPB	6	3×50+1×25	113×35	700	7.2160
YJGCFPB	6	3×70+1×35	121×37	740	8.3180
YJGCFPB	6	3×95+1×35	127×39	780	9.5430

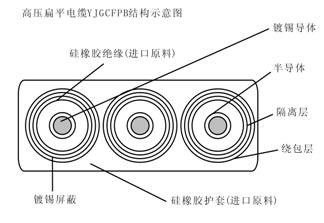

产品结构图：

移动设备卷筒用加光纤通讯6KV高压扁平电缆

型号	电压KV	电缆规格mm2	电缆外型尺寸㎜	电缆弯曲半径㎜	电缆参考重量kg/m
YJGCFPB	6	3×16+3×16/3+6FO	81×27	540	3.1489
YJGCFPB	6	3×25+3×16/3+6FO	86×29	580	4.8451
YJGCFPB	6	3×35+3×16/3+6FO	92×31	620	4.9725
YJGCFPB	6	3×50+3×16/3+6FO	106×35	700	6.3520
YJGCFPB	6	3×70+3×16/3+6FO	114×37	740	7.4290

移动设备卷筒用10KV高压扁平电缆

型号	电压KV	电缆规格mm2	电缆外型尺寸㎜	电缆弯曲半径㎜	电缆参考重量kg/m
YJGCFPB	10	3×16+3×16/3	69×28	560	3.0800
YJGCFPB	10	3×25+3×16/3	80×30	600	4.2100
YJGCFPB	10	3×35+3×16/3	82×32	640	4.7120
YJGCFPB	10	3×50+3×16/3	94×36	720	6.0200
YJGCFPB	10	3×70+3×16/3	98×38	760	6.8810
YJGCFPB	10	3×95+3×16/3	106×40	800	8.0740
YJGCFPB	10	4×16	87×28	560	3.9560
YJGCFPB	10	4×25	103×30	600	5.4380
YJGCFPB	10	4×35	108×32	640	6.0460
YJGCFPB	10	4×50	122×36	720	7.6360
YJGCFPB	10	4×70	130×38	760	9.1310
YJGCFPB	10	3×16+1×10	88×28	560	3.9010
YJGCFPB	10	3×25+1×10	93×30	600	5.0980
YJGCFPB	10	3×35+1×16	95×32	640	5.7640
YJGCFPB	10	3×50+1×25	117×36	720	7.3000
YJGCFPB	10	3×70+1×25	125×38	760	8.6340
YJGCFPB	10	3×95+1×35	131×40	800	9.6580
