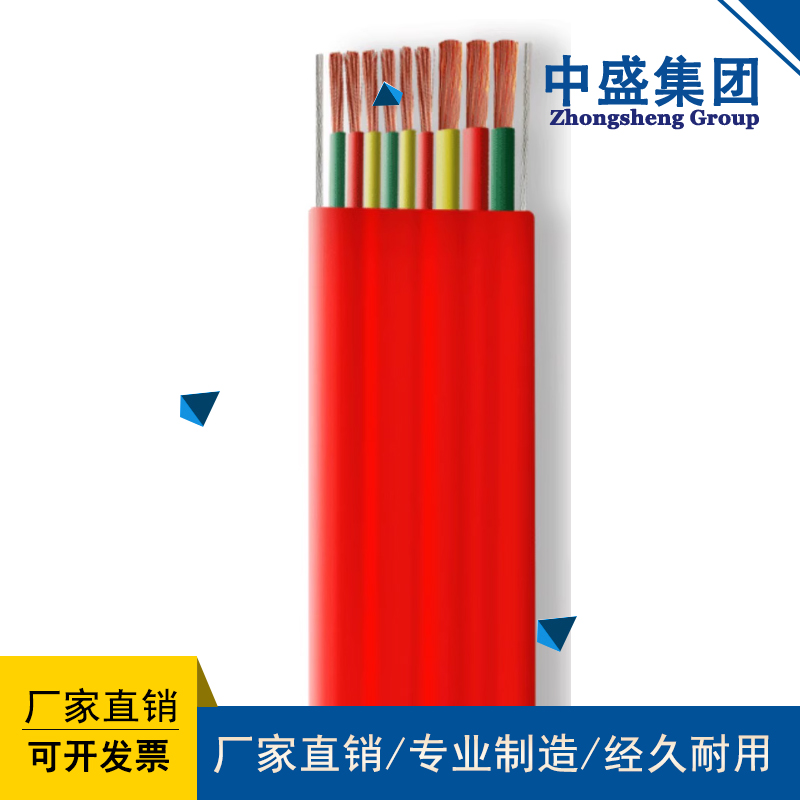

产品名称：Flat cable for driving YVFBG
浏览：
添加时间：2024-08-07 15:54:13
推荐度：

介绍：

YVFB-G电缆(YVFB扁电缆）室内及户外安装使用，耐酸碱油盐，均能防护。特别柔软，由耐折弯往返移动，平稳不扭，性能可靠，寿命长久。用于电动葫芦、行车、电梯、升降机、弹簧卷筒、物探和各种探伤设备等频繁移动式电气设备。也适合干燥或潮湿的室内或室外固定安装，也可用于非连续往复运动无强制牵引的移动安装。

YVFB-G cable (YVFB flat cable) is suitable for indoor and outdoor installation, and is resistant to acid, alkali, oil and salt, providing protection. Extremely soft, with resistance to bending and back and forth movement, smooth and non twisting, reliable performance, and long service life. Used for frequent mobile electrical equipment such as electric hoists, cranes, elevators, lifts, spring drums, geophysical and various non-destructive testing equipment. It is also suitable for fixed installation indoors or outdoors in dry or humid conditions, and can also be used for non continuous reciprocating motion without forced traction for mobile installation.

●产品特性

● Product features

用于控制和供电，应用于较小机械拉伸应力与动态应力混合的拖令系统中。在港口设备上使用的拖令扁电缆，这种电缆具有特别良好的柔韧性和动平衡性，该型电缆的特点包括：

Used for control and power supply, applied in drag systems with a mixture of small mechanical tensile stress and dynamic stress. The towing flat cable used in port equipment has particularly good flexibility and dynamic balance. The characteristics of this type of cable include:

1、动力电压等级有0.5kV和1kV；

1. The power voltage levels are 0.5kV and 1kV;

2、动力线截面积从1～95mm²、芯数从4~36芯；

2. The cross-sectional area of the power line ranges from 1 to 95mm ², and the number of cores ranges from 4 to 36;

3、电缆具有非常的柔韧性和抗拉能力和动平衡能力；

3. Cables have great flexibility, tensile strength, and dynamic balancing ability;

4、电缆综合使用寿命得到成倍延长。

4. The comprehensive service life of cables has been doubled.

●产品结构

● Product Structure

多股超裸铜丝绞合导体，导体结构根据VDE 0295第6类/IEC 60228 第6类规定

Stranded multi strand ultra bare copper wire conductor, conductor structure according to VDE 0295 Class 6/IEC 60228 Class 6 regulations

特种PVC芯线

Special PVC core wire

芯线颜色：

Core wire color:

5芯及其以下，彩色芯线，VDE 0293规定，

5-core and below, colored core wire, VDE 0293 regulations,

6芯及其以上，黑色芯线，白色数字连续打标

6-core or above, black core wire, continuous white number marking

特殊无纺物包覆，作为在芯线和护套间的缓冲层及承载层。（中间区域中心麻承载芯）

Special non-woven material coating, used as a buffer layer and load-bearing layer in the core wire and protective sleeve. (Central hemp load-bearing core in the middle area)

加强件：镀锌软钢丝绳(自由悬挂超过80米时)

Reinforcement: Galvanized soft steel wire rope (when freely suspended for more than 80 meters)

特种PVC护套(耐寒性极强)

Special PVC sheath (extremely cold resistant)

外护套颜色：黑色

Outer sheath color: black

●使用特性

● Usage characteristics

使用环境温度：丁晴复合物-40℃　-　90℃；聚氯乙烯-15℃　-　70℃

Environmental temperature for use: Ding Qing composite -40 ℃ -90 ℃; Polyvinyl chloride -15 ℃ -70 ℃

允许弯曲半径：不小于电缆外径（厚度）的15倍。

Allowable bending radius: not less than 15 times the outer diameter (thickness) of the cable.
