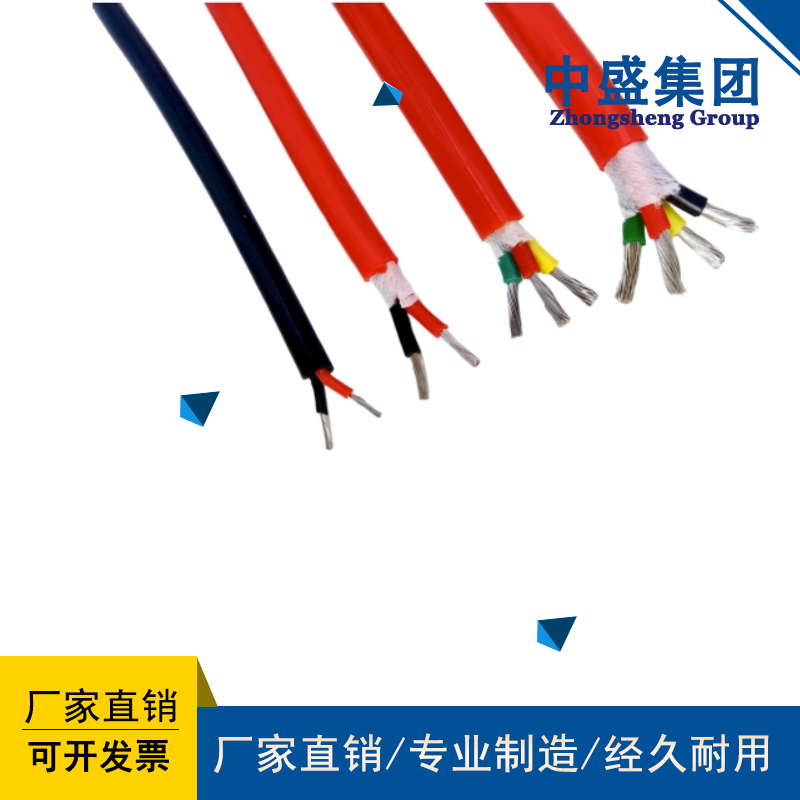

产品名称：High temperature cableYGCF4RP
浏览：
添加时间：2024-08-07 16:15:15
推荐度：

介绍：

一：产品特点及用途：本产品适用于交流额定电压450/750V及以下电器仪表的连接线和自动控制系统的传输线，具有耐油、防水、耐磨、耐酸碱及各种腐蚀性气体、耐老化、不燃烧等优异性能，适合冶金、电力、石化等行业。

1： Product features and uses: This product is suitable for connecting wires of electrical instruments with AC rated voltage of 450/750V and below, as well as transmission lines of automatic control systems. It has excellent properties such as oil resistance, waterproofing, wear resistance, acid and alkali resistance, various corrosive gases resistance, aging resistance, non combustion, etc., and is suitable for industries such as metallurgy, power, and petrochemicals.

二：产品执行标准

2： Product execution standards

Q/HHTZH004.1

阻燃耐火特性试验执行GB12666-90标准

The flame retardant and fire-resistant characteristics test shall comply with GB12666-90 standard

三：使用特性

3： Usage characteristics

1．交流额定电压：U0/U 450/750KV

1. Rated AC voltage: U0/U 450/750KV

2． ***高工作温度：聚全氟乙丙烯（F46）绝缘不超过200℃

2. Maximum operating temperature: Polyethylene terephthalate (F46) insulation not exceeding 200 ℃

可溶性聚四氟乙烯（PFA）绝缘不超过260℃

Soluble polytetrafluoroethylene (PFA) insulation not exceeding 260 ℃

3． ***低环境温度：聚氯乙烯护套：固定敷设-40℃，非固定敷设-15℃

3. Minimum ambient temperature: PVC sheath: fixed installation -40 ℃, non fixed installation -15 ℃

氟塑料及硅橡胶护套：固定敷设-60℃，非固定敷设-20℃

Fluoroplastic and silicone rubber sheath: fixed installation -60 ℃, non fixed installation -20 ℃

4．电缆安装敷设温度应不低于0℃（氟塑料、硅橡胶和丁月青护套电缆不低于-25℃）。

4. The temperature for cable installation and laying should not be lower than 0 ℃ (for fluoroplastic, silicone rubber, and PTFE sheathed cables, it should not be lower than -25 ℃).

5．电缆允许弯曲半径：非铠装电缆***小为电缆外径的6倍

5. Allowable bending radius for cables: The minimum allowable bending radius for non armored cables is 6 times the outer diameter of the cable

铜带屏蔽或钢带铠装电缆***小为电缆外径的12倍

The minimum requirement for copper tape shielded or steel tape armored cables is 12 times the outer diameter of the cable

氟塑料绝缘和护套电缆***小为电缆外径的8倍

Fluoroplastic insulated and sheathed cables shall have a minimum outer diameter of 8 times the cable diameter

四：其他阻燃耐高温电缆（控制型）型号及名称

4： Other models and names of flame-retardant and high-temperature resistant cables (control type)

（ZR192-）KFF 氟46（进口PFA）绝缘和护套控制电缆

(ZR192-) KFF Fluorine-46 (imported PFA) insulated and sheathed control cable

（ZR192-）KFFP 氟46（进口PFA）绝缘和护套铜丝编织屏蔽控制电缆

(ZR192-) KFFP Fluorine-46 (imported PFA) insulated and sheathed copper wire braided shielded control cable

（ZR192-）KFFR 氟46（进口PFA）绝缘和护套控制软电缆

(ZR192-) KFFR Fluorine-46 (imported PFA) insulated and sheathed control flexible cable

（ZR192-）KFF22 氟46（进口PFA）绝缘和护套钢带铠装控制电缆

(ZR192-) KFF22 Fluorine-46 (imported PFA) insulated and sheathed steel tape armored control cable

（ZR192-）KFFRP 氟46（进口PFA）绝缘和护套铜丝编织屏蔽控制软电缆

(ZR192-) KFFRP fluorine 46 (imported PFA) insulated and sheathed copper wire braided shielding control flexible cable

（ZR192-）KFFP1 氟46（进口PFA）绝缘和护套镀锡铜编织屏蔽控制软电缆

(ZR192-) KFFP1 Fluorine-46 (imported PFA) Insulated and Sheathed Tin Plated Copper Braided Shielded Control Flexible Cable

（ZR192-）KFFP2 氟46（进口PFA）绝缘和护套铜带绕包屏蔽控制电缆

(ZR192-) KFFP2 Fluorine-46 (imported PFA) insulated and sheathed copper tape wrapped shielded control cable

（ZR192-）KFFRP2 氟46（进口PFA）绝缘和护套铜带绕包屏蔽控制软电缆

(ZR192-) KFFRP2 Fluorine-46 (imported PFA) insulated and sheathed copper tape wrapped shielded control flexible cable

（ZR192-）KFV 氟46（进口PFA）绝缘聚氯乙烯护套控制电缆

(ZR192-) KFV Fluorine-46 (imported PFA) insulated PVC sheathed control cable

（ZR192-）KFVR 氟46（进口PFA）绝缘聚氯乙烯护套控制软电缆

(ZR192-) KFVR Fluorine-46 (imported PFA) insulated PVC sheathed control flexible cable

（ZR192-）KFVP 氟46（进口PFA）绝缘铜丝编织屏蔽聚氯乙烯护套控制电缆

(ZR192-) KFVP Fluorine-46 (imported PFA) insulated copper wire braided shielding PVC sheathed control cable

（ZR192-）KFVRP 氟46（进口PFA）绝缘铜丝编织屏蔽聚氯乙烯护套控制软电缆

(ZR192-) KFVRP Fluorine-46 (imported PFA) Insulated Copper Wire Braided Shielded PVC Sheath Control Flexible Cable

（ZR192-）KFVP2 氟46（进口PFA）绝缘铜带绕包屏蔽聚氯乙烯护套控制电缆

(ZR192-) KFVP2 Fluorine-46 (imported PFA) insulated copper tape wrapped shielding PVC sheathed control cable

（ZR192-）KFV22 氟46（进口PFA）绝缘聚氯乙烯外护套钢带铠装控制电缆

(ZR192-) KFV22 Fluorine-46 (imported PFA) insulated PVC outer sheath steel tape armored control cable

（ZR192-）KFRV22 氟46（进口PFA）绝缘聚氯乙烯外护套钢带铠装控制软电缆

(ZR192-) KFRV22 Fluorine-46 (imported PFA) insulated PVC outer sheath steel tape armored control flexible cable

（ZR192-）KFVP2-22 氟46（进口PFA）绝缘铜带绕包屏蔽钢带铠装聚氯乙烯护套控制电缆

(ZR192-) KFVP2-22 Fluorine-46 (imported PFA) insulated copper tape wrapped shielding steel tape armored PVC sheathed control cable

（ZR192-）KFGR（YGC-KF46R）氟46（进口PFA）绝缘硅橡胶护套控制软电缆

(ZR192-) KFGR (YGC-KF46R) Fluorine-46 (imported PFA) insulated silicone rubber sheathed control flexible cable

（ZR192-）KFGPR（YGC-KF46RP）氟46（进口PFA）绝缘硅橡胶护套铜丝编织屏蔽控制软电缆

(ZR192-) KFGPR (YGC-KF46RP) Fluorine-46 (imported PFA) insulated silicone rubber sheathed copper wire braided shielding control flexible cable

备注：采用进口PFA材料型号前加ZR192，需要阻燃护套型号前加ZR，导体线芯中铜丝可以采用镀锡。

Note: ZR192 should be added before the imported PFA material model, and ZR should be added before the flame-retardant sheath model. The copper wire in the conductor core can be tinned.

五：代号名称和含义

5： Code name and meaning

表2

Table 2

项目代号说明

Project code description

阻燃特性 ZR 分A、B、C级阻燃

Flame retardant characteristics: ZR is classified into A, B, and C levels of flame retardancy

系列代号 K 控制电缆

Series code K control cable

绝缘材料 F 聚全氟乙丙烯（F46）***高工作温度200℃

Insulation material F perfluoroethylene propylene (F46) with a maximum working temperature of 200 ℃
