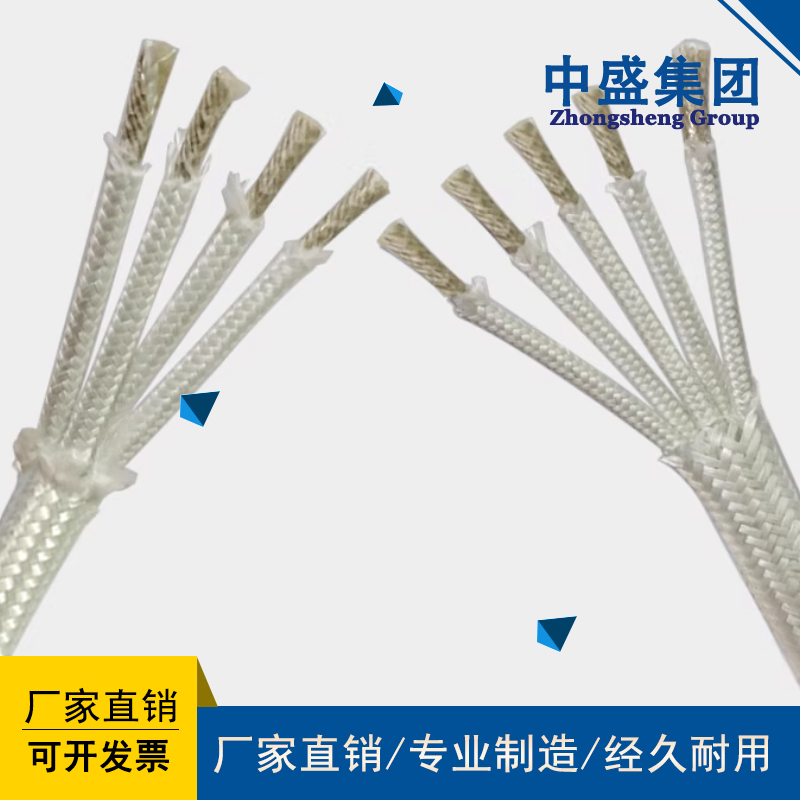

产品名称：KHFRP oil and high temperature resistant cable
浏览：
添加时间：2024-08-07 17:00:41
推荐度：

介绍：

产品用途：khfrp耐油耐高温电缆适用于交流额定电压450/750V 及以下要求耐高温、低温、耐老化、阻燃等各种恶劣环境中作控制、监控回路、电气仪表连接和自动化系统的信号传输。本产品具有耐高温、耐酸、耐碱、耐油、耐氧化剂等特性，型还具有抗干扰性能；可广泛应用于发电、石油、化工、冶金、钢铁等行业。

Product use: KHFRP oil and high temperature resistant cable is suitable for signal transmission in various harsh environments with AC rated voltage requirements of 450/750V and below, including high temperature, low temperature, aging resistance, flame retardancy, etc. It is used for control, monitoring circuits, electrical instrument connections, and automation systems. This product has characteristics such as high temperature resistance, acid resistance, alkali resistance, oil resistance, and oxidation resistance. It also has anti-interference performance; It can be widely applied in industries such as power generation, petroleum, chemical, metallurgy, and steel.

khfrp耐油耐高温电缆使用特性：

Usage characteristics of KHFRP oil and high temperature resistant cables:

(1) 导体高工作温度：200℃

(1) High operating temperature of conductor: 200 ℃

(2) 使用环境温度：固定敷设-40～+105℃

(2) Operating environment temperature: Fixed installation -40~+105 ℃

(3) 允许弯曲半径：不小于电缆外径的6倍，铜带及铠装电缆不小于电缆外径的12倍。

(3) Allowable bending radius: not less than 6 times the outer diameter of the cable, and not less than 12 times the outer diameter of the cable for copper tape and armored cables.

khfrp耐油耐高温电缆产品型号及名称：

KHFRP oil and high temperature resistant cable product model and name:

型号 Model	名称name	使用范围Scope of use
KHFV	氟塑料J缘PVC护套控制电缆 Fluoroplastic J-edge PVC sheathed control cable	敷设在室内、电缆沟、管道固定场合 Installed indoors, in cable trenches, and in fixed pipeline locations
KHFVP	氟塑料J缘PVC护套铜丝编织控制电缆 Fluoroplastic J-edge PVC sheathed copper wire braided control cable
KHFVP2	氟塑料J缘PVC护套铜带控制电缆 Fluoroplastic J-edge PVC sheathed copper strip control cable
KHFV22	氟塑料J缘PVC护套钢带铠装控制电缆 Fluoroplastic J-edge PVC sheathed steel tape armored control cable	敷设在室内、电缆沟、管道、直埋等能承受较大机械外力固定场合 Installed indoors, in cable trenches, pipelines, direct burial, and other fixed locations that can withstand significant mechanical external forces
KHFVP22	氟塑料J缘PVC护套铜丝编织钢带铠装控制电缆 Fluoroplastic J-edge PVC sheathed copper wire braided steel tape armored control cable
KHFVP2-22	氟塑料J缘PVC护套铜带钢带铠装控制电缆 Fluoroplastic J-edge PVC sheathed copper tape steel tape armored control cable
KHFVR	氟塑料J缘PVC护套软控制电缆 Fluoroplastic J-edge PVC sheathed soft control cable	或敷设在室内移动要求柔软等场合 Or it can be installed indoors in situations where flexibility is required for mobility
KHFVRP	氟塑料J缘PVC护套编织软控制电缆 Fluoroplastic J-edge PVC sheathed braided soft control cable

khfrp耐油耐高温电缆产品技术参数：Technical parameters of KHFRP oil and high temperature resistant cable products:

标称截面 mm2 Nominal cross-section	0.5	0.75	1.0	1.5	2.5	4	6
20℃时导体电阻不大于Ω/km At 20 ℃, the conductor resistance is not greater than	A、B类	36.0	24.5	18.1	12.1	7.41	4.61	3.08
R类Class R	39.0	26.0	19.5	13.3	7.98	4.95	3.30
20℃时J缘电阻J-edge resistance at 20 ℃	≥50MΩ·km
交流试验电压50Hz AC test voltage 50Hz	2.5kV/5min不击穿
阻燃特性Flame retardant properties	通过GB/T18380.3-2001成束燃烧A类试验 Through GB/T18380.3-2001 Bundle Combustion Class A Test
