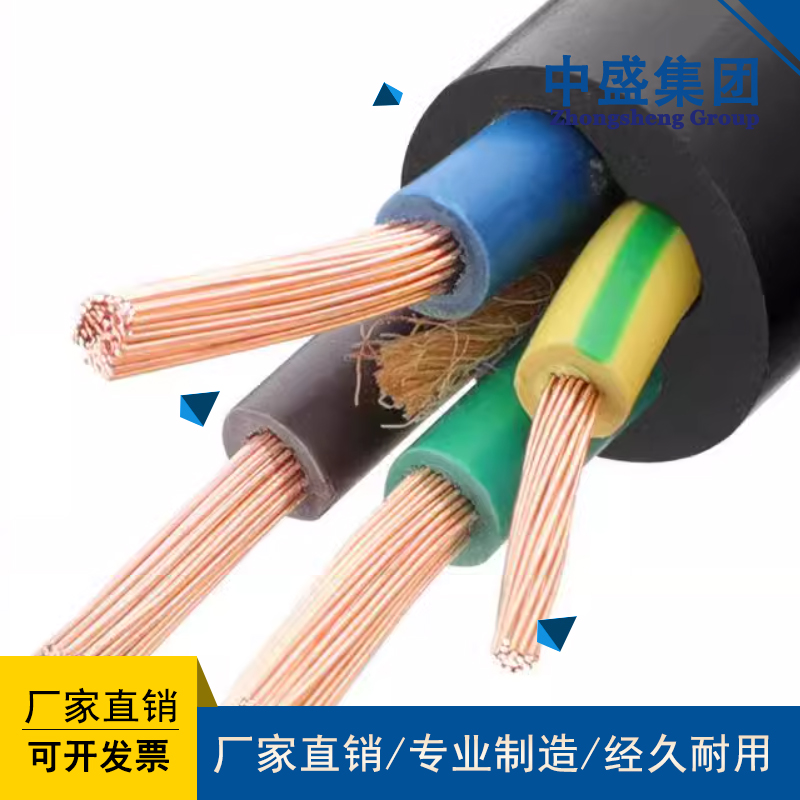

产品名称：Cable for frequency converter BPYJVPX13R
浏览：
添加时间：2024-08-12 11:16:36
推荐度：

介绍：

产品简介

Product Introduction

BPYJVPX13R变频电缆详细介绍该产品具有很强的耐变频引起的脉冲电压冲击性能，并且具有优异电磁屏蔽性能，可抗电磁干扰，确保系统安全可靠运行。同时，我公司能够根据用户和特殊环境使用需要，能设计制造具有低烟无卤、阻燃、耐火等性能的特种变频器用电缆。该产品适用于10kV及以下变频控制系统中作为输配电或电气连接用。

BPYJVPX13R frequency conversion cable detailed introduction: This product has strong resistance to pulse voltage impact caused by frequency conversion, and excellent electromagnetic shielding performance, which can resist electromagnetic interference and ensure safe and reliable operation of the system. At the same time, our company can design and manufacture special frequency converter cables with low smoke and halogen-free, flame retardant, fire-resistant and other properties according to the needs of users and special environments. This product is suitable for use as a transmission and distribution or electrical connection in 10kV and below frequency conversion control systems.

BPYJVPX13R变频电缆详细介绍

BPYJVPX13R Variable Frequency Cable Detailed Introduction

变频电机电缆

Variable frequency motor cable

一、适用范围

1、 Scope of application

该产品具有很强的耐变频引起的脉冲电压冲击性能，并且具有优异电磁屏蔽性能，可抗电磁干扰，确保系统安全可靠运行。同时，我公司能够根据用户和特殊环境使用需要，能设计制造具有低烟无卤、阻燃、耐火等性能的特种变频器用电缆。该产品适用于10kV及以下变频控制系统中作为输配电或电气连接用。

This product has strong resistance to pulse voltage impact caused by frequency conversion, and excellent electromagnetic shielding performance, which can resist electromagnetic interference and ensure the safe and reliable operation of the system. At the same time, our company can design and manufacture special frequency converter cables with low smoke and halogen-free, flame retardant, fire-resistant and other properties according to the needs of users and special environments. This product is suitable for use as a transmission and distribution or electrical connection in 10kV and below frequency conversion control systems.

二、执行标准

2、 Execution standards

本产品执行企业标准Q/320282 BND 017-2007。

This product complies with the enterprise standard Q/320282 BND 017-2007.

三、变频电机电缆型号

3、 Variable frequency motor cable model

BPYJVPP2 交联聚乙烯绝缘铜丝编织分相屏蔽、铜带总屏蔽聚氯乙烯护套同心式变频电缆

BPYJVPP2 Cross linked Polyethylene Insulated Copper Wire Braided Phase Separation Shielding, Copper Strip Total Shielding, PVC Sheath Concentric Variable Frequency Cable

BPYJVP2P2 交联聚乙烯绝缘铜带分相屏蔽、铜带总屏蔽聚氯乙烯护套同心式变频电缆

BPYJVP2P2 Cross linked polyethylene insulated copper tape phase shielding, copper tape total shielding, PVC sheathed concentric frequency conversion cable

BPYJVP1P2 交联聚乙烯绝缘铜丝、铜带疏绕分相屏蔽、铜带总屏蔽聚氯乙烯护套同心式变频电缆

BPYJVP1P2 Cross linked polyethylene insulated copper wire, copper tape sparse winding phase shielding, copper tape total shielding, PVC sheathed concentric frequency conversion cable

BPYJVPP2-22 交联聚乙烯绝缘铜丝编织分相屏蔽、铜带总屏蔽聚氯乙烯护套同心式变频电缆

BPYJVPP2-22 Cross linked polyethylene insulated copper wire braided phase separated shielding, copper tape total shielding, PVC sheathed concentric frequency conversion cable

BPYJVP2P2-22 交联聚乙烯绝缘铜带分相屏蔽、铜带总屏蔽聚氯乙烯护套同心式变频电缆

BPYJVP2P2-22 Cross linked polyethylene insulated copper tape phase shielding, copper tape total shielding, PVC sheathed concentric frequency conversion cable

BPYJVP1P2-22 交联聚乙烯绝缘铜丝、铜带疏绕分相屏蔽、铜带总屏蔽钢带铠装型聚氯乙烯护套同心式变频电缆钢带铠装型

BPYJVP1P2-22 Cross linked polyethylene insulated copper wire, copper tape sparse winding phase shielding, copper tape total shielding, steel tape armored type, PVC sheathed concentric frequency conversion cable, steel tape armored type

四、使用特性

4、 Usage characteristics

1、电缆导体允许*工作温度为：90℃。

1. The allowable working temperature for cable conductors is 90 ℃.

2 、电缆导体允许短路温度为：不超过250℃，持续时间不超过5秒。

2. The allowable short-circuit temperature for cable conductors is: not exceeding 250 ℃, with a duration not exceeding 5 seconds.

3 、电缆敷设环境温度应不低于0℃，低于0℃应预先加温。

3. The temperature of the cable laying environment should not be lower than 0 ℃, and if it is lower than 0 ℃, it should be preheated.

4 、电缆敷设时zui小弯曲半径：软结构导体电缆不小于8倍电缆外径；硬结构导体电缆不小于15倍电缆外径

4. The minimum bending radius for cable laying is not less than 8 times the outer diameter of the soft structure conductor cable; Hard structured conductor cables shall not be less than 15 times the outer diameter of the cable
