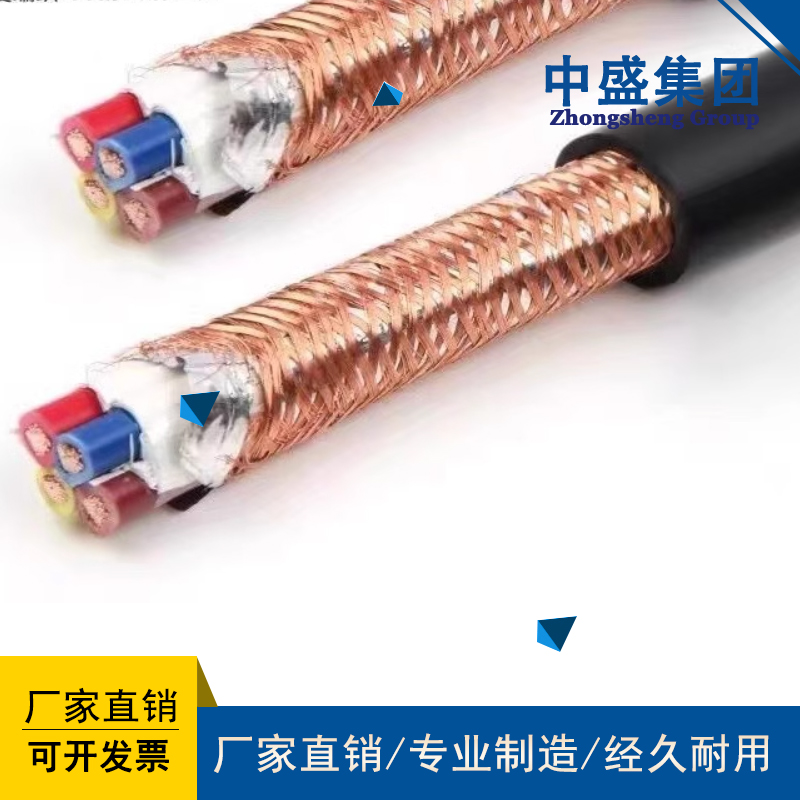

产品名称：Flame retardant computer cableZRC-DJYP2VP2
浏览：
添加时间：2024-08-12 10:28:06
推荐度：

介绍：

产品简介

Product Introduction

ZRC-DJYP2VP2阻燃计算机电缆.制造商选用介点常数小的高压聚乙烯绝缘。采用对绞、对屏、总屏（或三线组绞合、组屏蔽、组屏总屏）等结构形式，具有介质损耗小，传输信号能力强、抗干扰性能好等特点，能可靠传输微弱模拟信号或数字信号，可广泛地用于发电、冶金、石油、化工、轻纺等部门的检测和控制用计算机系统或自动化仪表装置，以及一般的工业计算机用。

ZRC-DJYP2VP2 flame-retardant computer cable. The manufacturer uses high-voltage polyethylene insulation with a low dielectric constant. Adopting structural forms such as twisted pair, screen pair, and total screen (or three wire twisted pair, group shielding, group screen total screen), it has the characteristics of low dielectric loss, strong signal transmission ability, and good anti-interference performance. It can reliably transmit weak analog signals or digital signals, and can be widely used in computer systems or automation instrument devices for detection and control in power generation, metallurgy, petroleum, chemical, textile and other departments, as well as general industrial computers.

详情介绍

Details Introduction

ZRC-DJYP2VP2阻燃计算机电缆.制造商一、用途：，选用介点常数小的高压聚乙烯绝缘。采用对绞、对屏、总屏(或三线组绞合、组屏蔽、组屏总屏)等结构形式，具有介质损耗小，传输信号能力强、抗干扰性能好等特点，能可靠传输微弱模拟信号或数字信号，可广泛地用于发电、冶金、石油、化工、轻纺等部门的检测和控制用计算机系统或自动化仪表装置，以及一般的工业计算机用。

ZRC-DJYP2VP2 flame-retardant computer cable. Manufacturer 1. Purpose: High voltage polyethylene insulation with low dielectric constant is selected. Adopting structural forms such as twisted pair, screen pair, and total screen (or three wire twisted pair, group shielding, group screen total screen), it has the characteristics of low dielectric loss, strong signal transmission ability, and good anti-interference performance. It can reliably transmit weak analog signals or digital signals, and can be widely used in computer systems or automation instrument devices for detection and control in power generation, metallurgy, petroleum, chemical, textile and other departments, as well as general industrial computers.

二、产品代号

2、 Product code

DJ-(系列代号)电子计算机用屏蔽电缆

DJ - (series code) shielded cable for electronic computers

Y-(绝缘代号)高压聚乙烯

Y - (Insulation Code) High Voltage Polyethylene

F-(绝缘代号)氟塑料

F - (Insulation Code) Fluoroplastic

V-(护套代号)聚氯乙烯

V - (sheath code) polyvinyl chloride

R- 表示多股软线芯

R - represents multiple strands of soft wire cores

P-(屏蔽代号)铜网屏蔽

P - (shielding code) copper mesh shielding

P1镀锡铜网屏蔽

P1 tin plated copper mesh shielding

P2铜带屏蔽

P2 copper strip shielding

P3铝塑复合膜屏蔽

P3 aluminum-plastic composite film shielding

电缆名称-计算机电缆

Cable Name - Computer Cable

电缆屏蔽-铜丝编织屏蔽P-铜带屏蔽P2-铝塑复合带屏蔽P3

Cable shielding - Copper wire braided shielding P-Copper tape shielding P2 Aluminum plastic composite tape shielding P3

电缆绝缘-聚氯乙烯V-聚乙烯Y-交联聚乙烯YJ-氟塑料F、F46

Cable insulation - polyvinyl chloride V-polyethylene Y-cross-linked polyethylene YJ fluoroplastic F, F46

电缆铠装-钢带铠装22、23-钢丝铠装32、33、42、43

Cable Armor - Steel Strip Armor 22, 23- Steel Wire Armor 32, 33, 42, 43

电缆导体-单根导体A-7根导体B-多根导体R

Cable conductor - single conductor A-7 conductors B - multiple conductors R

电缆阻燃-普通阻燃ZR（ZRA、ZRB、ZRC）-低烟无卤阻燃WDZ、DWZ

Cable flame retardant - ordinary flame retardant ZR (ZRA, ZRB, ZRC) - low smoke halogen-free flame retardant WDZ, DWZ

电缆耐火-电缆耐火NH

Cable Fire Resistance - Cable Fire Resistance NH

电缆防爆-电缆防爆IA

Cable Explosion proof - Cable Explosion proof IA

本产品适用于额定电压300/500v及以下防干扰性能要求较高的电子计算机、检测仪器、仪表的连接。

This product is suitable for connecting electronic computers, testing instruments, and meters with high anti-interference performance requirements for rated voltages of 300/500V and below.

1. 电缆导体的*工作温度：聚氯乙烯有70℃、105℃两种；聚乙烯绝缘为70℃；交联聚氯乙烯绝缘为90℃。

1. Working temperature of cable conductor: PVC has two types: 70 ℃ and 105 ℃; Polyethylene insulation at 70 ℃; Cross linked polyvinyl chloride insulation is 90 ℃.

2. 电缆允许在环境温度-40℃～50℃的条件下固定敷设使用，敷设时的环境应不底于0℃

2. The cable is allowed to be fixedly laid and used under the condition of ambient temperature of -40 ℃ to 50 ℃, and the environment during laying should not be lower than 0 ℃

3. 铜带屏蔽结构的电缆，敷设时的弯曲半径应不小于电缆外径的12倍，其他电缆敷设时的弯曲半径应不小于电缆外径的6倍。

3. For cables with copper tape shielding structure, the bending radius during laying should not be less than 12 times the outer diameter of the cable, and for other cables, the bending radius during laying should not be less than 6 times the outer diameter of the cable.

Flame retardant computer shielded cable, also known as twisted pair shielded cable | computer shielded cable | twisted pair shielded cable | split screen total screen cable | double screen twisted pair shielded flame-retardant cable | computer shielded control cable | electronic computer shielded cable | ZR-DJYJPVP electronic computer cable | computer shielded soft control cable | flame-retardant computer cable | flame-retardant electronic computer cable | shielded multi-core cable ZR-JRPVP distributed signal cable computer cable; Computer control cable; Computer signal cable; Shielding computer cables; Armored computer cable; Soft core computer cable; Flame retardant computer cable

DJYPV 聚乙烯绝缘对绞铜线编织分屏蔽聚氯乙烯护套计算机电缆

DJYPV polyethylene insulated twisted pair copper wire braided shielded polyvinyl chloride sheathed computer cable

DJYVP 聚乙烯绝缘对绞铜线编织总屏蔽聚氯乙烯护套计算机电缆

DJYVP polyethylene insulated twisted pair copper wire braided total shielding PVC sheathed computer cable

DJYPVP 聚乙烯绝缘对绞铜线编织分屏蔽及总屏蔽聚氯乙烯护套计算机电缆

DJYPVP polyethylene insulated twisted pair copper wire braided shield and total shield PVC sheathed computer cable

DJYPV22 聚乙烯绝缘对绞铜线编织分屏蔽聚氯乙烯护套钢带铠装计算机电缆

DJYPV22 polyethylene insulated twisted pair copper wire braided shielded polyvinyl chloride sheathed steel tape armored computer cable

DJYVP22 聚乙烯绝缘对绞铜线编织总屏蔽聚氯乙烯护套钢带铠装计算机电缆

DJYVP22 polyethylene insulated twisted pair copper wire braided total shielding PVC sheathed steel tape armored computer cable

DJYPVP22 聚乙烯绝缘对绞铜线编织分屏蔽及总屏蔽聚氯乙烯护套钢带铠装计算机电缆

DJYPVP22 polyethylene insulated twisted pair copper wire braided shielding and total shielding PVC sheathed steel tape armored computer cable

1、名称:计算机电缆

1. Name: Computer Cable

2、型号:DJYJVP3、DJYJP3V、DJYJP3VP3、DJYJPV、DJYJVP、DJYJPVP、DJYJPV22、DJYJVP22、DJYJPVP22、ZR-DJYJPV、ZR-DJYJVP、ZR-DJYJPVP、DJYJPV32、DJYJVP32、DJYJPVP32

2. Model: DJYJVP3 DJYJP3V、DJYJP3VP3、DJYJPV、DJYJVP、DJYJPVP、DJYJPV22、DJYJVP22、DJYJPVP22、ZR-DJYJPV、ZR-DJYJVP、ZR-DJYJPVP、DJYJPV32、DJYJVP32、DJYJPVP32

3、本产品适用于额定电压450/750V及以下电子计算机系统(DCS)的数据传输和抗干扰要求较高的检测仪器仪表，以及其他自控系统的弱信号连接

3. This product is suitable for testing instruments and meters with high requirements for data transmission and anti-interference in electronic computer systems (DCS) with rated voltage of 450/750V and below, as well as weak signal connections in other self-control systems
