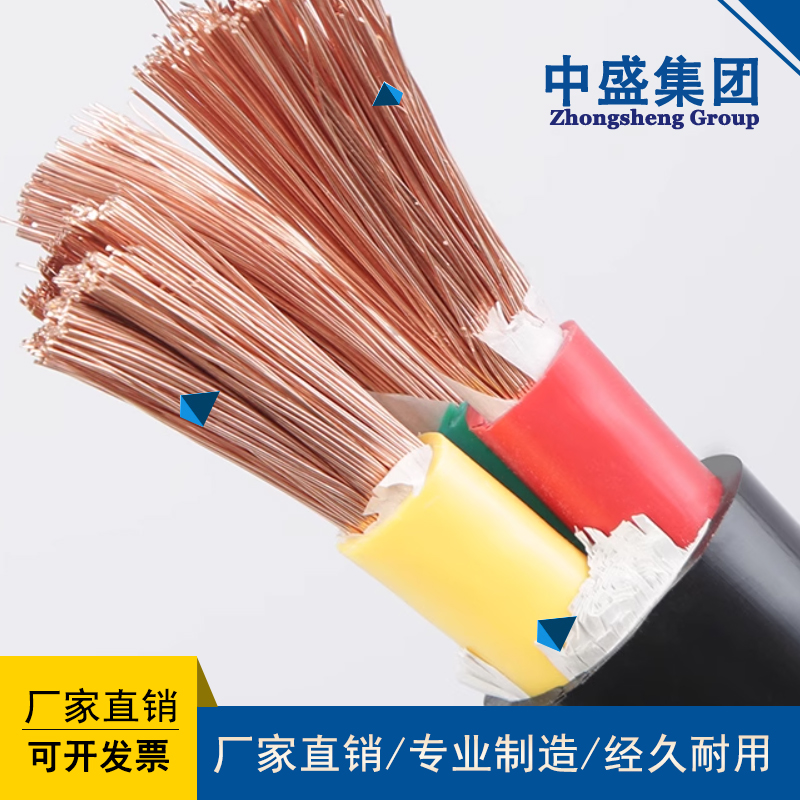

变频电缆ZR-BPYJVP12R

Variable frequency cable ZR-BPYJVP12R

【简单介绍】

[Brief Introduction]

ZR-BPYJVP12R变频电缆适用于交流额定电压0.6/1KV及以下变频控制系统作供电电缆或电气连接，产品具有较强的耐电压冲击性，能经受变频时的脉冲电压，电缆具有良好的屏蔽性，并有效消除电磁干扰，降低变频电机噪音，保证系统稳定运行。广泛用于冶金、电力、石化等行业。

ZR-BPYJVP12R frequency conversion cable is suitable for use as a power supply cable or electrical connection in frequency conversion control systems with AC rated voltage of 0.6/1KV and below. The product has strong resistance to voltage impact and can withstand pulse voltage during frequency conversion. The cable has good shielding and effectively eliminates electromagnetic interference, reduces frequency conversion motor noise, and ensures stable system operation. Widely used in industries such as metallurgy, power, and petrochemicals.

1：变频电缆简介：

1: Introduction to Variable Frequency Cable:

本产品适用于交流额定电压0.6/1KV及以下变频控制系统作供电电缆或电气连接，产品具有较强的耐电压冲击性，能经受变频时的脉冲电压，电缆具有良好的屏蔽性，并有效消除电磁干扰，降低变频电机噪音，保证系统稳定运行。广泛用于冶金、电力、石化等行业。

This product is suitable for use as a power cable or electrical connection in frequency conversion control systems with an AC rated voltage of 0.6/1KV and below. The product has strong resistance to voltage surges and can withstand pulse voltages during frequency conversion. The cable has good shielding properties and effectively eliminates electromagnetic interference, reduces frequency conversion motor noise, and ensures stable system operation. Widely used in industries such as metallurgy, power, and petrochemicals.

2：变频电缆使用特性

2: Characteristics of using variable frequency cables

1．交流额定电压：U0/U 0.6/1KV ***高工作温度：硅橡胶绝缘180℃ 氟46绝缘200℃和260℃两种聚氯乙烯绝缘70℃ 交联聚乙烯90℃ ***低环境温度：敷设电缆时的环境温度应不低于-40℃；聚氯乙烯护套电缆不低于0℃。

1. AC rated voltage: U0/U 0.6/1KV Maximum operating temperature: silicone rubber insulation 180 ℃ Fluorine 46 insulation 200 ℃ and 260 ℃ Two types of PVC insulation 70 ℃ Cross linked polyethylene 90 ℃ Minimum ambient temperature: The ambient temperature during cable laying should not be lower than -40 ℃; PVC sheathed cables shall not be lower than 0 ℃.

2．电缆安装敷设温度应不低于-25℃。

2. The temperature for cable installation and laying should not be lower than -25 ℃.

3．电缆允许弯曲半径：电缆***小为电缆外径的10倍

3. Allowable bending radius for cables: The minimum allowable bending radius for cables is 10 times the outer diameter of the cable

3：ZR-BPYJVP12R 变频电缆产品用途

3: ZR-BPYJVP12R Variable Frequency Cable Product Usage

变频电缆主要用于变频电源和变频电机之间连接用的电缆,以及额定电压1KV及以下的输配电线路中,作输送电能用.尤其适用于造纸、冶金、金属加工、矿山、铁路和食品加工等行业。

Variable frequency cables are mainly used as cables for connecting variable frequency power supplies and variable frequency motors, as well as in transmission and distribution lines with a rated voltage of 1KV or below, for conveying electrical energy. They are particularly suitable for industries such as papermaking, metallurgy, metal processing, mining, railways, and food processing.

使用条件

Usage conditions

1、额定电压U0/U：0.6/1KV.

1. Rated voltage U0/U: 0.6/1KV

2、电缆导体长期允许***高温度为90度,短路时***高温度250度

2. The maximum allowable temperature for cable conductors in the long term is 90 degrees, and the maximum temperature during short circuit is 250 degrees

3、安装敷设环境温度不低于0度,固定敷设时环境温度不低于-10度.

3. The installation and laying environment temperature shall not be lower than 0 degrees, and the fixed laying environment temperature shall not be lower than -10 degrees

4、电缆允许***小弯曲半径不小于15D(D-电缆外径,mm)

4. The minimum allowable bending radius of the cable is not less than 15D (D-cable outer diameter, mm)

4：ZR-BPYJVP12R 变频电缆产品性能

4: ZR-BPYJVP12R Variable Frequency Cable Product Performance

1、 BRYJVP12R-TK、ZRBPYJVP12R-TK型设计采用符合GB/T3956-1997规定的第5类软绞合铜导体。

1. The BRYJVP12R-TK and ZRBPYJVP12R-TK designs use Class 5 soft stranded copper conductors that comply with GB/T3956-1997 regulations.

2、交联聚乙烯绝缘、耐温耐候性好。

2. Cross linked polyethylene insulation has good temperature and weather resistance.

3、低传输阻抗，电磁兼容性好。

3. Low transmission impedance, good electromagnetic compatibility.

4、低工作电容

4. Low working capacitance

5、良好的抗干扰和低辐射性能。

5. Good anti-interference and low radiation performance.

6、对称的三芯电缆结构设计，具有比四芯电缆更好的传输性能。

6. The symmetrical three core cable structure design has better transmission performance than four core cables.

5：ZR-BPYJVP12R 变频电缆型号名称

5: ZR-BPYJVP12R Variable Frequency Cable Model Name

BPYJVTP2-TK 铜芯交联聚乙烯绝缘聚氯乙烯护套铜丝缠绕铜带绕包屏蔽变频器用回路电缆。

BPYJVTP2-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper wire wrapped copper tape wrapped shielded frequency converter circuit cable.

ZRBPYJVTP2-TK铜芯交联聚乙烯绝缘阻燃聚氯乙烯护套铜丝缠绕铜带绕包屏蔽变频器用回路电缆。

ZRBPYJVTP2-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper wire wrapped copper tape wrapped shielded frequency converter circuit cable.

BPYJVP12-TK铜芯交联聚乙烯绝缘聚氯乙烯护套铜带绕包铜丝编织双重屏蔽变频器用回路电缆。

BPYJVP12-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped copper wire braided double shielded frequency converter circuit cable.

ZRBPYJVP12-TK铜芯交联聚乙烯绝缘阻燃聚氯乙烯护套铜带绕包铜丝编织双重屏蔽变频器用回路电缆。

ZRBPYJVP12-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper tape wrapped copper wire braided double shielded frequency converter circuit cable.

BPYJVPX12R-TK铜芯交联聚乙烯绝缘聚氯乙烯护套铜带绕包镀锡铜丝编织双重屏蔽变频器用回路电缆。

BPYJVPX12R-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped tin plated copper wire braided double shielded frequency converter circuit cable.

ZRBPYJVPX12R-TK铜芯交联聚乙烯绝缘阻燃聚氯乙烯护套铜带绕包镀锡铜丝编织双重屏蔽变频器用回路电缆。

ZRBPYJVPX12R-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper tape wrapped tin plated copper wire braided double shielded frequency converter circuit cable.

6：ZR-BPYJVP12R 3X185 1X95变频电缆规格范围

6: ZR-BPYJVP12R 3X185 1X95 Variable Frequency Cable Specification Range

型号芯数标称截面(MM)

Model, number of cores, nominal cross-section (mm)

BPYJVTP2-TK 3 1.5~240

ZRBPYJVTP2-TK 3 1.5~240

BPYJVP12R-TK 3 3 主线芯截面:2.5-240,副线芯截面:0.5-35

BPYJVP12R-TK 3 3 main core section: 2.5-240, secondary core section: 0.5-35

BPYJVPX12R-TK 3 3 主线芯截面:2.5-240,副线芯截面:0.5-35

BPYJVPX12R-TK 3 3 main core section: 2.5-240, secondary core section: 0.5-35

ZRBPYJVP12R-TK 3 3 主线芯截面:2.5-240,副线芯截面:0.5-35

ZRBPYJVP12R-TK 3 3 main core section: 2.5-240, secondary core section: 0.5-35

ZRBPYJVPX12-TK 3 3 主线芯截面:2.5-240,副线芯截面:0.5-35

ZRBPYJVPX12-TK 3 Main core section: 2.5-240, secondary core section: 0.5-35

注:另可根据用户需要提供铠装结构变频电缆.

Note: Armored structure frequency conversion cables can also be provided according to user needs

7 :ZR-BPYJVP12R 变频电缆型号说明

7: ZR-BPYJVP12R Variable Frequency Cable Model Description

项目代号说明

Project code description

系列代号 BP 变频电缆

Series code BP variable frequency cable

规格	近似外径mm	重量kg/km	电缆载流量A
*34 12.5*	16.0	334	34
*36 14*	17.3	430	45
*310 16*	20.2	627	53
*316 110*	22.7	833	84
*325 116*	27.4	1308	109
*335 116*	28.9	1718	132
*350 125*	30.2	3059	159
*370 135*	32.8	3445	195
*395 150*	34.9	4172	237
*3120 170*	39.6	5055	274
*3150 170*	44.2	5410	310
*3185 195*	48.5	7062	355
*3240 1120*	54.6	9811	416
BPYJVP12R、ZR-BPYJVP12 R BPYJVPX13R、ZR-BPYJVPX13R 3 3结构外径，重量及电缆载流量。
规格	近似外径mm	重量kg/km	电缆载流量A
*32.5 30.5*	12.5	232	26
*34 30.75*	14.0	330	34
*36 31.0*	15.4	422	45
*310 31.5*	19.6	621	53
*316 32.5*	22.7	820	84
*325 34*	28.0	1310	109
*335 36*	29.4	1723	132
*350 310*	36.3	3075	159
*370 310*	40.0	3454	195
*395 316*	45.5	4180	237
*3120 316*	50.4	5100	274
*3150 325*	55.5	5432	310
*3185 325*	60.6	7098	355
