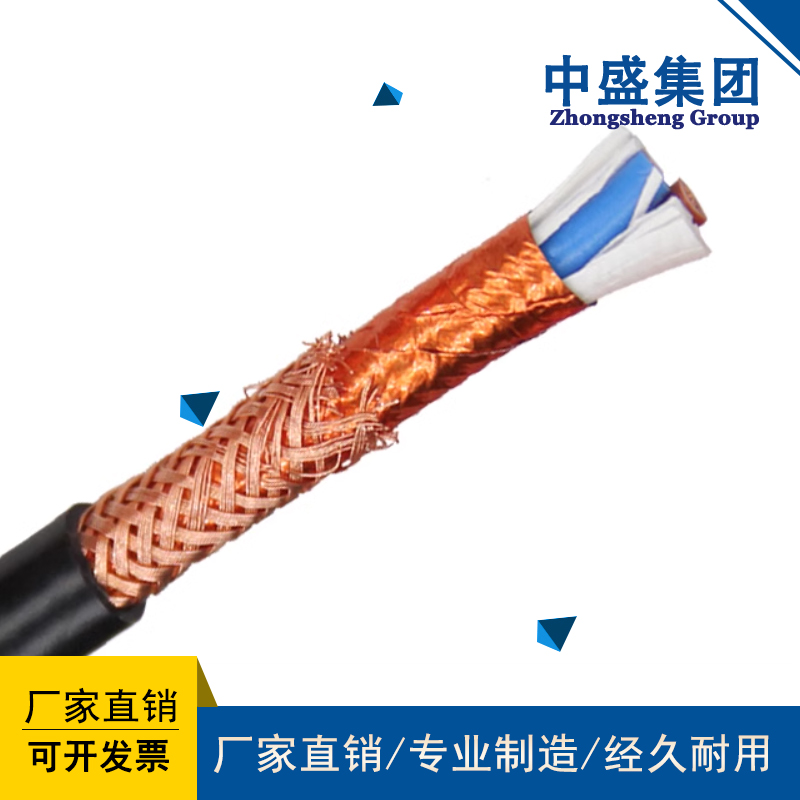

产品名称：Cable for frequency converterBPYJVP2
浏览：
添加时间：2024-08-13 15:31:55
推荐度：

介绍：

BPYJVP、BPYJVP2变频器电缆用途：

Usage of BPYJVP and BPYJVP2 frequency converter cables:

本产品适用于交流额定电压0.6/1KV及以下变频控制系统作供电电缆或电气连接，产品具有较强的耐电压冲击性，能经受变频时的脉冲电压，电缆具有良好的性，并有效消除电磁干扰，降低变频电机噪音，保证系统稳定运行。广泛用于冶金、电力、石化等行业。

This product is suitable for use as a power cable or electrical connection in frequency conversion control systems with an AC rated voltage of 0.6/1KV and below. The product has strong resistance to voltage surges and can withstand pulse voltages during frequency conversion. The cable has good performance and effectively eliminates electromagnetic interference, reduces frequency conversion motor noise, and ensures stable system operation. Widely used in industries such as metallurgy, power, and petrochemicals.

BPYJVP、BPYJVP2变频器电缆使用条件

BPYJVP, BPYJVP2 frequency converter cable usage conditions

1、额定电压U0/U：0.6/1KV.

1. Rated voltage U0/U: 0.6/1KV

2、电缆导体长期允许zui高温度为70度,短路时zui高温度250度

2. The maximum allowable temperature for cable conductors in the long term is 70 degrees Celsius, and the maximum allowable temperature during short circuits is 250 degrees Celsius

3、安装敷设环境温度不低于0度,固定敷设时环境温度不低于-10度.

3. The installation and laying environment temperature shall not be lower than 0 degrees, and the fixed laying environment temperature shall not be lower than -10 degrees

4、电缆允许zui小弯曲半径不小于15D(D-电缆外径,mm)

4. The maximum allowable bending radius for cables is not less than 15D (D-cable outer diameter, mm)

产品性能

Product performance

1、设计采用符合GB/T3956-1997规定的第5类软绞合铜导体。

1. The design adopts Class 5 soft stranded copper conductors that comply with GB/T3956-1997 regulations.

2、交联聚乙烯绝缘、耐温耐候性好。

2. Cross linked polyethylene insulation has good temperature and weather resistance.

3、低传输阻抗，电磁兼容性好。

3. Low transmission impedance, good electromagnetic compatibility.

4、低工作电容

4. Low working capacitance

5、良好的抗干扰和低辐射性能。

5. Good anti-interference and low radiation performance.

6、对称的三芯电缆结构设计，具有比四芯电缆更好的传输性能。

6. The symmetrical three core cable structure design has better transmission performance than four core cables.

型号名称

Model name

BPVVP 聚氯乙烯绝缘和护套铜丝编织屏蔽变频电力电缆

BPVVP PVC insulated and sheathed copper wire braided shielded variable frequency power cable

BPVVP2 聚氯乙烯绝缘和护套铜带绕包屏蔽变频电力电缆

BPVVP2 PVC insulated and sheathed copper tape wrapped shielded variable frequency power cable

BPVVP3 聚氯乙烯绝缘和护套铝聚酯复合膜绕包屏蔽变频电力电缆

BPVVP3 PVC insulated and sheathed aluminum polyester composite film wrapped shielded variable frequency power cable

BPYJVP 交联聚乙烯绝缘铜丝编织屏蔽聚氯乙烯护套变频器电缆

BPYJVP cross-linked polyethylene insulated copper wire braided shielding polyvinyl chloride sheathed frequency converter cable

BPYJVPP2 交联聚乙烯绝缘铜丝编织屏蔽铜带绕包屏蔽聚氯乙烯护套变频器电缆

BPYJVPP2 cross-linked polyethylene insulated copper wire braided shielding copper tape wrapped shielding polyvinyl chloride sheathed frequency converter cable

BPYJVP2 交联聚乙烯绝缘铜带绕包屏蔽聚氯乙烯护套变频器电缆

BPYJVP2 cross-linked polyethylene insulated copper tape wrapped shielding polyvinyl chloride sheathed frequency converter cable

BPYJVP3 交联聚乙烯绝缘聚氯乙烯护套铝(铝塑)复合膜绕包屏蔽变频电力电缆

BPYJVP3 cross-linked polyethylene insulated polyvinyl chloride sheathed aluminum (aluminum-plastic) composite film wrapped shielding variable frequency power cable

BPYJVP2-22铜芯交联聚乙烯绝缘聚氯乙烯护套铜带绕包屏蔽铠带铠装变频器用电力电缆

BPYJVP2-22 copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped shielding armor tape armored power cable for frequency converters

ZR-BPYJVP交联聚乙烯绝缘聚氯乙烯护套铜丝编织屏蔽阻燃变频器电缆

ZR-BPYJVP cross-linked polyethylene insulated polyvinyl chloride sheathed copper wire braided shielding flame retardant frequency converter cable

ZR-BPYJVP2 交联聚乙烯绝缘聚氯乙烯护套铜带绕包屏蔽阻燃变频器电缆

ZR-BPYJVP2 cross-linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped shielded flame retardant frequency converter cable

ZR-BPYJVP3 交联聚乙烯绝缘聚氯乙烯护套铝(铝塑)带屏蔽阻燃变频器电缆

ZR-BPYJVP3 cross-linked polyethylene insulated polyvinyl chloride sheathed aluminum (aluminum-plastic) shielded flame-retardant frequency converter cable

WDZ-BPYJEP 交联聚乙烯绝缘聚烯烃护套铜丝编织屏蔽低烟无卤阻燃变频器电缆

WDZ-BPYJEP cross-linked polyethylene insulated polyolefin sheathed copper wire braided shielding low smoke halogen-free flame-retardant frequency converter cable

WDZ-BPYJEP2 交联聚乙烯绝缘聚烯烃护套铜带屏蔽低烟无卤阻燃变频器电缆

WDZ-BPYJEP2 cross-linked polyethylene insulated polyolefin sheathed copper tape shielded low smoke halogen-free flame-retardant frequency converter cable

WDZ-BPYJEP3 交联聚乙烯绝缘聚烯烃护套铝(铝塑)带屏蔽低烟无卤阻燃变频器电缆

WDZ-BPYJEP3 cross-linked polyethylene insulated polyolefin sheathed aluminum (aluminum-plastic) tape shielded low smoke halogen-free flame-retardant frequency converter cable
