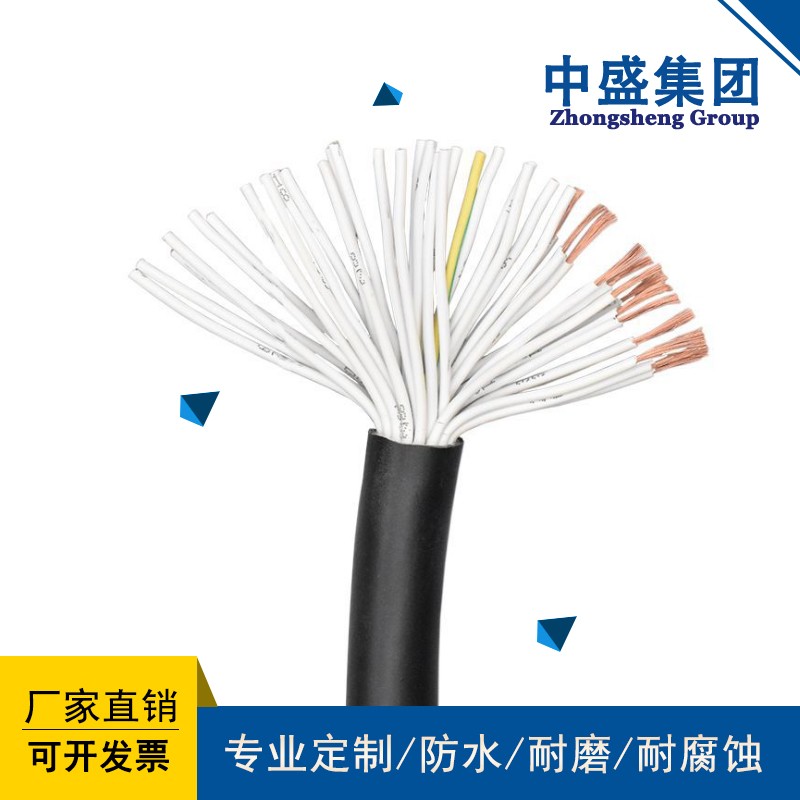

产品名称：Instrument communication cable YVV
浏览：
添加时间：2025-03-25 09:09:13
推荐度：

介绍：

产品详情

product details

YVV(0.5mm2) 仪表用通信电缆的产品介绍:仪表用通信电缆

Product introduction of YVV (0.5mm2) instrument communication cable: Instrument communication cable

1、产品用途：本产品适用于仪表、仪器及其它电器设备中的信号传输及控制线路。

1. Product Usage: This product is suitable for signal transmission and control circuits in instruments, apparatus, and other electrical equipment.

2、产品使用特性：电缆的交流额定电压500V以下，电缆线芯的长期工作温度应不超过70℃。电缆允许弯曲关径应不小于电缆外径的6倍，敷设温度应不低于0℃。

2. Product usage characteristics: The AC rated voltage of the cable is below 500V, and the long-term working temperature of the cable core should not exceed 70 ℃. The allowable bending diameter of the cable should not be less than 6 times the outer diameter of the cable, and the laying temperature should not be lower than 0 ℃.

3、产品型号、名称及使用范围

3. Product model, name, and scope of use

型号名称

Model name

使用范围

Scope of use

YVV 聚氯乙烯绝缘、聚氯乙烯护套仪表用电缆固定敷设，用于仪器、仪表的连接

YVV PVC insulated and PVC sheathed instrument cables are fixed and laid for the connection of instruments and meters

YVVP 聚氯乙烯绝缘、聚氯乙烯护套仪表用屏蔽电缆同上，用于要求抗干扰的情况下

YVVP PVC insulated and PVC sheathed shielded cable for instruments, as above, used in situations where anti-interference is required

RVV 聚氯乙烯绝缘、聚氯乙烯护套仪表用软电缆用于要求柔软的场合

RVV PVC insulated and PVC sheathed flexible cables for instruments are used in applications that require flexibility

RVVP 聚氯乙烯绝缘、聚氯乙烯护套仪表用屏蔽软电缆同RVV型，用于抗干扰场合

RVVP PVC insulated and PVC sheathed shielded flexible cable for instruments, same as RVV type, used in anti-interference occasions

4、生产范围

4. Production scope

型号芯数

Model number of cores

标称截面(mm2)

Nominal cross-section (mm2)

YVV

YVVP

RVV

RVVP

2、3、4、5、6、7、8、10、12 0.5 0.75 1.0 1.5 2.5

2. 3, 4, 5, 6, 7, 8, 10, 12 0.5 0.75 1.0 1.5 2.5

仪表用通信电缆

Instrument communication cable

1、产品用途：本产品适用于仪表、仪器及其它电器设备中的信号传输及控制线路。

1. Product Usage: This product is suitable for signal transmission and control circuits in instruments, apparatus, and other electrical equipment.

3、产品型号、名称及使用范围

3. Product model, name, and scope of use

型号名称

Model name

使用范围

Scope of use

YVV 聚氯乙烯绝缘、聚氯乙烯护套仪表用电缆固定敷设，用于仪器、仪表的连接

YVV PVC insulated and PVC sheathed instrument cables are fixed and laid for the connection of instruments and meters

YVVP 聚氯乙烯绝缘、聚氯乙烯护套仪表用屏蔽电缆同上，用于要求抗干扰的情况下

YVVP PVC insulated and PVC sheathed shielded cable for instruments, as above, used in situations where anti-interference is required

RVV 聚氯乙烯绝缘、聚氯乙烯护套仪表用软电缆用于要求柔软的场合

RVV PVC insulated and PVC sheathed flexible cables for instruments are used in applications that require flexibility

RVVP 聚氯乙烯绝缘、聚氯乙烯护套仪表用屏蔽软电缆同RVV型，用于抗干扰场合

RVVP PVC insulated and PVC sheathed shielded flexible cable for instruments, same as RVV type, used in anti-interference occasions

4、生产范围

4. Production scope

型号芯数

Model number of cores

标称截面(mm2)

Nominal cross-section (mm2)

YVV

YVVP

RVV

RVVP

2、3、4、5、6、7、8、10、12 0.5 0.75 1.0 1.5 2.5

2. 3, 4, 5, 6, 7, 8, 10, 12 0.5 0.75 1.0 1.5 2.5
