产品名称：Encoder flexible cable drag chain cable TRVVP
浏览：
添加时间：2025-03-25 15:40:14
推荐度：

介绍：

型号：TRVVP

model: TRVVP

连接与控制用柔性电缆,广泛应用于干燥或潮湿的室内,往复自由弯曲移动无强制拉力的拖链系统中。如机床加工设备,物流输送系统,港口机械,成套设备安装工程。

Flexible cables for connection and control are widely used in dry or humid indoor environments, as well as in drag chain systems that can freely bend and move back and forth without forced tension. Such as machine tool processing equipment, logistics conveying systems, port machinery, and complete equipment installation projects.

产品特点：

Product features:

可根据客户要求定做彩色线芯或编码线芯。

We can customize colored or coded wire cores according to customer requirements.

采用优质PVC混合料,减小了电缆外径降低对安装空间的要求。

The use of high-quality PVC mixture reduces the outer diameter of the cable and lowers the requirement for installation space.

整体镀锡铜丝编织屏蔽,以防止外部高频电磁干扰。

The overall tin plated copper wire is braided and shielded to prevent external high-frequency electromagnetic interference.

设计使用循环弯曲寿命为500万次,实际使用已超过600万次。

The designed service life for cyclic bending is 5 million times, but in actual use it has exceeded 6 million times.

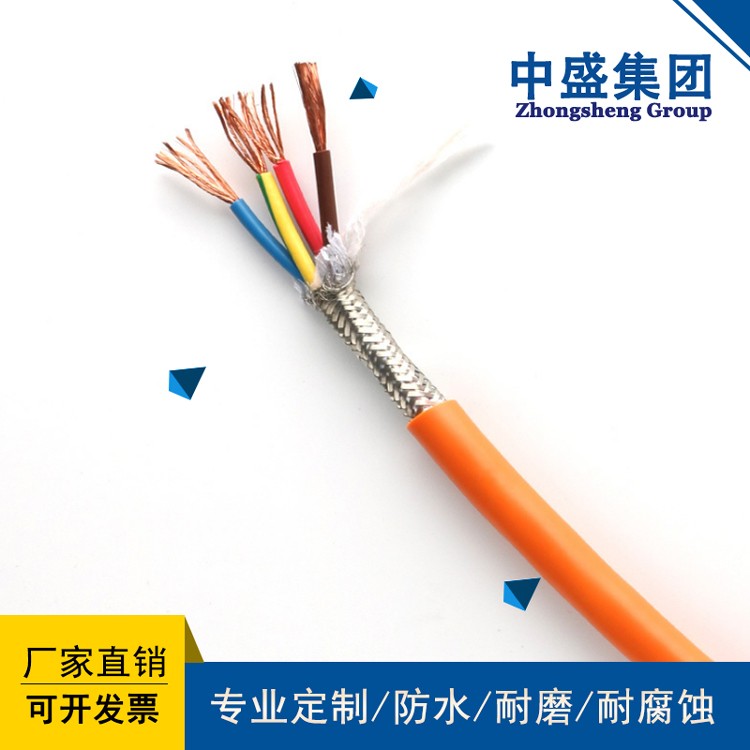

线缆结构：

Cable structure:

导体：采用多股细绞和精绞成束细一级无氧铜丝作导体,符合DIN VDE 0295等级6

Conductor: Multiple strands of fine twisted and precision twisted bundles of first grade oxygen free copper wire are used as conductors, in accordance with DIN VDE 0295 grade 6

绝缘：优质聚氯乙烯混合体颜色：彩色线芯或编码线芯≥3芯加黄绿芯线

Insulation: High quality polyvinyl chloride mixture Color: Colored core or coded core ≥ 3 cores with yellow green core wire

屏蔽：镀锡铜丝编织,屏蔽密度≥80%

Shielding: Tin plated copper wire weaving, shielding density ≥ 80%

护套：优质聚氯乙烯混合体颜色：黑色,灰色,橙色

Sheath: High quality polyvinyl chloride mixture Color: Black, Grey, Orange

电气特性：

Electrical characteristics:

额定电压：U0/U＜ 0.5mm2 300/300 V

Rated voltage: U0/U＜ 0.5mm2 300/300 V

≥ O.5mm2 300/500 V

测试电压: U 3000V符合DIN VDE 0281第2部分
