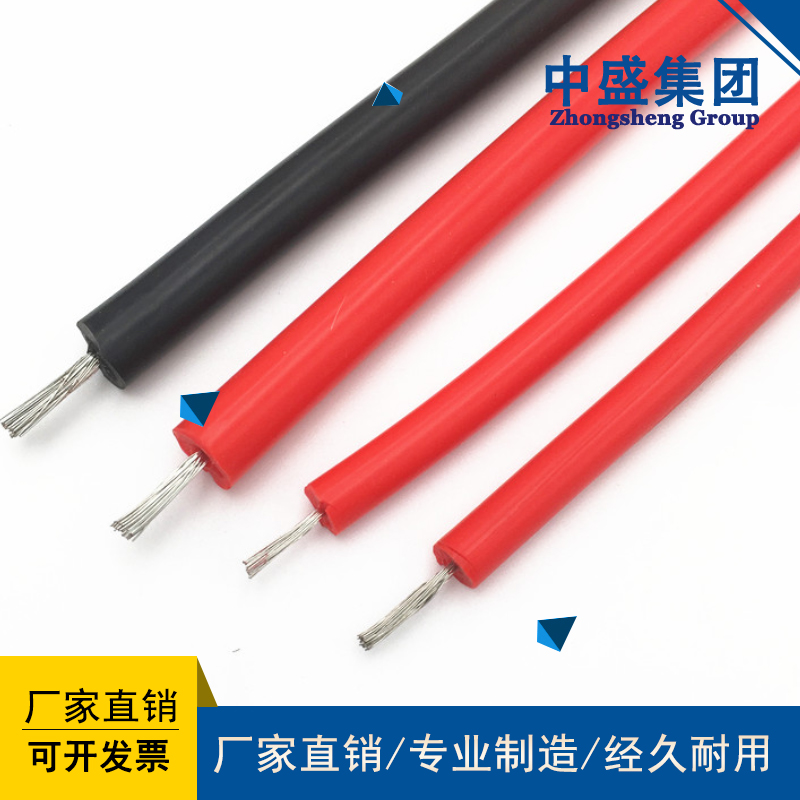

产品名称：JG 6KV motor lead wire high voltage silicone rubber cable
浏览：
添加时间：2025-04-01 16:07:56
推荐度：

介绍：

详情介绍

Details

一:电机绕组引接软电缆，本产品适用于电机绕组作引接线用。具有良好的柔软性及耐热、耐溶剂性。额定电压8.7/10KV及以下。规格为：0.75mm, 1.0mm, 1.5mm, 2.5mm, 4.0mm, 6.0mm, 10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm, 150mm, 185mm, 240mm.

1： The motor winding is connected to a flexible cable, and this product is suitable for use as a connecting wire for motor windings. Has good flexibility, heat resistance, and solvent resistance. Rated voltage of 8.7/10KV and below. Specification: 0.75mm, 1.0mm, 1.5mm, 2.5mm, 4.0mm, 6.0mm, 10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm, 150mm, 185mm, 240mm.

二:电机绕组引接软电缆生产执行标准： JB6213.4-92

2： Production execution standards for flexible cables connected to motor windings: JB6213.4-92

三:电机绕组引接软电缆使用条件

3： Service conditions for flexible cables connected to motor windings

1 连续运行导体z高温度为180℃；

The continuous operation of conductor z has a high temperature of 180 ℃;

2 电缆（电线）的额定电压为500V,1000V；

The rated voltage of 2 cables (wires) is 500V, 1000V;

3 敷设时的允许弯曲半径应不小于电缆（电线）外径的4倍。

The allowable bending radius during laying should not be less than 4 times the outer diameter of the cable (wire).

四:电机绕组引接软电缆

4： Motor winding leads to flexible cable

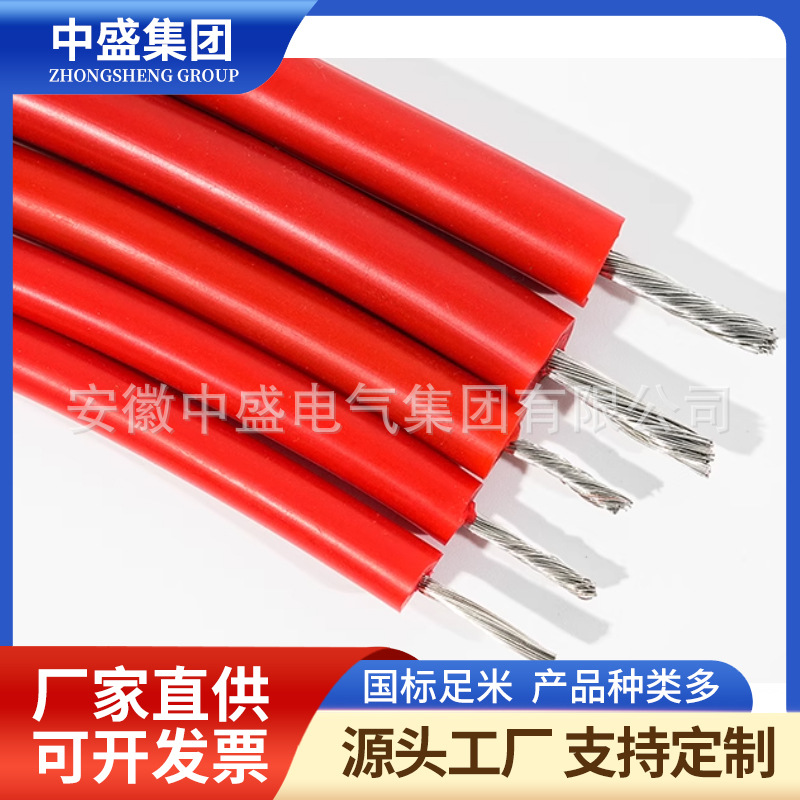

JG 铜芯硅橡胶绝缘耐高温电机绕组引接软电缆（电线）

JG copper core silicone rubber insulated high-temperature resistant motor winding connection flexible cable (wire)

JHXG 镀锡铜芯硅橡胶绝缘耐高温电机绕组引级软电缆（电线）

JHXG Tin Plated Copper Core Silicone Rubber Insulated High Temperature Resistant Motor Winding Lead Flexible Cable (Wire)

ZR-JG 铜芯阻燃硅橡胶绝缘耐高温电机绕组引接软电缆（电线）

ZR-JG copper core flame-retardant silicone rubber insulated high-temperature resistant motor winding connection flexible cable (wire)

ZR-JHXG 镀锡铜芯阻燃硅橡胶绝缘耐高温电机绕组引接软电缆（电线）

ZR-JHXG Tin Plated Copper Core Flame Retardant Silicone Rubber Insulated High Temperature Motor Winding Connection Flexible Cable (Wire)

JEM 铜芯乙丙绝缘引接电缆一电机绕组引接软电缆（电线）

JEM copper core ethylene propylene insulated lead cable - motor winding lead flexible cable (wire)

JF 铜芯硅橡胶绝缘耐高温电机绕组引接软电缆（电线）

JF copper core silicone rubber insulated high-temperature resistant motor winding connection flexible cable (wire)

JV 铜芯铜芯聚氯乙烯绝缘电机绕组引接电缆（电线）

JV Copper Core PVC Insulated Motor Winding Connection Cable (Wire)

JBF 铜芯丁月青聚氯乙烯复合物绝缘电机绕组引接电缆电机绕组引接软电缆（电线）

JBF copper core Ding Yueqing polyvinyl chloride composite insulated motor winding connection cable motor winding connection flexible cable (wire)

JXN 铜芯橡皮绝缘丁月青护套电机绕组引接

JXN copper core rubber insulated Ding Yueqing sheathed motor winding connection

JXF 铜芯橡皮绝缘氯丁护套电机绕组引接软电缆（电线）

JXF copper core rubber insulated chloroprene sheathed motor winding connection flexible cable (wire)

电线适用于交流额定电压6000V、10000V及以下绝缘电机、电器用引接线。电线的连续运行

The wire is suitable for insulated motors and electrical appliances with rated AC voltage of 6000V, 10000V and below. Continuous operation of wires

导体温度：-100～+200℃

Conductor temperature: -100 to+200 ℃

型号model	导体conductor		绝缘 isolation						参考重量Reference weight
	标称截面Nominal cross-section	导体结构Conductor structure	标称厚度Nominal thickness		标称外径Nominal outer diameter		z大外径Maximum outer diameter		参考重量Reference weight
	标称截面Nominal cross-section	导体结构Conductor structure	6KV	10KV	6KV	10KV	6KV	10KV	6KV	10KV
JGG	0.75	24/0.20	2.3	2.8	5.8	6.8	6.6	7.8	37.4	49.5
	1.0	32/0.20	2.3	2.8	5.9	6.9	6.8	8.0	40.2	52.6
	1.5	30/0.25	2.5	3.0	6.6	7.6	7.6	8.7	52	65.8
	2	41/0.25	2.5	3.0	6.9	7.9	7.9	9.0	59.5	73.7
	2.5	49/0.25	2.8	3.2	7.6	8.4	8.8	9.6	72.8	85
	4	56/0.30	2.8	3.2	8.2	9.0	9.4	10.3	91	104
	6	84/030	3.0	3.4	9.6	10.4	11	12	127.6	143
	10	84/0.40	3.0	3.4	10.6	11.4	12.2	13.1	171.6	188.5
	16	126/0.40	3.2	3.6	12.1	12.9	13.9	14.8	244	263.8
	25	196/0.40	3.2	3.6	13.5	14.3	15.5	16.4	342	364
	35	276/0.40	3.4	3.8	15.3	16.1	17.6	18.5	443	549
	50	396/0.40	3.4	3.8	17.1	17.9	19.7	20.6	605	632
	70	360/0.50	3.6	4.0	19.6	20.4	22.5	23.4	808	838
	95	475/0.50	3.6	4.0	21.7	22.5	25	25.9	1065	1100
	120	608/0.50	4.0	5.0	24	26	27.6	30	1328	1423
	150	756/0.50	4.2	5.2	27	29	31	33.3	1675	1782
	185	925/0.50	4.5	5.5	29.5	31.5	33.9	36.2	2040	2155
