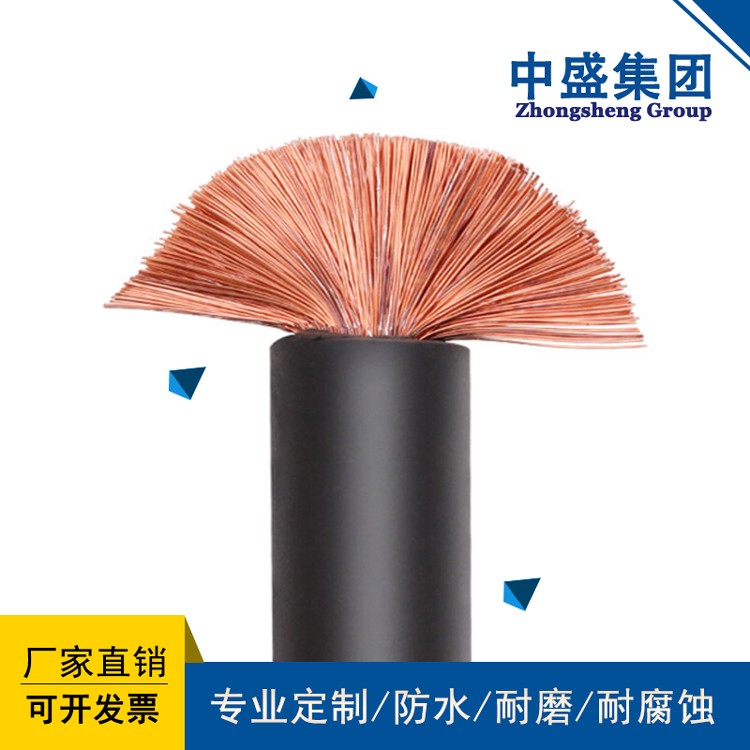

产品名称：Heavy duty rubber sheathed flexible cable YC
浏览：
添加时间：2025-04-07 15:01:13
推荐度：

介绍：

通用橡套软电缆简称橡套电缆，分为高压橡套软电缆和750V通用橡套软电缆。高压橡套软电缆用途：交流额定电压6kv及以下移动配电装置及矿山采掘机械；起重运输机械等。低压橡套软电缆适用于交流额定电压750V及以下家用电器、电动工具和各种移动式电器设备用其中分为轻型、中型和重型三种型号电缆。

General rubber sheathed flexible cables, abbreviated as rubber sheathed cables, are divided into high-voltage rubber sheathed flexible cables and 750V general rubber sheathed flexible cables. Application of high-voltage rubber sheathed flexible cable: Mobile power distribution equipment and mining machinery with AC rated voltage of 6kV and below; Lifting and transportation machinery, etc. Low voltage rubber sheathed flexible cables are suitable for household appliances, power tools, and various mobile electrical equipment with an AC rated voltage of 750V and below. There are three types of cables: light, medium, and heavy.

野外用橡套电缆（YCW电缆，YZW电缆,橡套电缆-YZW电缆-YCW电缆-YC,YZ电缆）是

Outdoor rubber sheathed cables (YCW cables, YZW cables, rubber sheathed cables - YZW cables - YCW cables - YCW cables - YC cables, YZ cables) are

为适应野外用工矿企业调整发展的需要，生产性能优良的橡皮绝缘，橡皮护套和延燃重型橡套软电缆。

To meet the needs of the adjustment and development of industrial and mining enterprises in the field, we produce high-performance rubber insulation, rubber sheath, and extended flame heavy-duty rubber sheathed flexible cables.

型号

model

产品名称

product name

电压KV

Voltage KV

芯数No

Number of cores No

截面mm2

Cross section mm2

主要使用范围

Main application scope

YZW

野外用中型橡套软电缆

Medium sized rubber sheathed flexible cable for outdoor use

300-500

two

3.4

three point four

five

3+1

0.75-6

1.0-6

用于交流电压450/750V及以下各种移动电器设备，能承受较大的机械外力作用，长期工作温度应不超过65℃，适用于户外或接触油污场合。

Used for various mobile electrical equipment with AC voltage of 450/750V and below, capable of withstanding large mechanical external forces, long-term working temperature should not exceed 65 ℃, suitable for outdoor or oil contaminated environments.

YCW

野外用重型橡套软电缆

Heavy duty rubber sheathed flexible cable for outdoor use

450-750

one

two

three

four

five

1.5-400

1.0-25

1.0-95

1.0-150

1.0-25

用于交流电压450/750V及以下各种移动电器设备，能承受较大的机械外力作用，适用于户外或接触油污场合，长期工作应不超过60℃

Used for various mobile electrical equipment with AC voltage of 450/750V and below, capable of withstanding significant mechanical external forces, suitable for outdoor or oil contaminated environments, and should not exceed 60 ℃ for long-term operation

一、通用橡套软电缆用途

1、 Application of universal rubber sheathed flexible cable

本产品用于交流额定电压为450/750V及以下的家用电器、电动工具和各类移动电器设备。

This product is used for household appliances, power tools, and various mobile electrical equipment with an AC rated voltage of 450/750V and below.

二、使用特性

2、 Usage characteristics

（1） YZ型额定电压Uo/U为300/500V，YC型为450/750V。

(1) The rated voltage Uo/U of YZ type is 300/500V, while YC type is 450/750V.

（2）线芯的长期允许工作温度不超过65℃。

(2) The long-term allowable working temperature of the wire core shall not exceed 65 ℃.

（3） W型电缆具有耐气候和一定的耐油性能，适宜于在户外或接触油污的场合使用。

(3) W-shaped cables have weather resistance and certain oil resistance, making them suitable for use outdoors or in situations where they come into contact with oil stains.

（4） ZR型电缆具有阻燃性能。

(4) ZR type cables have flame retardant properties.

型号

model

名称

name

主要用途

Main purpose

YQ,YQW

轻型橡套软电缆

yqw

用于轻型移动电器设备和工具
