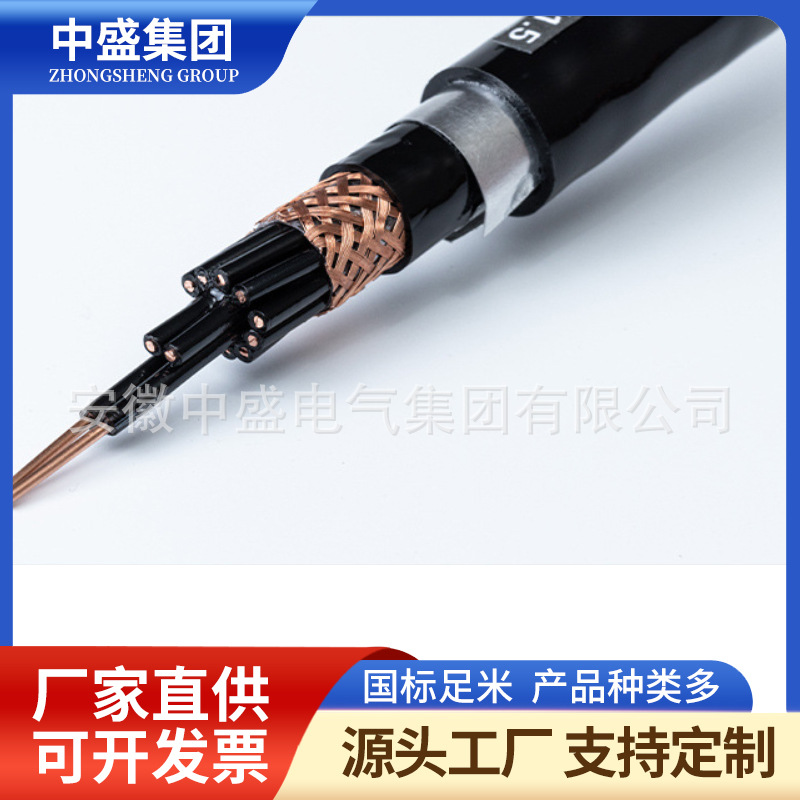

产品名称：WFYS-YJY23 steel tape armored anti ant and rodent cable
浏览：
添加时间：2025-04-29 14:31:06
推荐度：

介绍：

防蚁鼠电力电缆

Anti ant and rodent power cable

　　一、产品特点及用途

1、 Product Features and Applications

　　本产品适用于在蚁鼠危害比较严重，且有绿色环保要求的场所，特别是埋地和管道敷设的电力系统输配线路。具有以下几点特点：

This product is suitable for places with serious ant and rodent hazards and green environmental protection requirements, especially for buried and pipeline laid power system transmission and distribution lines. Has the following characteristics:

　　1、产品能有效预防白蚁、鼠类对电缆的危害，性能可靠长久，无需其他辅助方法；

1. The product can effectively prevent the harm of termites and rodents to cables, with reliable and long-lasting performance, without the need for other auxiliary methods;

　　2、电缆产品内无对空气、土壤、人身造成污染和危害的材料，属绿色环保型产品；

2. The cable product contains no materials that cause pollution or harm to the air, soil, or human body, and is considered a green and environmentally friendly product;

　　3、五芯电力电缆适用于三相五线制输配电系统，由于中性线与地线分开使得系统运行更加稳定，操作人员更为安全。且五芯电力电缆采用******的瓦形设计，使电缆具有结构稳定、重量轻、外径小的特点。

3. Five core power cables are suitable for three-phase five wire transmission and distribution systems. Due to the separation of neutral and ground wires, the system operates more stably and operators are safer. And the five core power cable adopts a unique tile shaped design, which makes the cable structurally stable, lightweight, and has a small outer diameter.

　　二、产品执行标准

2、 Product execution standards

　　Q/AT2003-4

　　三、基本型号及名称

3、 Basic model and name

型号名称

Model name

铜芯Cu 铝芯AL

Copper core, Cu aluminum core, AL

WFYS-YJY WFYS-YJLY 铜芯(铝芯)交联聚乙烯绝缘无毒无害防蚁鼠聚烯烃护套电力电缆

WFYS-YJY WFYS-YJLY Copper (Aluminum) Cross linked Polyethylene Insulated Non toxic, Harmless, Ant proof, Mouse proof Polyolefin Sheathed Power Cable

WFYS-YJY23 WFYS-YJLY23 铜芯(铝芯)交联聚乙烯绝缘钢带铠装无毒无害防蚁鼠聚烯烃护套电力电缆

WFYS-YJY23 WFYS-YJLY23 Copper Core (Aluminum Core) Cross linked Polyethylene Insulated Steel Strip Armored Non toxic, Harmless, Ant proof, Rat proof Polyolefin Sheathed Power Cable

WFYS-YJY33 WFYS-YJLY33 铜芯(铝芯)交联聚乙烯绝缘细钢丝铠装无毒无害防蚁鼠聚烯烃护套电力电缆

WFYS-YJY33 WFYS-YJLY33 copper core (aluminum core) cross-linked polyethylene insulated fine steel wire armored non-toxic and harmless ant and rodent proof polyolefin sheathed power cable

WFYS-YJY43 WFYS-YJLY43 铜芯(铝芯)交联聚乙烯绝缘粗钢丝铠装无毒无害防蚁鼠聚烯烃护套电力电缆

WFYS-YJY43 WFYS-YJLY43 Copper core (aluminum core) cross-linked polyethylene insulated thick steel wire armored non-toxic and harmless ant and rodent proof polyolefin sheathed power cable

WFYS-YJY53 WFYS-YJLY53 铜芯(铝芯)交联聚乙烯绝缘轧纹钢带铠装无毒无害防蚁鼠聚烯烃护套电力电缆

WFYS-YJY53 WFYS-YJLY53 copper core (aluminum core) cross-linked polyethylene insulated corrugated steel tape armored non-toxic and harmless ant and rodent proof polyolefin sheathed power cable

　　四、主要技术参数

4、 Main technical parameters

　　1、成品电缆经受交流50HZ、5min、3500V的电压试验不击穿，对于单芯非铠装电缆，则进行浸水耐压试验；

1. Finished cables shall withstand AC 50HZ, 5-minute, 3500V voltage test without breakdown. For single core non armored cables, immersion withstand voltage test shall be conducted;

　　2、 90℃绝缘电阻常数不小于3.67MΩ/KM；

2. The insulation resistance constant at 90 ℃ shall not be less than 3.67M Ω/KM;

　　3、电缆防蚁鼠性能符合GB/T2951.38《电线电缆蚁鼠试验方法》中2.2“实验群体法”的规定。

3. The anti ant and rodent performance of cables complies with the provisions of section 2.2 "Experimental Group Method" in GB/T2951.38 "Test Methods for Ants and Rodents in Wires and Cables".

型号model		芯数CORE	标称截面Nominal cross-section 　　mm2	额定电压rated voltage KV
铜芯Cu	铝芯AL	芯数CORE	标称截面Nominal cross-section 　　mm2	额定电压rated voltage KV
WFYS-YJY	WFYS-YJLY	1	2.5--300	0.6/1
		2	2.5--185
		3	1.5--300
		3+1、4	4--300
		5、3+2、4+1	4--300
WFYS-YJY23	WFYS-YJLY23	1	10--300
WFYS-YJY33	WFYS-YJLY33	2	4--185
WFYS-YJY43	WFYS-YJLY43	3、3+1、4	4--300
WFYS-YJY53	WFYS-YJLY53	5、3+2、4+1	4--300
