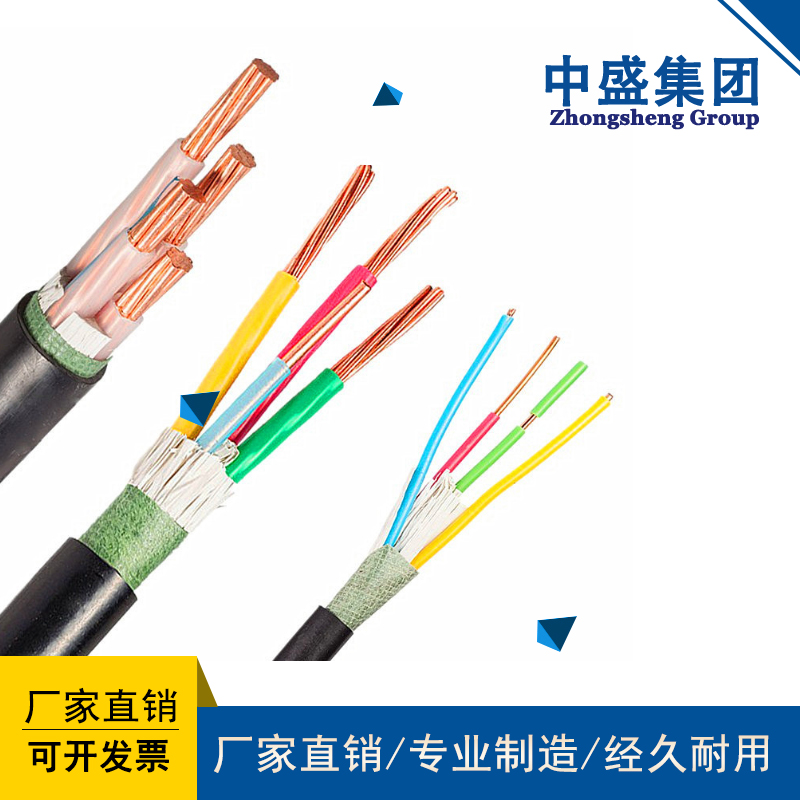

产品名称：ATGTNS-FYS, ATGTNS22-FYS anti ant and rodent cable
浏览：
添加时间：2025-04-29 14:51:13
推荐度：

介绍：

本产品为特种性能电缆，适用于供城市排水、污水、道路、桥梁、地铁、广场及旅游景点等环境设施连接用。产品具有优异的耐低寒、高温、酸碱、化学腐蚀、臭氧老化、紫外线辐照和防蚁鼠、防鼠害、防潮、防水、防霉、防火灾（低烟低卤或低烟无卤）等其他特种性能。使用寿命为40-50年。

This product is a special performance cable suitable for connecting environmental facilities such as urban drainage, sewage, roads, bridges, subways, squares, and tourist attractions. The product has excellent resistance to low cold, high temperature, acid and alkali, chemical corrosion, ozone aging, ultraviolet radiation, and other special properties such as anti ant and anti rodent, anti rodent, moisture-proof, waterproof, anti mold, fire prevention (low smoke and low halogen or low smoke and halogen-free). The service life is 40-50 years.

一、产品特点及用途

1、 Product Features and Applications

本产品为特种性能电缆，适用于供城市排水、污水、道路、桥梁、地铁、广场及旅游景点等环境设施连接用。产品具有优异的耐低寒、高温、酸碱、化学腐蚀、臭氧老化、紫外线辐照和防蚁鼠、防鼠害、防潮、防水、防霉、防火灾(低烟低卤或低烟无卤)等其他特种性能。使用寿命为40-50年。

二、产品执行标准

2、 Product execution standards

Q/AT2003-12

三、使用特性

3、 Usage characteristics

1、额定电压U0/U：0.6/1KV、450/750V、220/380V；

1. Rated voltage U0/U: 0.6/1KV, 450/750V, 220/380V;

2、使用温度：

2. Operating temperature:

ATGTNS-FYS、ATGTNS22-FYS、ATGTNSP-FYS为-40℃-250℃；

ATGTNS-FYS, ATGTNS22-FYS, and ATGTNSP-FYS are at -40 ℃ -250 ℃;

ATGTGS、ATGTGS22、ATGTGSP、ATGTGSM为-60℃-150℃；

ATGTGS, ATGTGS22, ATGTGSP, ATGTGSM are at -60 ℃ -150 ℃;

3、***小弯曲半径：无铠装层电缆不小于电缆外径6倍，有铠装层电缆不小于电缆外径8倍。

3. Minimum bending radius: For unarmored cables, the minimum bending radius should not be less than 6 times the outer diameter of the cable, and for armored cables, the minimum bending radius should not be less than 8 times the outer diameter of the cable.

四、基本型号及名称

4、 Basic model and name

1、型号及名称

1. Model and Name

型号model	名称name
ATGTNS-FYS	可溶性聚酰亚***绝缘有机硅混合和弹性体护套防蚁鼠特种电线电缆Soluble polyimide insulated silicone hybrid and elastomer sheathed ant and rodent resistant special wire and cable
ATGTNS22-FYS	可溶性聚酰亚***绝缘有机硅混合和弹性体护套钢带铠装防蚁鼠特种电线电缆Soluble polyimide insulated silicone hybrid and elastomer sheathed steel tape armored anti ant and rodent special wire and cable
ATGTNSP-FYS	可溶性聚酰亚***绝缘有机硅混合和弹性体护套铜网屏蔽防蚁鼠特种电线电缆Soluble polyimide insulated silicone hybrid and elastomer sheathed copper mesh shielding anti ant and rodent special wire and cable
ATGTGS	硅橡胶绝缘有机硅混合和弹性体护套防腐耐寒特种电线电缆Silicone rubber insulation, organic silicon mixture, and elastic sheath for anti-corrosion and cold resistant special wires and cables
ATGTGSP	硅橡胶绝缘有机硅混合和弹性体护套铜网屏蔽防腐耐寒特种电线电缆Silicone rubber insulation, organic silicon mixture, and elastic sheath, copper mesh shielding, anti-corrosion and cold resistant special wire and cable
ATGTGS22	硅橡胶绝缘有机硅混合和弹性体护套钢带铠装防腐耐寒特种电线电缆Silicone rubber insulation, organic silicon mixture, and elastic sheath, steel tape armor, anti-corrosion and cold resistant special wire and cable
ATGTGSM	硅橡胶绝缘有机硅混合和弹性体护套水密式防腐防水特种电线电缆Silicone rubber insulation, organic silicon mixture, and elastic sheath, waterproof and corrosion-resistant special wire and cable
ATKFTGSMP	硅橡胶绝缘有机硅混合和弹性体护套水密式防腐防水屏蔽特种电线电缆Silicone rubber insulation, organic silicon mixture, and elastic sheath, water tight anti-corrosion, waterproof, and shielded special wire and cable

2、型号说明

Model Description

代号	含义meaning
GT	系列代号Series code
G	硅橡胶silicon rubber
N	可溶性聚酰亚soluble polyimide*
S	有机硅混合弹性体Organic silicon hybrid elastomer
32	细钢丝铠装Fine steel wire armor
P	铜丝屏蔽Copper wire shielding
M	水密式Water tight type
FYS	防蚁鼠Prevent ants and rodents
22	钢带铠装 Steel belt armor

五、主要技术指标Specification
1、ATGTNS-FYS电缆的主要技术指标Main technical indicators of cables

序号Serial Number	项目project	性能performance
1	导体电阻Conductor Resistance	按GB12706标准规定According to the GB12706 standard
2	耐电压试验Voltage withstand test	3.5KV/5min	不击穿No breakdown
3	老化前机械性能Mechanical properties before aging	抗拉强度tensile strength	绝缘isolation	***小minimum24.8N/mm2
		护套sheath	***小15.0N/ mm2
	断裂伸长率elongation at break	绝缘isolation	***小120%
		护套sheath	***小150%
老化前机械性能Mechanical properties before aging	抗拉强度tensile strength	绝缘isolation	200℃±5℃7天小24.8N/ mm2*
		护套sheath	150℃±2℃7天小15.0N/ mm2*
	变化率Change rate	绝缘isolation	200℃±5℃7天大±20%*
		护套	150℃±2℃7天大±25%*
	断裂伸长率elongation at break	绝缘	200℃±5℃7天小±120%*
		护套	200℃±2℃7天大±150%*
4	低温冲击试验low temperature impact test		-45℃	通过pass through
5	氧指数Oxygen Index	46
