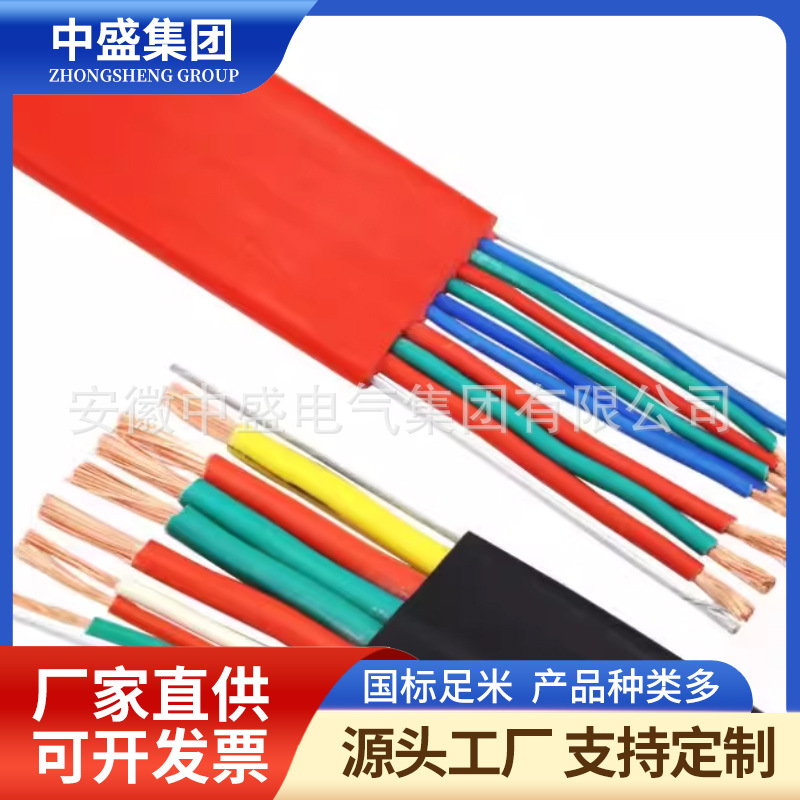

产品名称：扁平电缆丁晴扁电缆YVFRB
浏览：
添加时间：2025-05-29 10:19:02
推荐度：

介绍：

本产品适用于额定电压0.6/1kv及以下的高温范围和恶劣环境内、作电器设备电能传输线。它具有优良的耐高温、阻燃、耐辐射、耐老化、耐臭氧、防水等特性，并具有很好的耐寒性、耐候性。
执行标准:采用企业标准
使用特性:ZR-YVFR阻燃电缆
一：产品特点及用途本产品具有耐寒、柔软、耐磨、防油等特性，适用于交流额定电压0.6/1KV及以下具有耐寒、防油等特殊要求的移动电器用连接电缆，目前本产品已广泛应用于冶金、电力、船舶、汽车制造等行业。

二：产品执行标准 Q/HL009-2004. 阻燃性能试验执行GB12666-90规定
1、额定电压U0/U:0.6/1kv
2、电缆允许工作温度范围:-60℃~+180℃;
3、短路时(***长持续不超过5S)电缆导体的***高温度不超过250℃。
4、电缆敷设温度应不低于-20℃。
5、电缆敷设时的***小弯曲半径规定如下:
单芯电缆:其弯曲半径不小于电缆外径的15D;
三芯电缆:其弯曲半径不小于电缆外径的12D。(D=电缆外径)
本产品适用于交流额定电压0.6/1KV及以下固定敷设用动力传输线或移动电器用连接电缆，产品具有耐热辐射、耐寒、耐酸碱及腐蚀性气体、防水等特性，电缆结构柔软

钢丝加强型扁平电缆YVFB-G-3*10本产品具有耐寒、柔软、耐磨、防油等特性。广泛应用于行车、台车、传输机械等移动设备。如冶金、电力、船舶、物流输送系统、港口机械。YVFB-G钢丝加强型扁平电缆，YVFB起重机电缆，行车电缆，起重机电缆 YFFB行车起重电缆安徽天康YVFB起重机电缆，行车电缆

钢丝加强型扁平电缆YVFRB-2G广泛应用于行车、台车、传输机械等移动设备。如冶金、电力、船舶、物流输送系统、港口机械。动力传输及控制电缆。产品特点：

钢丝加强型扁平电缆YVFRB-2G本产品具有耐寒、柔软、耐磨、防油等特性。

比圆电缆的弯曲半径小，节省安装空间。

可多根线缆重叠捆绑使用。

芯线单排一字型排列时：悬挂长度＞40m 移动速度＞2m/s 建议增加承力钢丝或纺纶纱

芯线梅花型绞合排列时：悬挂长度＞80m 移动速度＞4-10m/s建议增加承力钢丝

钢丝加强型扁平电缆YVFRB-2G线缆结构：

导体：采用多股柔性无氧铜丝符合DIN VDE 0295等级5

绝缘：优质耐油、阻燃丁晴混合体颜色：彩色线芯或编码线芯接地黄绿芯线

护套：优质耐油、阻燃丁晴混合体颜色：黑色或灰色

YVFB起重机电缆，行车电缆，起重机电缆 YFFB行车起重电缆安徽天康YVFB起重机电缆，行车电缆，起重机电缆 YFFB行车起重电缆

电气特性：

额定电压：U0/U 300/500 V 测试电压: U 2500V

温度范围：℃ 移动安装：-15℃～+70℃ 固定安装：-30℃～+70℃

型号

芯数

截面

近似宽度mm

近似厚度mm

近似密度(kg/km)

　产品大致形状

YFFB	2	0.75	8.0±1.0	4.6±0.5	69	一字排列
YFFB	3	0.75	10.4±1.0	4.6±0.5	91	一字排列
YFFB	4	0.75	13.7±1.0	4.6±0.5	119	一字排列

YFFB	66	0.75	73.5±2.5	8.4±0.5	1197	梅花排列
YFFB(G)	2	0.75	13.5±1.0	4.6±0.5	113	一字排列(带钢丝)
YFFB(G)	3	0.75	15.9±1.0	4.6±0.5	133	一字排列(带钢丝)

YVFB	2	0.75	8.0±1.0	4.6±0.5	69	一字排列
YVFB	3	0.75	10.4±1.0	4.6±0.5	91	一字排列
YVFB	4	0.75	13.7±1.0	4.6±0.5	119	一字排列

YVFB	66	0.75	73.5±2.5	8.4±0.5	1197	梅花排列
YVFB(G)	2	0.75	13.5±1.0	4.6±0.5	113	一字排列(带钢丝)
YVFB(G)	3	0.75	15.9±1.0	4.6±0.5	133	一字排列(带钢丝

V本产品适用于额定电压0.6/1kv及以下的高温范围和恶劣环境内、作电器设备电能传输线。它具有优良的耐高温、阻燃、耐辐射、耐老化、耐臭氧、防水等特性，并具有很好的耐寒性、耐候性。 This product is suitable for high temperature range and harsh environment with rated voltage of 0.6/1kv and below, as well as power transmission lines for electrical equipment. It has excellent characteristics such as high temperature resistance, flame retardancy, radiation resistance, aging resistance, ozone resistance, waterproofing, and has good cold resistance and weather resistance. 执行标准:采用企业标准 Execution standard: Adopt enterprise standards 使用特性:ZR-YVFR阻燃电缆 Usage characteristics: ZR-YVFR flame-retardant cable 一：产品特点及用途本产品具有耐寒、柔软、耐磨、防油等特性，适用于交流额定电压0.6/1KV及以下具有耐寒、防油等特殊要求的移动电器用连接电缆，目前本产品已广泛应用于冶金、电力、船舶、汽车制造等行业。 1： Product features and uses: This product has the characteristics of cold resistance, softness, wear resistance, oil resistance, etc. It is suitable for connecting cables for mobile electrical appliances with special requirements for cold resistance, oil resistance, etc. for AC rated voltage of 0.6/1KV and below. Currently, this product has been widely used in industries such as metallurgy, power, shipbuilding, and automobile manufacturing. 二：产品执行标准 Q/HL009-2004. 阻燃性能试验执行GB12666-90规定 2： Product execution standard Q/HL009-2004. Flame retardant performance test shall comply with GB12666-90 regulations 1、额定电压U0/U:0.6/1kv 1. Rated voltage U0/U: 0.6/1kv 2、电缆允许工作温度范围:-60℃~+180℃; 2. Allowable working temperature range for cables: -60 ℃~+180 ℃; 3、短路时(***长持续不超过5S)电缆导体的***高温度不超过250℃。 3. The maximum temperature of the cable conductor during a short circuit (with a maximum duration of no more than 5 seconds) shall not exceed 250 ℃. 4、电缆敷设温度应不低于-20℃。 4. The temperature for cable laying should not be lower than -20 ℃. 5、电缆敷设时的***小弯曲半径规定如下: 5. The minimum bending radius for cable laying is specified as follows: 单芯电缆:其弯曲半径不小于电缆外径的15D; Single core cable: Its bending radius shall not be less than 15D of the outer diameter of the cable; 三芯电缆:其弯曲半径不小于电缆外径的12D。(D=电缆外径) Three core cable: Its bending radius shall not be less than 12D of the outer diameter of the cable. (D=outer diameter of the cable) 本产品适用于交流额定电压0.6/1KV及以下固定敷设用动力传输线或移动电器用连接电缆，产品具有耐热辐射、耐寒、耐酸碱及腐蚀性气体、防水等特性，电缆结构柔软 This product is suitable for fixed installation of power transmission lines or connecting cables for mobile appliances with AC rated voltage of 0.6/1KV and below. The product has the characteristics of heat radiation resistance, cold resistance, acid and alkali resistance, corrosive gas resistance, waterproofing, etc. The cable structure is soft 钢丝加强型扁平电缆YVFRB-2G线缆结构： Wire reinforced flat cable YVFRB-2G cable structure: 导体：采用多股柔性无氧铜丝符合DIN VDE 0295等级5 Conductor: Made of multi strand flexible oxygen free copper wire in accordance with DIN VDE 0295 grade 5 绝缘：优质耐油、阻燃丁晴混合体颜色：彩色线芯或编码线芯接地黄绿芯线 Insulation: High quality oil resistant, flame-retardant nitrile mixture Color: Colored core or coded core Grounding yellow green core wire 护套：优质耐油、阻燃丁晴混合体颜色：黑色或灰色 Sheath: High quality oil resistant, flame-retardant nitrile mixture color: black or gray YVFB起重机电缆，行车电缆，起重机电缆 YFFB行车起重电缆安徽天康YVFB起重机电缆，行车电缆，起重机电缆 YFFB行车起重电缆 YVFB Crane Cable, Crane Cable, YFFB Crane Crane Cable Anhui Tiankang YVFB Crane Cable, Crane Cable, YFFB Crane Crane Cable 电气特性： Electrical characteristics: 额定电压：U0/U 300/500 V 测试电压: U 2500V Rated voltage: U0/U 300/500 V Test voltage: U 2500V 温度范围：℃ 移动安装：-15℃～+70℃ 固定安装：-30℃～+70℃ Temperature range: ℃ Mobile installation: -15 ℃~+70 ℃ Fixed installation: -30 ℃~+70 ℃ 型号芯数截面近似宽度mm 近似厚度mm 近似密度(kg/km) 　 Model Number of cores Section approximate width mm approximate thickness mm approximate density (kg/km) 产品大致形状 Product rough shape YFFB 2 0.75 8.0±1.0 4.6±0.5 69 一字排列 YFFB 2 0.75 8.0 ± 1.0 4.6 ± 0.5 69 arranged in a straight line YFFB 3 0.75 10.4±1.0 4.6±0.5 91 一字排列 YFFB 3 0.75 10.4 ± 1.0 4.6 ± 0.5 91 arranged in a straight line YFFB 4 0.75 13.7±1.0 4.6±0.5 119 一字排列 YFFB 4 0.75 13.7 ± 1.0 4.6 ± 0.5 119 arranged in a straight line YFFB 66 0.75 73.5±2.5 8.4±0.5 1197 梅花排列 YFFB 66 0.75 73.5 ± 2.5 8.4 ± 0.5 1197 plum blossom arrangement YFFB(G) 2 0.75 13.5±1.0 4.6±0.5 113 一字排列(带钢丝) YFFB (G) 2 0.75 13.5 ± 1.0 4.6 ± 0.5 113 arranged in a straight line (with steel wire) YFFB(G) 3 0.75 15.9±1.0 4.6±0.5 133 一字排列(带钢丝) YFFB (G) 3 0.75 15.9 ± 1.0 4.6 ± 0.5 133 arranged in a straight line (with steel wire) YVFB 2 0.75 8.0±1.0 4.6±0.5 69 一字排列 YVFB 2 0.75 8.0 ± 1.0 4.6 ± 0.5 69 arranged in a straight line YVFB 3 0.75 10.4±1.0 4.6±0.5 91 一字排列 YVFB 3 0.75 10.4 ± 1.0 4.6 ± 0.5 91 arranged in a straight line YVFB 4 0.75 13.7±1.0 4.6±0.5 119 一字排列 YVFB 4 0.75 13.7 ± 1.0 4.6 ± 0.5 119 arranged in a straight line YVFB 66 0.75 73.5±2.5 8.4±0.5 1197 梅花排列 YVFB 66 0.75 73.5 ± 2.5 8.4 ± 0.5 1197 plum blossom arrangement YVFB(G) 2 0.75 13.5±1.0 4.6±0.5 113 一字排列(带钢丝) YVFB (G) 2 0.75 13.5 ± 1.0 4.6 ± 0.5 113 arranged in a straight line (with steel wire) YVFB(G) 3 0.75 15.9±1.0 4.6±0.5 133 一字排列(带钢丝 YVFB (G) 3 0.75 15.9 ± 1.0 4.6 ± 0.5 133 arranged in a straight line (with steel wire)本产品适用于额定电压0.6/1kv及以下的高温范围和恶劣环境内、作电器设备电能传输线。它具有优良的耐高温、阻燃、耐辐射、耐老化、耐臭氧、防水等特性，并具有很好的耐寒性、耐候性。 This product is suitable for high temperature range and harsh environment with rated voltage of 0.6/1kv and below, as well as power transmission lines for electrical equipment. It has excellent characteristics such as high temperature resistance, flame retardancy, radiation resistance, aging resistance, ozone resistance, waterproofing, and has good cold resistance and weather resistance. 执行标准:采用企业标准 Execution standard: Adopt enterprise standards 使用特性:ZR-YVFR阻燃电缆 Usage characteristics: ZR-YVFR flame-retardant cable 一：产品特点及用途本产品具有耐寒、柔软、耐磨、防油等特性，适用于交流额定电压0.6/1KV及以下具有耐寒、防油等特殊要求的移动电器用连接电缆，目前本产品已广泛应用于冶金、电力、船舶、汽车制造等行业。 1： Product features and uses: This product has the characteristics of cold resistance, softness, wear resistance, oil resistance, etc. It is suitable for connecting cables for mobile electrical appliances with special requirements for cold resistance, oil resistance, etc. for AC rated voltage of 0.6/1KV and below. Currently, this product has been widely used in industries such as metallurgy, power, shipbuilding, and automobile manufacturing. 二：产品执行标准 Q/HL009-2004. 阻燃性能试验执行GB12666-90规定 2： Product execution standard Q/HL009-2004. Flame retardant performance test shall comply with GB12666-90 regulations 1、额定电压U0/U:0.6/1kv 1. Rated voltage U0/U: 0.6/1kv 2、电缆允许工作温度范围:-60℃~+180℃; 2. Allowable working temperature range for cables: -60 ℃~+180 ℃; 3、短路时(***长持续不超过5S)电缆导体的***高温度不超过250℃。 3. The maximum temperature of the cable conductor during a short circuit (with a maximum duration of no more than 5 seconds) shall not exceed 250 ℃. 4、电缆敷设温度应不低于-20℃。 4. The temperature for cable laying should not be lower than -20 ℃. 5、电缆敷设时的***小弯曲半径规定如下: 5. The minimum bending radius for cable laying is specified as follows: 单芯电缆:其弯曲半径不小于电缆外径的15D; Single core cable: Its bending radius shall not be less than 15D of the outer diameter of the cable; 三芯电缆:其弯曲半径不小于电缆外径的12D。(D=电缆外径) Three core cable: Its bending radius shall not be less than 12D of the outer diameter of the cable. (D=outer diameter of the cable) 本产品适用于交流额定电压0.6/1KV及以下固定敷设用动力传输线或移动电器用连接电缆，产品具有耐热辐射、耐寒、耐酸碱及腐蚀性气体、防水等特性，电缆结构柔软 This product is suitable for fixed installation of power transmission lines or connecting cables for mobile appliances with AC rated voltage of 0.6/1KV and below. The product has the characteristics of heat radiation resistance, cold resistance, acid and alkali resistance, corrosive gas resistance, waterproofing, etc. The cable structure is soft 钢丝加强型扁平电缆YVFB-G-3*10本产品具有耐寒、柔软、耐磨、防油等特性。广泛应用于行车、台车、传输机械等移动设备。如冶金、电力、船舶、物流输送系统、港口机械。YVFB-G钢丝加强型扁平电缆，YVFB起重机电缆，行车电缆，起重机电缆 YFFB行车起重电缆安徽天康YVFB起重机电缆，行车电缆 The steel wire reinforced flat cable YVFB-G-3 * 10 has the characteristics of cold resistance, softness, wear resistance, and oil resistance. Widely used in mobile devices such as vehicles, trolleys, and transmission machinery. Such as metallurgy, electricity, ships, logistics and transportation systems, and port machinery. YVFB-G steel wire reinforced flat cable, YVFB crane cable, crane cable, YFFB crane cable, Anhui Tiankang YVFB crane cable, crane cable 钢丝加强型扁平电缆YVFRB-2G广泛应用于行车、台车、传输机械等移动设备。如冶金、电力、船舶、物流输送系统、港口机械。动力传输及控制电缆。产品特点： The steel wire reinforced flat cable YVFRB-2G is widely used in mobile equipment such as cranes, trolleys, and transmission machinery. Such as metallurgy, electricity, ships, logistics and transportation systems, and port machinery. Power transmission and control cables. Product features: 钢丝加强型扁平电缆YVFRB-2G本产品具有耐寒、柔软、耐磨、防油等特性。 The steel wire reinforced flat cable YVFRB-2G has the characteristics of cold resistance, softness, wear resistance, and oil resistance. 比圆电缆的弯曲半径小，节省安装空间。 The bending radius is smaller than that of circular cables, saving installation space. 可多根线缆重叠捆绑使用。 Multiple cables can be overlapped and bundled for use. 芯线单排一字型排列时：悬挂长度＞40m 移动速度＞2m/s 建议增加承力钢丝或纺纶纱 When the core wire is arranged in a single row in a straight line: suspension length>40m, moving speed>2m/s, it is recommended to increase the load-bearing steel wire or spun nylon yarn 芯线梅花型绞合排列时：悬挂长度＞80m 移动速度＞4-10m/s建议增加承力钢丝 When the core wire is twisted in a plum blossom pattern: suspension length>80m, moving speed>4-10m/s, it is recommended to increase the load-bearing steel wire 钢丝加强型扁平电缆YVFRB-2G线缆结构： Wire reinforced flat cable YVFRB-2G cable structure: 导体：采用多股柔性无氧铜丝符合DIN VDE 0295等级5 Conductor: Made of multi strand flexible oxygen free copper wire in accordance with DIN VDE 0295 grade 5 绝缘：优质耐油、阻燃丁晴混合体颜色：彩色线芯或编码线芯接地黄绿芯线 Insulation: High quality oil resistant, flame-retardant nitrile mixture Color: Colored core or coded core Grounding yellow green core wire 护套：优质耐油、阻燃丁晴混合体颜色：黑色或灰色 Sheath: High quality oil resistant, flame-retardant nitrile mixture color: black or gray YVFB起重机电缆，行车电缆，起重机电缆 YFFB行车起重电缆安徽天康YVFB起重机电缆，行车电缆，起重机电缆 YFFB行车起重电缆 YVFB Crane Cable, Crane Cable, YFFB Crane Crane Cable Anhui Tiankang YVFB Crane Cable, Crane Cable, YFFB Crane Crane Cable 电气特性： Electrical characteristics: 额定电压：U0/U 300/500 V 测试电压: U 2500V Rated voltage: U0/U 300/500 V Test voltage: U 2500V 温度范围：℃ 移动安装：-15℃～+70℃ 固定安装：-30℃～+70℃ Temperature range: ℃ Mobile installation: -15 ℃~+70 ℃ Fixed installation: -30 ℃~+70 ℃ 型号芯数截面近似宽度mm 近似厚度mm 近似密度(kg/km) 　产品大致形状 Model Number of cores Section approximate width mm approximate thickness mm approximate density (kg/km) Product approximate shape YFFB 2 0.75 8.0±1.0 4.6±0.5 69 一字排列 YFFB 2 0.75 8.0 ± 1.0 4.6 ± 0.5 69 arranged in a straight line YFFB 3 0.75 10.4±1.0 4.6±0.5 91 一字排列 YFFB 3 0.75 10.4 ± 1.0 4.6 ± 0.5 91 arranged in a straight line YFFB 4 0.75 13.7±1.0 4.6±0.5 119 一字排列 YFFB 4 0.75 13.7 ± 1.0 4.6 ± 0.5 119 arranged in a straight line YFFB 66 0.75 73.5±2.5 8.4±0.5 1197 梅花排列 YFFB 66 0.75 73.5 ± 2.5 8.4 ± 0.5 1197 plum blossom arrangement YFFB(G) 2 0.75 13.5±1.0 4.6±0.5 113 一字排列(带钢丝) YFFB (G) 2 0.75 13.5 ± 1.0 4.6 ± 0.5 113 arranged in a straight line (with steel wire) YFFB(G) 3 0.75 15.9±1.0 4.6±0.5 133 一字排列(带钢丝) YFFB (G) 3 0.75 15.9 ± 1.0 4.6 ± 0.5 133 arranged in a straight line (with steel wire) YVFB 2 0.75 8.0±1.0 4.6±0.5 69 一字排列 YVFB 2 0.75 8.0 ± 1.0 4.6 ± 0.5 69 arranged in a straight line YVFB 3 0.75 10.4±1.0 4.6±0.5 91 一字排列 YVFB 3 0.75 10.4 ± 1.0 4.6 ± 0.5 91 arranged in a straight line YVFB 4 0.75 13.7±1.0 4.6±0.5 119 一字排列 YVFB 4 0.75 13.7 ± 1.0 4.6 ± 0.5 119 arranged in a straight line YVFB 66 0.75 73.5±2.5 8.4±0.5 1197 梅花排列 YVFB 66 0.75 73.5 ± 2.5 8.4 ± 0.5 1197 plum blossom arrangement YVFB(G) 2 0.75 13.5±1.0 4.6±0.5 113 一字排列(带钢丝) YVFB (G) 2 0.75 13.5 ± 1.0 4.6 ± 0.5 113 arranged in a straight line (with steel wire) YVFB(G) 3 0.75 15.9±1.0 4.6±0.5 133 一字排列(带钢丝 YVFB (G) 3 0.75 15.9 ± 1.0 4.6 ± 0.5 133 arranged in a straight line (with steel wire)本产品适用于额定电压0.6/1kv及以下的高温范围和恶劣环境内、作电器设备电能传输线。它具有优良的耐高温、阻燃、耐辐射、耐老化、耐臭氧、防水等特性，并具有很好的耐寒性、耐候性。 This product is suitable for high temperature range and harsh environment with rated voltage of 0.6/1kv and below, as well as power transmission lines for electrical equipment. It has excellent characteristics such as high temperature resistance, flame retardancy, radiation resistance, aging resistance, ozone resistance, waterproofing, and has good cold resistance and weather resistance. 执行标准:采用企业标准 Execution standard: Adopt enterprise standards 使用特性:ZR-YVFR阻燃电缆 Usage characteristics: ZR-YVFR flame-retardant cable 一：产品特点及用途本产品具有耐寒、柔软、耐磨、防油等特性，适用于交流额定电压0.6/1KV及以下具有耐寒、防油等特殊要求的移动电器用连接电缆，目前本产品已广泛应用于冶金、电力、船舶、汽车制造等行业。 1： Product features and uses: This product has the characteristics of cold resistance, softness, wear resistance, oil resistance, etc. It is suitable for connecting cables for mobile electrical appliances with special requirements for cold resistance, oil resistance, etc. for AC rated voltage of 0.6/1KV and below. Currently, this product has been widely used in industries such as metallurgy, power, shipbuilding, and automobile manufacturing. 二：产品执行标准 Q/HL009-2004. 阻燃性能试验执行GB12666-90规定 2： Product execution standard Q/HL009-2004. Flame retardant performance test shall comply with GB12666-90 regulations 1、额定电压U0/U:0.6/1kv 1. Rated voltage U0/U: 0.6/1kv 2、电缆允许工作温度范围:-60℃~+180℃; 2. Allowable working temperature range for cables: -60 ℃~+180 ℃; 3、短路时(***长持续不超过5S)电缆导体的***高温度不超过250℃。 3. The maximum temperature of the cable conductor during a short circuit (with a maximum duration of no more than 5 seconds) shall not exceed 250 ℃. 4、电缆敷设温度应不低于-20℃。 4. The temperature for cable laying should not be lower than -20 ℃. 5、电缆敷设时的***小弯曲半径规定如下: 5. The minimum bending radius for cable laying is specified as follows: 单芯电缆:其弯曲半径不小于电缆外径的15D; Single core cable: Its bending radius shall not be less than 15D of the outer diameter of the cable; 三芯电缆:其弯曲半径不小于电缆外径的12D。(D=电缆外径) Three core cable: Its bending radius shall not be less than 12D of the outer diameter of the cable. (D=outer diameter of the cable) 本产品适用于交流额定电压0.6/1KV及以下固定敷设用动力传输线或移动电器用连接电缆，产品具有耐热辐射、耐寒、耐酸碱及腐蚀性气体、防水等特性，电缆结构柔软 This product is suitable for fixed installation of power transmission lines or connecting cables for mobile appliances with AC rated voltage of 0.6/1KV and below. The product has the characteristics of heat radiation resistance, cold resistance, acid and alkali resistance, corrosive gas resistance, waterproofing, etc. The cable structure is soft 钢丝加强型扁平电缆YVFB-G-3*10本产品具有耐寒、柔软、耐磨、防油等特性。广泛应用于行车、台车、传输机械等移动设备。如冶金、电力、船舶、物流输送系统、港口机械。YVFB-G钢丝加强型扁平电缆，YVFB起重机电缆，行车电缆，起重机电缆 YFFB行车起重电缆安徽天康YVFB起重机电缆，行车电缆 The steel wire reinforced flat cable YVFB-G-3 * 10 has the characteristics of cold resistance, softness, wear resistance, and oil resistance. Widely used in mobile devices such as vehicles, trolleys, and transmission machinery. Such as metallurgy, electricity, ships, logistics and transportation systems, and port machinery. YVFB-G steel wire reinforced flat cable, YVFB crane cable, crane cable, YFFB crane cable, Anhui Tiankang YVFB crane cable, crane cable 钢丝加强型扁平电缆YVFRB-2G广泛应用于行车、台车、传输机械等移动设备。如冶金、电力、船舶、物流输送系统、港口机械。动力传输及控制电缆。产品特点： The steel wire reinforced flat cable YVFRB-2G is widely used in mobile equipment such as cranes, trolleys, and transmission machinery. Such as metallurgy, electricity, ships, logistics and transportation systems, and port machinery. Power transmission and control cables. Product features: 钢丝加强型扁平电缆YVFRB-2G本产品具有耐寒、柔软、耐磨、防油等特性。 The steel wire reinforced flat cable YVFRB-2G has the characteristics of cold resistance, softness, wear resistance, and oil resistance. 比圆电缆的弯曲半径小，节省安装空间。 The bending radius is smaller than that of circular cables, saving installation space. 可多根线缆重叠捆绑使用。 Multiple cables can be overlapped and bundled for use. 芯线单排一字型排列时：悬挂长度＞40m 移动速度＞2m/s 建议增加承力钢丝或纺纶纱 When the core wire is arranged in a single row in a straight line: suspension length>40m, moving speed>2m/s, it is recommended to increase the load-bearing steel wire or spun nylon yarn 芯线梅花型绞合排列时：悬挂长度＞80m 移动速度＞4-10m/s建议增加承力钢丝 When the core wire is twisted in a plum blossom pattern: suspension length>80m, moving speed>4-10m/s, it is recommended to increase the load-bearing steel wire 钢丝加强型扁平电缆YVFRB-2G线缆结构： Wire reinforced flat cable YVFRB-2G cable structure: 导体：采用多股柔性无氧铜丝符合DIN VDE 0295等级5 Conductor: Made of multi strand flexible oxygen free copper wire in accordance with DIN VDE 0295 grade 5 绝缘：优质耐油、阻燃丁晴混合体颜色：彩色线芯或编码线芯接地黄绿芯线 Insulation: High quality oil resistant, flame-retardant nitrile mixture Color: Colored core or coded core Grounding yellow green core wire 护套：优质耐油、阻燃丁晴混合体颜色：黑色或灰色 Sheath: High quality oil resistant, flame-retardant nitrile mixture color: black or gray YVFB起重机电缆，行车电缆，起重机电缆 YFFB行车起重电缆安徽天康YVFB起重机电缆，行车电缆，起重机电缆 YFFB行车起重电缆 YVFB Crane Cable, Crane Cable, YFFB Crane Crane Cable Anhui Tiankang YVFB Crane Cable, Crane Cable, YFFB Crane Crane Cable 电气特性： Electrical characteristics: 额定电压：U0/U 300/500 V 测试电压: U 2500V Rated voltage: U0/U 300/500 V Test voltage: U 2500V 温度范围：℃ 移动安装：-15℃～+70℃ 固定安装：-30℃～+70℃ Temperature range: ℃ Mobile installation: -15 ℃~+70 ℃ Fixed installation: -30 ℃~+70 ℃ 型号芯数截面近似宽度mm 近似厚度mm 近似密度(kg/km) 　产品大致形状 Model Number of cores Section approximate width mm approximate thickness mm approximate density (kg/km) Product approximate shape YFFB 2 0.75 8.0±1.0 4.6±0.5 69 一字排列 YFFB 2 0.75 8.0 ± 1.0 4.6 ± 0.5 69 arranged in a straight line YFFB 3 0.75 10.4±1.0 4.6±0.5 91 一字排列 YFFB 3 0.75 10.4 ± 1.0 4.6 ± 0.5 91 arranged in a straight line YFFB 4 0.75 13.7±1.0 4.6±0.5 119 一字排列 YFFB 4 0.75 13.7 ± 1.0 4.6 ± 0.5 119 arranged in a straight line YFFB 66 0.75 73.5±2.5 8.4±0.5 1197 梅花排列 YFFB 66 0.75 73.5 ± 2.5 8.4 ± 0.5 1197 plum blossom arrangement YFFB(G) 2 0.75 13.5±1.0 4.6±0.5 113 一字排列(带钢丝) YFFB (G) 2 0.75 13.5 ± 1.0 4.6 ± 0.5 113 arranged in a straight line (with steel wire) YFFB(G) 3 0.75 15.9±1.0 4.6±0.5 133 一字排列(带钢丝) YFFB (G) 3 0.75 15.9 ± 1.0 4.6 ± 0.5 133 arranged in a straight line (with steel wire) YVFB 2 0.75 8.0±1.0 4.6±0.5 69 一字排列 YVFB 2 0.75 8.0 ± 1.0 4.6 ± 0.5 69 arranged in a straight line YVFB 3 0.75 10.4±1.0 4.6±0.5 91 一字排列 YVFB 3 0.75 10.4 ± 1.0 4.6 ± 0.5 91 arranged in a straight line YVFB 4 0.75 13.7±1.0 4.6±0.5 119 一字排列 YVFB 4 0.75 13.7 ± 1.0 4.6 ± 0.5 119 arranged in a straight line YVFB 66 0.75 73.5±2.5 8.4±0.5 1197 梅花排列 YVFB 66 0.75 73.5 ± 2.5 8.4 ± 0.5 1197 plum blossom arrangement YVFB(G) 2 0.75 13.5±1.0 4.6±0.5 113 一字排列(带钢丝) YVFB (G) 2 0.75 13.5 ± 1.0 4.6 ± 0.5 113 arranged in a straight line (with steel wire) YVFB(G) 3 0.75 15.9±1.0 4.6±0.5 133 一字排列(带钢丝 YVFB (G) 3 0.75 15.9 ± 1.0 4.6 ± 0.5 133 arranged in a straight line (with steel wire)
