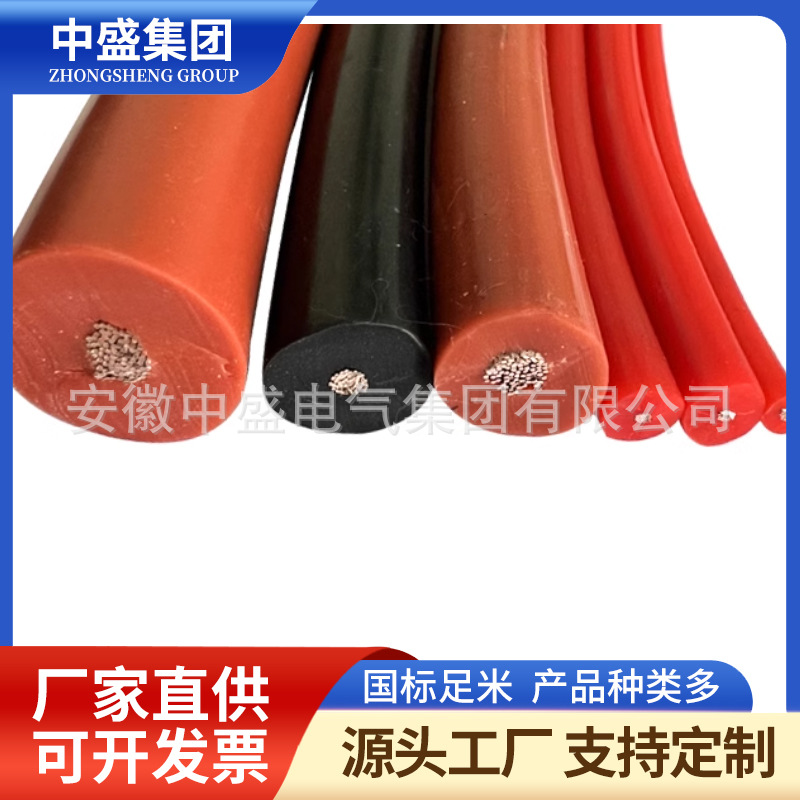

产品名称：Silicone rubber high-voltage lineAGG-DC-25KV 6
浏览：
添加时间：2025-09-28 14:17:46
推荐度：

介绍：

型号：AGG Model: AGG 执行标准：Q/IRMV2-2008 Execution standard: Q/IRMV2-2008 产品特性： Product Features 1、额定电压： 5KV、10KV、15KV、20KV、25KV、30KV、50KV、100KV 1. Rated voltage: 5KV, 10KV, 15KV, 20KV, 25KV, 30KV, 50KV, 100KV 2、工作温度：-60～+200℃ 2. Working temperature: -60~+200 ℃ 3、导体：绞合镀锡铜线 3. Conductor: Stranded tinned copper wire 4、绝缘：硅橡胶 4. Insulation: Silicone rubber 5、颜色：红/黄/兰/白/黑/黄绿/棕等 5. Color: Red/Yellow/Blue/White/Black/Yellow Green/Brown, etc 特点/用途： Features/Applications: 具有优良的高温耐低温性能，具有优良的电绝缘性能，优良的化学稳定性能，耐高电压，耐老化，使用寿命长。且柔软便于安装。 It has excellent high temperature and low temperature resistance, excellent electrical insulation performance, excellent chemical stability, high voltage resistance, aging resistance, and long service life. And it is soft and easy to install. 广泛应用于煤气点火、汽车点火、高压测试台、电视机、微波炉、霓红灯、仪器仪表内部高压、安装连接用电子电器及其他器械的高电压场合。 Widely used in high voltage applications such as gas ignition, car ignition, high-voltage test benches, televisions, microwave ovens, neon lights, internal high voltage of instruments and meters, installation and connection of electronic appliances, and other instruments.

Specification structure and technical parameters:

电压等级 voltage level KV	导体标称截面Nominal cross-section of conductor mm2	导体结构Conductor structure	绝缘厚度Insulation thickness mm	平均外径Average outer diameter mm	20 ℃ 时导体电阻zui大值The maximum value of conductor resistance at 20 ℃ Ω/km
电压等级 voltage level KV	导体标称截面Nominal cross-section of conductor mm2	根数/单线直径Number of roots/diameter of a single line	绝缘厚度Insulation thickness mm	平均外径Average outer diameter mm
5	0.20	7/0.20	1.00	2.60	95.0
	0.35	19/0.16	1.00	2.80	53.1
	0.50	16/0.20	1.00	3.00	10.1
	0.75	24/0.20	1.20	3.60	26.7
	1.00	32/0.20	1.30	4.00	20.0
	1.50	30/0.25	1.50	4.60	13.7
	2.50	49/0.25	1.60	5.40	8.21
10	0.20	7/0.20	1.30	3.20	95.0
	0.35	19/0.16	1.30	3.40	53.1
	0.50	16/0.20	1.30	3.60	10.1
	0.75	24/0.20	1.50	4.20	26.7
	1.00	32/0.20	1.50	4.40	20.0
	1.50	30/0.25	1.80	5.20	13.7
	2.50	49/0.25	1.80	5.80	8.21
	4.00	56/0.30	2.00	6.80	5.09
	6.00	84/0.30	2.00	7.60	3.39
