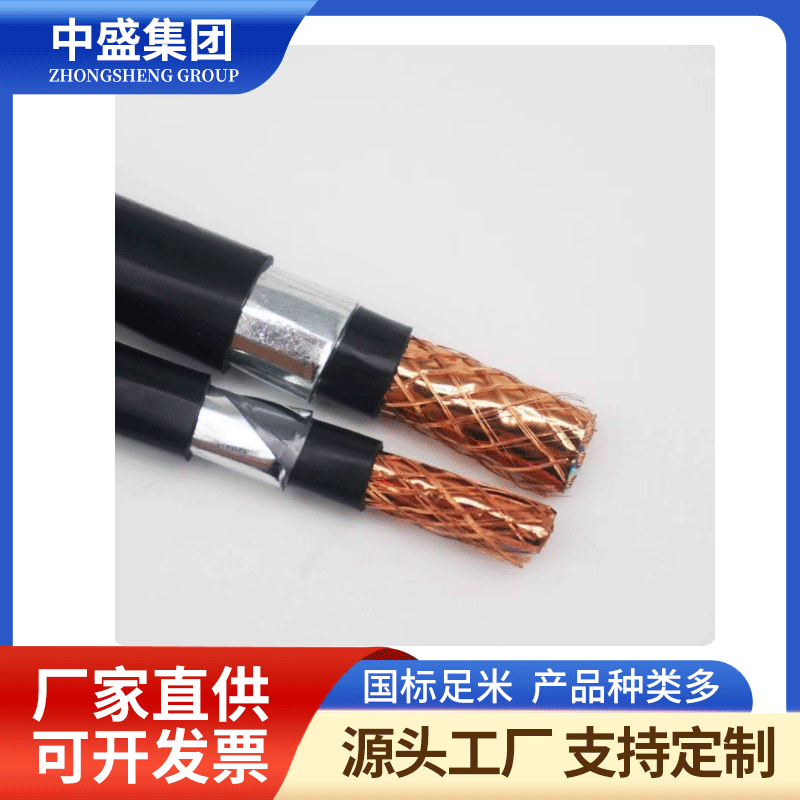

产品名称：阻燃钢带铠装计算机电缆ZR-DJYPVRP22
浏览：
添加时间：2025-10-16 13:51:22
推荐度：

介绍：

1、额定电压U0/U为300/500V；电缆导体的长期工作温度：聚氯乙烯绝缘为70℃、105℃两种，聚乙烯绝缘为70℃，交联聚乙烯绝缘为90℃(绝缘交联类型可分为硅烷交联和辐照交联)。敷设电缆时的环境温度不低于0℃。电缆允许在环境温度-40～50℃，相对湿度不大于80%时作固定敷设或移动使用。
1. The rated voltage U0/U is 300/500V; The long-term working temperature of cable conductors: PVC insulation is available at 70 ℃ and 105 ℃, polyethylene insulation is available at 70 ℃, and cross-linked polyethylene insulation is available at 90 ℃ (insulation cross-linking types can be divided into silane cross-linking and radiation cross-linking). The ambient temperature during cable laying shall not be lower than 0 ℃. Cables are allowed to be fixed or moved for use in environments with temperatures ranging from -40 to 50 ℃ and relative humidity not exceeding 80%.
2、敷设安装电缆时的小弯曲半径：无铠装层的电缆，应不小于电缆外径的6倍，有铠装结构的电缆，应不小于电缆外径的12倍，有屏蔽层结构的软电缆，应不小于电缆外径的10倍。
2. The small bending radius when laying and installing cables: for cables without armor layer, it should not be less than 6 times the outer diameter of the cable, for cables with armor structure, it should not be less than 12 times the outer diameter of the cable, and for flexible cables with shielding layer structure, it should not be less than 10 times the outer diameter of the cable.

3、生产范围：

型号标称截面对数
DJYVP,DJYVP2,DJYVP3,DJYVPV,DJYP2V,DJYP3V,
DJYPVP,DJYP2VP2,DJYP3VP3,DJYVPR,DJYVP2R,
DJYVP3R,DJYPVR,DJYP2VR,DJYP3VR,DJYPVPR,
DJYP2VP2R,DJYP3VP3R 0.50,0.75,1.0,1.5,2.5 1-24
DJYVP22,DJYVP2-22,DJYVP3-22,DJYPVP22,
DJYVP2VP2-22,DJYVP3VP3-22 0.50,0.75,1.0,1.5,2.5 4-37

4.电缆型号、名称及使用范围：
4. Cable model, name, and scope of use:
型号名称使用范围
Scope of use of model name
DJYVP
DJYVP
DJYVP2 聚乙烯绝缘对绞组铜线编织总屏蔽聚氯乙烯护套计算机电缆
DJYVP2 polyethylene insulated twisted pair copper wire braided total shielding PVC sheathed computer cable
聚乙烯绝缘对绞组铜带总屏蔽聚氯乙烯护套计算机电缆固定敷设在室内、电缆沟或管道内
Polyethylene insulated twisted pair copper tape with total shielding and polyvinyl chloride sheathed computer cables are fixed and laid indoors, in cable trenches or pipelines
DJYVP3
DJYVP3
DJYPV 聚乙烯绝缘对绞组铝塑复合带总屏蔽聚氯乙烯护套计算机电缆
DJYPV polyethylene insulated twisted pair aluminum-plastic composite tape total shielding polyvinyl chloride sheathed computer cable
聚乙烯绝缘对绞组铜线编织分屏蔽聚氯乙烯护套计算机电缆
Polyethylene insulated twisted pair copper wire braided shielded PVC sheathed computer cable
DJYP2V
DJYP2V
DJYP3V 聚乙烯绝缘对绞组铜带分屏蔽聚氯乙烯护套计算机电缆
DJYP3V polyethylene insulated twisted pair copper tape shielded polyvinyl chloride sheathed computer cable
聚乙烯绝缘对绞组铝塑复合带分屏蔽聚氯乙烯护套计算机电缆
Polyethylene insulated twisted pair aluminum-plastic composite tape shielded PVC sheathed computer cable
DJYPVP
DJYPVP
DJYP2VP2 聚乙烯绝缘对绞组铜丝编织分屏及总屏蔽聚氯乙烯护套计算机电缆
DJYP2VP2 polyethylene insulated twisted pair copper wire braided split screen and overall shielded PVC sheathed computer cable
聚乙烯绝缘对绞组铜带分屏及总屏蔽聚氯乙烯护套计算机电缆
Polyethylene insulated twisted pair copper tape split screen and total shielding PVC sheathed computer cable
DJYP3VP3 聚乙烯绝缘对绞组铝塑复合带分屏蔽及总屏蔽聚氯乙烯护套计算机电缆
DJYP3VP3 polyethylene insulated twisted pair aluminum-plastic composite tape with partial shielding and total shielding PVC sheathed computer cable
DJYVPR 聚乙烯绝缘对绞组铜丝编织总屏蔽聚氯乙烯护套计算机软电缆适用于需要频繁移动或柔软的场合
DJYVPR polyethylene insulated twisted pair copper wire braided total shielding PVC sheathed computer flexible cable is suitable for situations that require frequent movement or flexibility
DJYVP2R
DJYVP2R
DJYVP3R 聚乙烯绝缘对绞组铜带总屏蔽聚氯乙烯护套计算机软电缆
DJYVP3R polyethylene insulated twisted pair copper tape total shielding polyvinyl chloride sheathed computer flexible cable
聚乙烯绝缘对绞组铝塑复合带总屏蔽聚氯乙烯护套计算机软电缆
Polyethylene insulated twisted pair aluminum-plastic composite tape total shielding polyvinyl chloride sheathed computer flexible cable
DJYPVR
DJYPVR
DJYP2VR 聚乙烯绝缘对绞组铜线编织分屏蔽聚氯乙烯护套计算机软电缆
DJYP2VR polyethylene insulated twisted pair copper wire braided shielded PVC sheathed computer flexible cable
聚乙烯绝缘对绞组铜带分屏蔽聚氯乙烯护套计算机软电缆
Polyethylene insulated twisted pair copper tape shielded PVC sheathed computer flexible cable
DJYVP3R 聚乙烯绝缘对绞组铝塑复合带分屏蔽聚氯乙烯护套计算机软电缆
DJYVP3R polyethylene insulated twisted pair aluminum-plastic composite tape shielded PVC sheathed computer flexible cable
DJYPVPR 聚乙烯绝缘对绞组铜线编织分屏蔽及总屏蔽聚氯乙烯护套计算机软电缆
DJYPVPR polyethylene insulated twisted pair copper wire braided shield and total shield PVC sheathed computer flexible cable
DJYP2VP2R
DJYP2VP2R
DJYP3VP3R 聚乙烯绝缘对绞组铜带分屏蔽及总屏蔽聚氯乙烯护套计算机软电缆
DJYP3VP3R polyethylene insulated twisted pair copper tape with partial and total shielding, PVC sheathed computer flexible cable
聚乙烯绝缘对绞组铝塑复合带分屏蔽及总屏蔽聚氯乙烯护套计算机软电缆
Polyethylene insulated twisted pair aluminum-plastic composite tape with partial shielding and total shielding, PVC sheathed computer flexible cable
DJYVP22
DJYVP22
DJYVP2-22 聚乙烯绝缘对绞组铜线编织总屏蔽钢带铠装聚氯乙烯护套计算机电缆
DJYVP2-22 polyethylene insulated twisted pair copper wire braided total shielding steel tape armored polyvinyl chloride sheathed computer cable
聚乙烯绝缘对绞组铜带总屏蔽钢带铠装聚氯乙烯护套计算机电缆直埋敷设
Polyethylene insulated twisted pair copper tape total shielding steel tape armored polyvinyl chloride sheathed computer cable direct burial laying
DJYVP3-22
DJYVP3-22
DJYPVP22 聚乙烯绝缘对绞组铝塑复合带总屏蔽钢带铠装聚氯乙烯护套计算机电缆
DJYPVP22 polyethylene insulated twisted pair aluminum-plastic composite tape total shielding steel tape armored polyvinyl chloride sheathed computer cable
聚乙烯绝缘对绞组铜线编织分屏蔽总屏蔽钢带铠装聚氯乙烯护套计算机电缆
Polyethylene insulated twisted pair copper wire braided, shielded, overall shielded, steel tape armored, polyvinyl chloride sheathed computer cable
DJYVP2VP2-22
DJYVP2VP2-22
DJYVP3VP3-22 聚乙烯绝缘对绞组铜带分屏蔽总屏蔽钢带铠装聚氯乙烯护套计算机电缆
DJYVP3VP3-22 Polyethylene Insulated Twisted Pair Copper Strip Sub shielded Total Shielded Steel Strip Armored PVC Sheath Computer Cable
聚乙烯绝缘对绞组铝塑复合带分屏蔽总屏蔽钢带铠装聚氯乙烯护套计算机电缆
Polyethylene insulated twisted pair aluminum-plastic composite tape with partial shielding, total shielding, steel tape armored, polyvinyl chloride sheathed computer cable

5.使用特性和运行敷设条件：
5. Usage characteristics and operating laying conditions:
(１)产品额定电压(U0/U)：300/500v;
(1) Rated voltage of the product (U0/U): 300/500v;
(２)长期工作温度为70℃；
(2) The long-term working temperature is 70 ℃;
(３)敷设时环境温度不低于：固定敷设温度-40℃，非固定敷设-15℃；
(3) The ambient temperature during laying shall not be lower than: fixed laying temperature -40 ℃, non fixed laying temperature -15 ℃;
(４) 小弯曲半径：无铠装层应不小于电缆外径的6倍，带铠装层的电缆应不小于电缆外径的12倍。
(4) Small bending radius: No armor layer should be less than 6 times the outer diameter of the cable, and cables with armor layer should be no less than 12 times the outer diameter of the cable.
