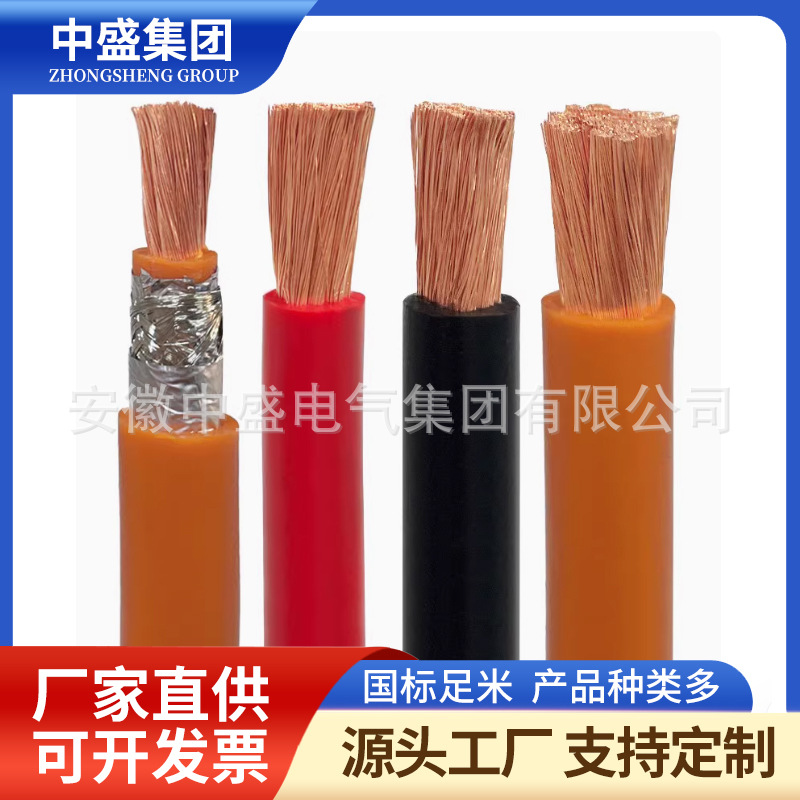

产品名称：Motor lead wire switchgear cable JBHF 6KV
浏览：
添加时间：2025-11-27 13:48:11
推荐度：

介绍：

电机引接线的详细介绍

Detailed introduction of motor wiring

一、概述：

1. Overview:

电机引接线，电机绕组引接软线软电缆适用于*地与电机绕组连接并引出机壳或绕组与电机上的接线柱连接用电缆。其长期工作温度Z高为70℃，敷设时Z大弯曲半径大于电缆外径的4倍。

Motor lead wires, motor winding lead wires, and flexible cables are suitable for connecting the ground to the motor winding and connecting the casing or winding to the terminal post on the motor. Its long-term working temperature Z is 70 ℃, and the bending radius of Z during installation is greater than 4 times the outer diameter of the cable.

电机引接线适用于交流额定电压6000V及以下B、F、H级绝缘电机电器用引接线，也适用于湿热地区。电线的长期允许工作温度应不超过：B级 65度 F级 100度，短时120度 H级 180度。

The motor lead wire is suitable for use in B, F, and H grade insulated motor electrical appliances with AC rated voltage of 6000V and below, as well as in humid and hot areas. The long-term allowable working temperature of the wire should not exceed: B-grade 65 degrees, F-grade 100 degrees, short-term 120 degrees, H-grade 180 degrees.

铜芯橡皮绝缘 ( 阻燃 ) 丁晴护套电机绕组引接线适用于电机、电器绕组连接并引出机壳或绕组与电机壳体上的固定连接

Copper core rubber insulation (flame retardant) nitrile sheath motor winding lead wire is suitable for connecting motor and electrical windings and leading them out of the casing or fixing the connection between the winding and the motor casing

二、电机引接线产品标准：

2、 Motor lead wire product standard:

电机引接线按JB6213.3－1992执行

The motor wiring shall be implemented in accordance with JB6213.3-1992

三、电机引接线规格型号：

3、 Specification and model of motor lead wire:

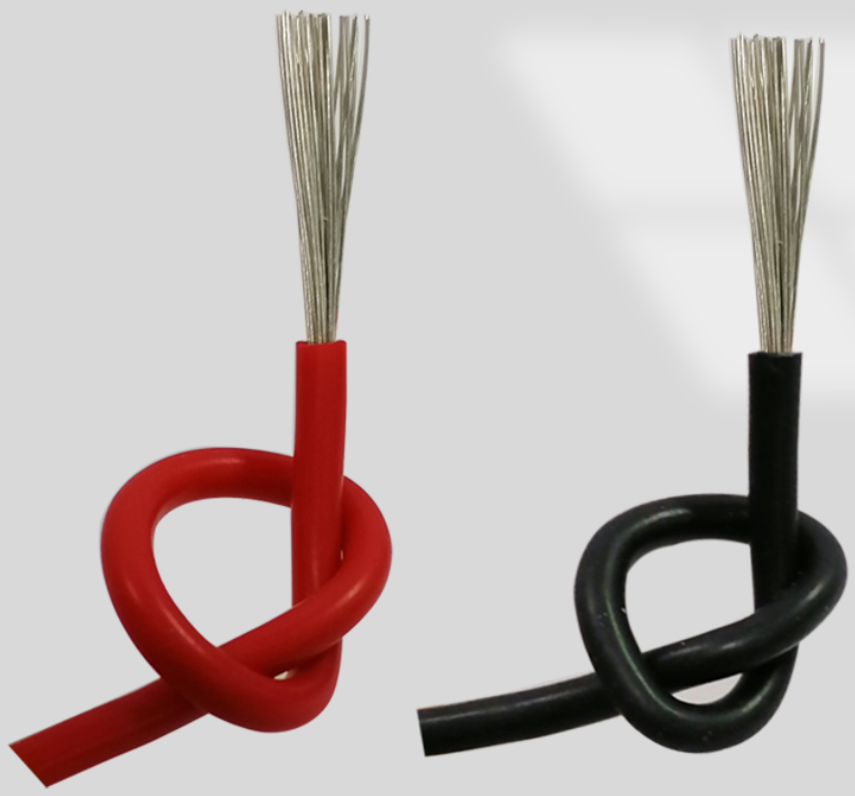

ZR-JEFR JBQ JXF JBHF JXN 电机引接线

ZR-JEFR JBQ JXF JBHF JXN motor lead wire

型号model	产品名称Product Name	用途purpose	导体长期允许Long term allowance for conductors	额定电压rated voltage	标称截面nominal cross-section
			工作温度 ℃Working temperature ℃	V	mm2

JXN	铜芯橡皮绝缘 ( 阻燃 ) 丁晴护套电机绕组引接线Copper core rubber insulated (flame-retardant) nitrile sheathed motor winding lead wire	适用于电机、电器绕组连接并引出机壳或绕组与电机壳体上的固定连接Suitable for connecting motor and electrical windings and leading them out of the casing, or for fixed connections between windings and motor casings	70	500	0.5 ~ 120
JBQ				1000	0.5 ~ 120
JEFR				3000	2.5 ~ 120
ZR-JXN				6000	2.5 ~ 240
ZR-JEFR
JXF	铜芯橡皮绝缘氯丁护套电机绕组引接线铜芯橡皮绝缘氯丁护套电机绕组引接线 Copper core rubber insulated chloroprene sheathed motor winding lead wire			500	0.5 ~ 120
JBHF				1000	0.5 ~ 120
				3000	0.5 ~ 120
				6000	2.5 ~ 240
