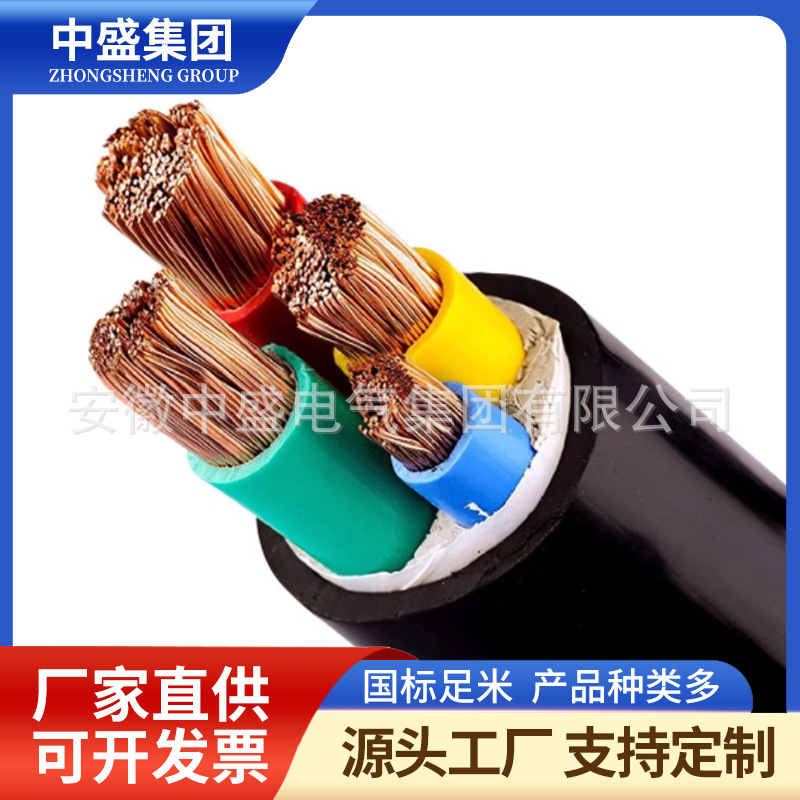

产品名称：Variable frequency cable BPYJVRPP2R
浏览：
添加时间：2025-12-02 14:28:24
推荐度：

介绍：

一、变频电缆主要用于变频电源和变频电机之间连接用的电缆，以及额定电压0.6/1kV及以下的输配电线路中，作传输电能用。变频电缆尤其适用于冶金，纺织，金属加工，造纸、矿山，铁路和食品加工等行业。现我公司生产的普通型变频电力电缆、耐高温型变频电力电缆、柔软型变频电力电缆和低烟无卤型变频电力电缆可满足不同场合的使用。

1、 Variable frequency cables are mainly used for connecting cables between variable frequency power supplies and variable frequency motors, as well as for transmitting electrical energy in transmission and distribution lines with a rated voltage of 0.6/1kV and below. Variable frequency cables are particularly suitable for industries such as metallurgy, textiles, metal processing, papermaking, mining, railways, and food processing. The ordinary variable frequency power cables, high-temperature resistant variable frequency power cables, flexible variable frequency power cables, and low smoke halogen-free variable frequency power cables produced by our company can meet the needs of different occasions.

二、变频电缆的使用条件：

2、 The usage conditions of variable frequency cables:

1 变频电缆额定电压∪0/∪：0.6/1KV。

Rated voltage of variable frequency cable ∪ 0/∪: 0.6/1KV.

2 变频电缆电缆导体长期允许工作温度为：

The long-term allowable working temperature for the conductor of the variable frequency cable is:

氟塑料绝缘层为200/260℃；

Fluoroplastic insulation layer at 200/260 ℃;

聚氯乙烯绝缘层为70/90℃；

The PVC insulation layer is at 70/90 ℃;

硅橡胶绝缘层为180℃；

The silicone rubber insulation layer is at 180 ℃;

交联聚乙烯绝缘层为90℃；

The cross-linked polyethylene insulation layer is at 90 ℃;

3 变频电缆电缆允许zui小弯曲半径不小于15D（D-电缆外径mm）

The maximum allowable bending radius for variable frequency cables is not less than 15D (D-cable outer diameter mm)

三、变频电缆的产品性能

3、 Product performance of variable frequency cables

1 交联聚乙烯绝缘、氟塑料绝缘、硅橡胶绝缘、聚氯乙烯绝缘、耐温耐候性好。

1. Cross linked polyethylene insulation, fluoroplastic insulation, silicone rubber insulation, polyvinyl chloride insulation, good temperature and weather resistance.

2 变频电缆低传输阻抗，电磁兼容性好。

2 variable frequency cables have low transmission impedance and good electromagnetic compatibility.

3 低工作电容。

3 low working capacitors.

4 变频电缆良好的抗干扰和低辐射性能。

4. The frequency conversion cable has good anti-interference and low radiation performance.

5 变频电缆对称的三芯电缆结构设计，具有比四芯电缆更好的传输性能。

The symmetrical three core cable structure design of 5 variable frequency cables has better transmission performance than four core cables.

6 变频电缆特点分析变频调速技术关系到变频电机、变频电源和连接电缆，这段电缆长度并不很长，截面也不很大，绝缘性能属于电力电缆范畴，因为实际的工作频率为30～300 Hz，常简称为变频电缆。变频电缆作为电机与变频控制器的电力传输载体，由于传输功率大、传输频率变化时间短造就了它***的工作特点：1.脉冲电压对绝缘的影响大；2.电缆本体对外发射电磁波；3.中性线电流的叠加。这就要求电缆具有1.抑制高次谐波电压累加造成绝缘击穿；2.抑制高次谐波电流累加造成中性线过载；3.抑制高频电磁波对环境的污染三大问题。为了解决这三大问题就要求电缆具有1.对称的结构；2.良好的电磁屏蔽；3.增大中性线载流能力。一、由于需要对称得电缆结构，所以电缆芯数为3芯、3+1芯（其中一芯为同心导体结构——T）、3+3芯（3大3小结构）。二、由于需要良好的电磁屏蔽，所以该电缆须***金属屏蔽。三、由于需要增大中性线载流能力，所以建议该电缆中心线截面大于等于一半主线芯截面，zui好等于主线芯截面。

Analysis of the characteristics of variable frequency cables: Variable frequency speed regulation technology is related to variable frequency motors, variable frequency power supplies, and connecting cables. This section of cable is not very long and has a small cross-section, and its insulation performance belongs to the category of power cables. Because the actual working frequency is 30-300 Hz, it is often referred to as variable frequency cables. As the power transmission carrier for motors and variable frequency controllers, variable frequency cables have the following working characteristics due to their high transmission power and short transmission frequency change time: 1. Pulse voltage has a significant impact on insulation; 2. The cable body emits electromagnetic waves externally; 3. The superposition of neutral current. This requires cables to have the ability to suppress insulation breakdown caused by the accumulation of high-order harmonic voltages; 2. Suppress the accumulation of high-order harmonic currents causing neutral line overload; 3. Suppress the three major issues of environmental pollution caused by high-frequency electromagnetic waves. To solve these three major problems, cables are required to have a symmetrical structure; 2. Good electromagnetic shielding; 3. Increase the current carrying capacity of the neutral line. 1、 Due to the need for a symmetrical cable structure, the number of cable cores is 3 cores, 3+1 cores (one of which is a concentric conductor structure - T), and 3+3 cores (3 large and 3 small structures). 2、 Due to the need for good electromagnetic shielding, this cable must be metal shielded. 3、 Due to the need to increase the current carrying capacity of the neutral line, it is recommended that the centerline cross-section of the cable be greater than or equal to half of the main core cross-section, preferably equal to the main core cross-section.

产品结构有：3芯导体截面：4-240mm2 3+1芯导体截面：4-240mm2 3+3芯导体截面：2.5-240mm2

The product structure includes: 3-core conductor cross-section: 4-240mm2 3+1-core conductor cross-section: 4-240mm2 3+3-core conductor cross-section: 2.5-240mm2

四、交流电压试验：电压应依次施加在每一根绝缘导体对其余导体和绕包金属层之间施加试验电压3500V/5min,绝缘应无击穿。试验应在环境温度下进行。

4、 AC voltage test: The voltage should be applied sequentially between each insulated conductor and the other conductors and the wrapped metal layer, with a test voltage of 3500V/5 minutes, and the insulation should be free of breakdown. The experiment should be conducted at ambient temperature.

变频电缆型号和规格：

Variable frequency cable model and specifications:
