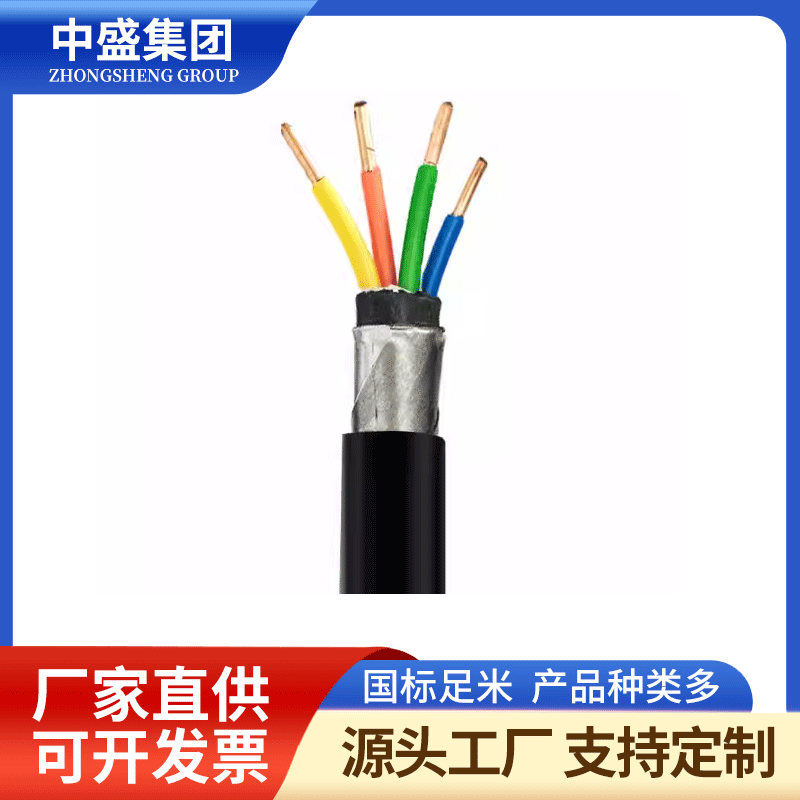

产品名称：Anti rodent and ant armored power cable FSY11-ZC-YJV22
浏览：
添加时间：2025-12-06 14:30:38
推荐度：

介绍：

防鼠、防白蚁电力电缆

Anti rodent and anti termite power cables

产品标准

product standard

本产品按GB12706- 9《额定电压35kV 及以下铜芯、铝芯塑料绝缘电力电缆》、GB2951.38-86《电线电缆白蚁试验方法》、Q/320282DCE014-2000《防鼠电线电缆》标准生产。

This product is produced in accordance with GB12706-9 "Copper core, Aluminum core plastic insulated power cables with rated voltage of 35kV and below", GB2951.38-86 "Termite test method for wires and cables", and Q/320282DCE014-2000 "Rodent proof wires and cables" standards.

电缆的型号 Type of cable

Type of cable model

使用特性

Usage characteristics

·电缆导体的长期ZUI高允许工作温度：

·The long-term maximum allowable working temperature of cable conductors:

聚氯乙烯绝缘不超过70，交联聚乙烯绝缘不超过90。

Polyvinyl chloride insulation shall not exceed 70, and cross-linked polyethylene insulation shall not exceed 90.

短路时（5秒内）zui高温度

Maximum temperature during short circuit (within 5 seconds)

聚氯乙烯绝缘不能超过160，交联聚乙烯绝缘不超过250。

Polyvinyl chloride insulation should not exceed 160, and cross-linked polyethylene insulation should not exceed 250.

·电缆敷设温度不能低于0。

·The temperature for cable laying cannot be lower than 0.

·电缆的弯曲半径为：

·The bending radius of the cable is:

·单芯电缆不小于电缆外径的20倍；多芯电缆不小于电缆外径的15倍;

·Single core cables shall not be less than 20 times the outer diameter of the cable; Multi core cables shall not be less than 15 times the outer diameter of the cable;

·防鼠电缆经GUO家电线电缆质量监督检验中心及上海医科大学动物试验研究所试验合格

·The anti rodent cable has been tested and qualified by the National Wire and Cable Quality Supervision and Inspection Center and the Animal Testing Institute of Shanghai Medical University

具备同LEI产品的XIAN进水平

Having advanced level of similar products

·防蚁电缆通过GUO标GB2951.38-86《电线电缆白蚁试验方法》的检验。

·The anti termite cable has passed the inspection of the national standard GB2951.38-86 "Test Method for Termites in Wires and Cables".

·采用XIAN进的化学防鼠防白蚁方法，具有易加工、易施工、易维护、重量轻等YOU点。

·Adopting advanced chemical anti rodent and anti termite methods, it has the advantages of easy processing, easy construction, easy maintenance, and light weight.

·具有低毒、无污染，不会对环境及人体造成二次灾害。

·It has low toxicity, no pollution, and will not cause secondary disasters to the environment and human health.

·防鼠防白蚁有效期长，可达二十年以上。

·The effective period of rodent and termite prevention is long, reaching more than 20 years.

可根据用户要求生产具有耐火、阻燃特性的防鼠电线电缆。

We can produce rodent resistant wires and cables with fire-resistant and flame-retardant properties according to user requirements.
