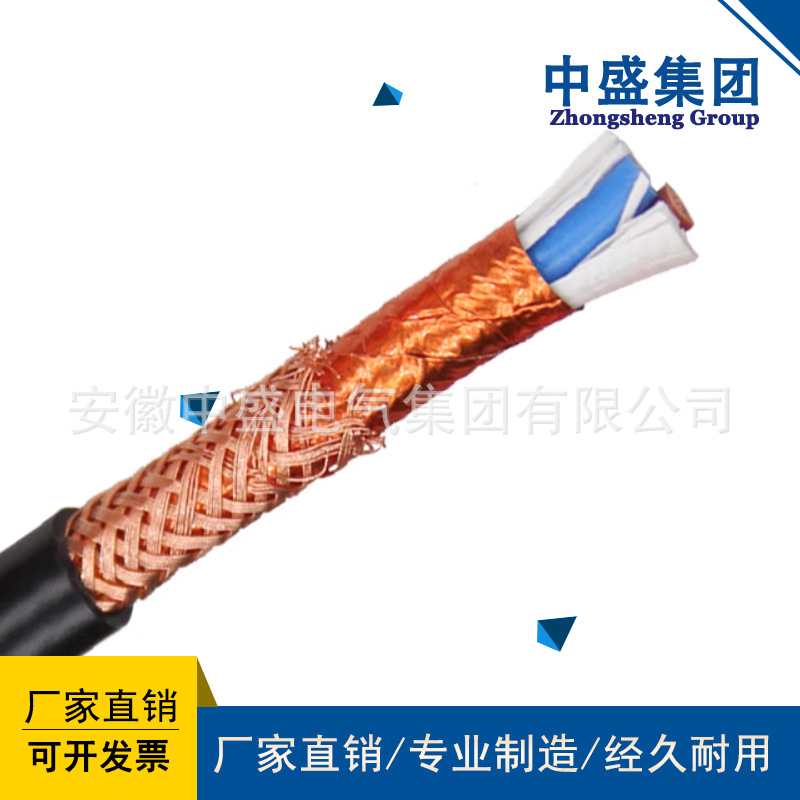

产品名称：Computer soft cable DJVP2VP2R
浏览：
添加时间：2025-12-09 16:20:28
推荐度：

介绍：

一：产品特点及用途本产品适用于交流U0/U为300/500V电力、冶金、石化等耐高温，防腐蚀行业以电子计算机为主的防爆自动控制系统、计算机集散控制系统、自动化控制系统作控制线以及检测用仪器仪表用电缆

1： Product features and uses: This product is suitable for high temperature resistant and corrosion-resistant industries such as power, metallurgy, petrochemicals, etc. with AC U0/U of 300/500V. It is mainly used for explosion-proof automatic control systems, computer distributed control systems, automation control systems as control lines, and cables for testing instruments and meters in the electronic computer industry

二：产品执行标准Q/HHTZH002.3(等效采用英国BS5308标准)阻燃性能试验执行GB12666-90标准三：使用特性1．交流额定电压：U0/U 300/500KV 2．工作温度：聚乙烯绝缘不超过70℃ 交联聚乙烯绝缘90℃ 低烟无卤阻燃聚烯烃70℃ 低烟无卤阻燃交联聚烯烃90℃和125℃两种3． ***环境温度：聚氯乙烯护套：固定敷设-40℃，非固定敷设-15℃ 4．电缆安装敷设温度应不低于0℃。5．电缆允许弯曲半径：非铠装电缆***小为电缆外径的6倍铜带屏蔽或钢带铠装电缆***小为电缆外径的12倍

2： Product execution standard Q/HHTZH002.3 (equivalent to British BS5308 standard) Flame retardant performance test execution GB12666-90 standard three: Usage characteristics 1. AC rated voltage: U0/U 300/500KV 2. Working temperature: Polyethylene insulation not exceeding 70 ℃ Cross linked polyethylene insulation 90 ℃ Low smoke halogen-free flame-retardant polyolefin 70 ℃ Low smoke halogen-free flame-retardant cross-linked polyolefin 90 ℃ and 125 ℃ 3. * * * Environmental temperature: PVC sheath: fixed laying -40 ℃, non fixed laying -15 ℃ 4. Cable installation and laying temperature should not be lower than 0 ℃. 5. Allowable bending radius for cables: The minimum allowable bending radius for non armored cables is 6 times the outer diameter of the cable. For copper tape shielded or steel tape armored cables, the minimum allowable bending radius is 12 times the outer diameter of the cable

四：基本型号及名称1．聚乙烯绝缘聚氯乙烯护套计算机用屏蔽电缆(包括DCS电缆)DJYV(R)P 聚乙烯绝缘铜丝编织总屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJYPV(R) 聚乙烯绝缘铜丝编织分屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJYPV(R)P 聚乙烯绝缘铜丝编织分屏总屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJYV(R)P2 聚乙烯绝缘铜带绕包总屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJYP2V(R) 聚乙烯绝缘铜带绕包分屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJYP2V(R)P2 聚乙烯绝缘铜带绕包分屏总屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJYV(R)P3 聚乙烯绝缘铝塑复合带绕包总屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJYP3V(R) 聚乙烯绝缘铝塑复合带绕包分屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJYP3V(R)P3 聚氯乙烯绝缘聚氯乙烯护套计算机用屏蔽电缆(包括DCS电缆)DJVV(R)P 聚氯乙烯绝缘铜丝编织总屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJVPV(R) 聚氯乙烯绝缘铜丝编织分屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJVPV(R)P 聚氯乙烯绝缘铜丝编织分屏总屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJVV(R)P2 聚氯乙烯绝缘铜带绕包总屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJVP2V(R) 聚氯乙烯绝缘铜带绕包分屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJVP2V(R)P2 聚氯乙烯绝缘铜带绕包分屏总屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJVV(R)P3 聚氯乙烯绝缘铝塑复合带绕包总屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJVP3V(R) 聚氯乙烯绝缘铝塑复合带绕包分屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJVP3V(R)P3 聚氯乙烯绝缘交联聚乙烯绝缘聚氯乙烯护套计算机用屏蔽电缆(包括DCS电缆)DJYJV(R)P 交联聚乙烯绝缘铜丝编织总屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJYJPV(R) 交联聚乙烯绝缘铜丝编织分屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJYJPV(R)P 交联聚乙烯绝缘铜丝编织分屏总屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJYJV(R)P2 交联聚乙烯绝缘铜带绕包总屏聚氯乙烯护套计算机用屏蔽(软)电缆 DJYJP2V(R)

4： Basic Model and Name: 1. Shielded Cable for Computers with Polyethylene Insulation and PVC Sheath (including DCS Cable) DJYV (R) P Polyethylene Insulation Copper Wire Braided Screen PVC Sheath Computer Shielded (Soft) Cable DJYPV (R) Polyethylene Insulation Copper Wire Braided Screen PVC Sheath Computer Shielded (Soft) Cable DJYPV (R) P Polyethylene Insulation Copper Wire Braided Screen PVC Sheath Computer Shielded (Soft) Cable DJYV (R) P2 Polyethylene Insulation Copper Tape Wrapped Screen PVC Sheath Computer Shielded (Soft) Cable DJYP2V (R) Polyethylene Insulation Copper Tape Wrapped Screen PVC Sheath Computer Shielded (Soft) Cable DJYP2V (R) P2 Polyethylene Insulation Copper Tape Shielded (Soft) Cable DJYV (R) P3 for Computers with PVC Sheath for Wrapping, Splitting, and Overall Screen Polyethylene insulated aluminum-plastic composite tape wrapped total screen PVC sheathed computer shielding (soft) cable DJYP3V (R) polyethylene insulated aluminum-plastic composite tape wrapped split screen PVC sheathed computer shielding (soft) cable DJYP3V (R) P3 PVC insulated PVC sheathed computer shielding cable (including DCS cable) DJVV (R) P PVC insulated copper wire braided total screen PVC sheathed computer shielding (soft) cable DJVPV (R) PVC insulated copper wire braided split screen PVC sheathed computer shielding (soft) cable DJVPV (R) P PVC insulated copper wire braided split screen total screen PVC sheathed computer shielding (soft) cable DJVV (R) P2 PVC insulated copper wire braided total screen PVC sheathed shielded (flexible) cable DJVP2V (R) for computers PVC insulated copper tape wrapped split screen PVC sheathed computer shielding (soft) cable DJVP2V (R) P2 PVC insulated copper tape wrapped split screen PVC sheathed computer shielding (soft) cable DJVV (R) P3 PVC insulated aluminum-plastic composite tape wrapped total screen PVC sheathed computer shielding (soft) cable DJVP3V (R) PVC insulated aluminum-plastic composite tape wrapped split screen PVC sheathed computer shielding (soft) cable DJVP3V (R) P3 PVC insulated cross-linked polyethylene insulated PVC sheathed computer shielding cable (including DCS cable) DJYJV (R) P cross-linked polyethylene insulated copper wire braided total screen PVC sheathed computer shielding (soft) cable DJYJPV (R) cross-linked Polyethylene insulated copper wire braided split screen PVC sheathed shielded (flexible) cable for computer DJYJPV (R) P Cross linked polyethylene insulated copper wire braided split screen total screen PVC sheathed computer shielded (soft) cable DJYJV (R) P2 Cross linked polyethylene insulated copper tape wrapped total screen PVC sheathed computer shielded (soft) cable DJYJP2V (R)
