产品名称：WDZC-FSY11-DJYP2YP2-23 LSZH Anti-Rodent & Anti-Termite I
浏览：
添加时间：2026-05-19 10:39:05
推荐度：

介绍：

在工业自动化及智能化控制系统中，信号传输的稳定性直接影响设备运行。针对地下管廊、隧道及工业环境存在的电磁干扰、生物侵害及消防安全风险，WDZC-FSY11-DJYP2YP2-23 低烟无卤防鼠蚁计算机电缆旨在提供相应的线路防护与信号传输支持。

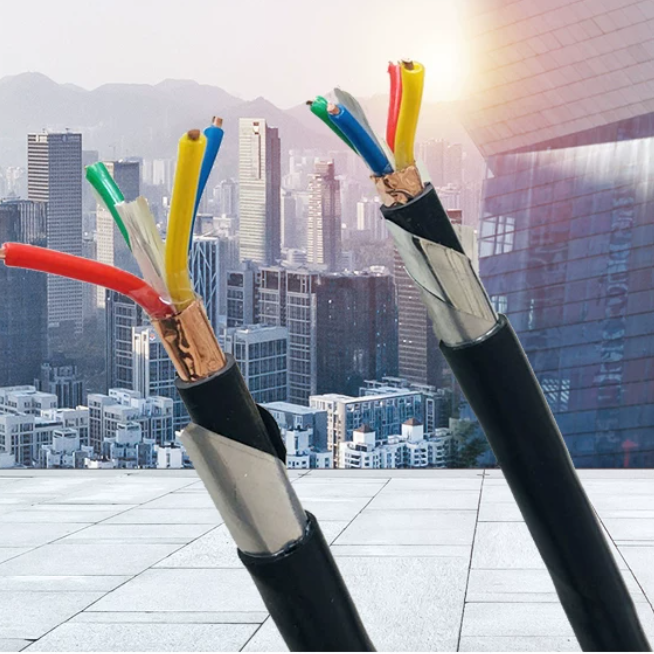

WDZC-FSY11-DJYP2YP2-23 Low Smoke Zero Halogen Anti-Rodent & Anti-Termite Computer Cable Product Description

In industrial automation and intelligent control systems, the stability of signal transmission directly affects equipment operation. Addressing risks such as electromagnetic interference, biological damage, and fire safety hazards in environments like underground utility tunnels, tunnels, and industrial settings, the WDZC-FSY11-DJYP2YP2-23 Low Smoke Zero Halogen (LSZH) Anti-Rodent & Anti-Termite Computer Cable is designed to provide corresponding line protection and signal transmission support.

产品主要特性 (Product Main Features)

1. 屏蔽结构设计

采用铜带分屏蔽与铜带总屏蔽结构。该设计有助于减少外界电磁场对信号传输的影响，降低信号衰减，适用于对数据传输稳定性有要求的控制系统。

1. Shielding Structure Design

Adopts copper tape sub-shielding and copper tape overall shielding structure. This design helps reduce the impact of external electromagnetic fields on signal transmission and lowers signal attenuation, making it suitable for control systems requiring stable data transmission.

2. 生物防护处理

护套材料采用物理硬度增强或添加环保型驱避剂的方式，以抵御鼠类和白蚁的啃咬，降低因生物侵害导致线路故障的概率。

2. Biological Protection Treatment

The sheath material is treated by enhancing physical hardness or adding environmentally friendly repellents to resist biting by rodents and termites, thereby reducing the probability of line faults caused by biological damage.

3. 阻燃与环保性能

绝缘层与护套采用交联聚乙烯及低烟无卤聚烯烃材料。在受火状态下，具有离火自熄特性，且烟密度较低，不释放卤酸气体，符合相关消防安全标准。

3. Flame Retardancy and Environmental Performance

The insulation and sheath utilize cross-linked polyethylene and low smoke zero halogen polyolefin materials. Under fire exposure, it exhibits self-extinguishing characteristics and maintains low smoke density without releasing halogen acid gases, complying with relevant fire safety standards.

4. 机械防护能力

内层设置钢带铠装层，具备一定的抗压与抗冲击能力，可适应直埋敷设或存在机械外力作用的场景。

4. Mechanical Protection Capability

An inner layer of steel tape armoring provides a certain level of compression and impact resistance, allowing it to adapt to scenarios involving direct burial or exposure to mechanical external forces.

典型应用场景 (Typical Application Scenarios)

工业自动化：发电厂、石油化工、钢铁厂等企业的仪表信号传输与计算机控制系统。
交通运输：地铁、高铁、轻轨等项目的隧道动力与信号系统。
市政工程：城市地下综合管廊、智能楼宇的弱电控制线路。
能源环保：水处理厂、光伏发电、风力发电的集电与控制信号线路。
Typical Application Scenarios
Industrial Automation: Instrument signal transmission and computer control systems in enterprises such as power plants, petrochemical plants, and steel mills.
Transportation: Tunnel power and signal systems for projects like subways, high-speed rails, and light rails.
Municipal Engineering: Weak current control lines in urban underground comprehensive pipe corridors and smart buildings.
Energy & Environmental Protection: Collector and control signal lines for water treatment plants, photovoltaic power generation, and wind power generation.

产品基础参数 (Basic Product Parameters)

参数项目 (Parameter)	参数值 (Parameter Value)
产品名称 (Product Name)	WDZC-FSY11-DJYP2YP2-23 低烟无卤防鼠蚁计算机铠装电缆 WDZC-FSY11-DJYP2YP2-23 LSZH Anti-Rodent & Anti-Termite Armored Computer Cable
导体材质 (Conductor Material)	无氧铜 (Oxygen-free Copper)
额定电压 (Rated Voltage)	300/500V
屏蔽结构 (Shielding Structure)	铜带分屏蔽 + 铜带总屏蔽 (Copper Tape Sub-shield + Overall Shield)
铠装结构 (Armor Structure)	双层钢带铠装 (Double Steel Tape Armor)
护套特性 (Sheath Characteristics)	低烟无卤、防鼠、防白蚁 (LSZH, Anti-Rodent, Anti-Termite)
参考标准 (Reference Standards)	参照 GB/T 19666, GB/T 9330 等相关标准 (Refer to relevant standards such as GB/T 19666, GB/T 9330)
