产品名称：YQW Lightweight Rubber Sheathed Flexible Cable
浏览：
添加时间：2026-05-29 15:01:35
推荐度：

介绍：

YQW 轻型橡套软电缆

YQW Lightweight Rubber Sheathed Flexible Cable

YQW 是一种适用于户外及轻度油污环境的移动用软电缆，主要用于各类便携式电器、电动工具及小型设备的电源连接。

YQW is a flexible cable designed for mobile use in outdoor and light oil-contaminated environments, mainly used for power connection of portable appliances, power tools, and small equipment.

产品简介

Product Overview

YQW 属于轻型橡套电缆系列，其中字母“W”表示户外型。它在普通轻型橡套电缆的基础上，采用了耐候性更强的护套材料，具备抗紫外线、耐油、耐寒等特性，适合在户外露天或接触油污的场合长期使用。

YQW belongs to the lightweight rubber sheathed cable series, where the letter "W" stands for Outdoor type. Compared with standard lightweight rubber cables, it uses a weather-resistant sheath material with UV resistance, oil resistance, and cold resistance, making it suitable for long-term use in open-air or oil-exposed environments.

结构组成

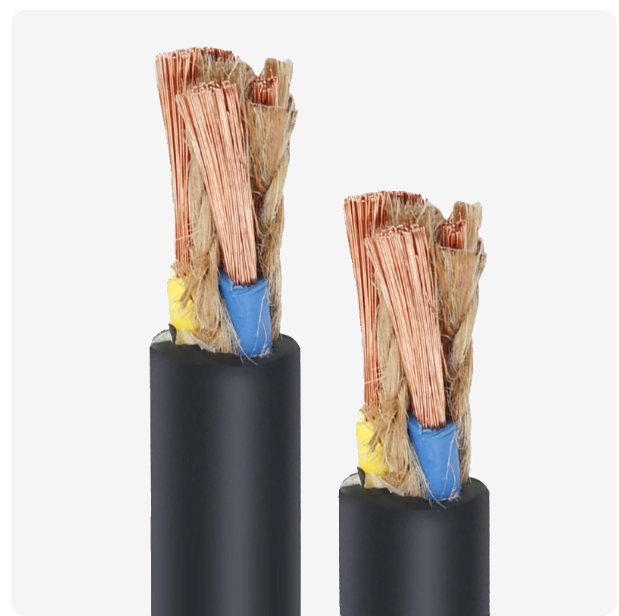

Structure & Construction

导体：多股细铜丝绞合而成，柔软性好，适合频繁弯曲和移动使用。
Conductor: Stranded fine copper wires offering high flexibility, suitable for frequent bending and mobile applications.
绝缘层：橡胶混合物包裹，提供可靠的电气绝缘保护。
Insulation: Rubber compound insulation providing reliable electrical protection.
护套层：耐候型橡胶护套，增强耐磨、耐油、耐日晒和抗老化能力。
Sheath: Weather-resistant rubber sheath enhancing abrasion, oil, sunlight, and aging resistance.

常见派生型号包括：

Common variants include:

YQ：普通轻型橡套电缆（无耐候要求）；
YQ: Standard lightweight rubber sheathed cable (non-weatherproof);
YZ / YZW：中型橡套电缆及其户外型，截面和承载能力更大。
YZ / YZW: Medium-duty rubber sheathed cable and its outdoor type, with larger cross-section and higher current capacity.

主要特点

Key Features

柔软耐弯：导体采用多股细丝结构，弯曲半径小，适合手持工具和移动设备频繁拖拽。
Flexible & Bendable: Multi-strand conductor design allows small bending radius, ideal for handheld tools and frequently moved equipment.
耐候性强：护套可抵御紫外线、臭氧和气候变化，适合户外露天敷设。
Strong Weather Resistance: The sheath resists UV rays, ozone, and climate variations, suitable for outdoor open-air installation.
耐油耐污：在轻度油污环境中不易老化，适合车间、工地等场合。
Oil & Contamination Resistant: Resists aging in light oil environments, suitable for workshops and construction sites.
耐寒性能：在较低温度下仍能保持柔韧性，不易变硬或开裂。
Cold Resistance: Remains flexible at low temperatures without hardening or cracking.

典型参数（参考值）

Typical Parameters (Reference Values)

额定电压：300/300V 或 450/750V
Rated Voltage: 300/300V or 450/750V
长期工作温度：≤ 65℃
Long-term Working Temperature: ≤ 65℃
常用芯数：2 芯、3 芯
Common Cores: 2-core, 3-core
常用截面：0.3 mm²、0.5 mm²、0.75 mm²、1.0 mm²、1.5 mm²
Common Cross-sections: 0.3 mm², 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm²
***低使用温度：约 -35℃（固定敷设）
Minimum Operating Temperature: approx. -35℃ (fixed installation)

应用领域

Application Fields

家用电器：吸尘器、电熨斗、电风扇等需要频繁移动的小型家电。
Household Appliances: Portable appliances requiring frequent movement, such as vacuum cleaners, electric irons, and fans.
电动工具：手电钻、角磨机、曲线锯等户外或工地使用的便携式工具。
Power Tools: Portable tools used outdoors or on construction sites, such as hand drills, angle grinders, and jigsaws.
仪器仪表：万用表、检测设备等便携仪器的电源线。
Instruments & Meters: Power cords for portable devices such as multimeters and testing equipment.
户外设备：临时舞台灯光、户外广告灯箱、小型施工机具的电源连接。
Outdoor Equipment: Power connections for temporary stage lighting, outdoor advertising light boxes, and small construction machinery.

使用与选型要点

Usage & Selection Guidelines

选型建议：
Selection Suggestions:

在户外或油污环境中，应优先选用带“W”的 YQW，普通 YQ 不具备耐候性；
In outdoor or oily environments, prioritize YQW with "W"; standard YQ lacks weather resistance.
负载电流较大时，可考虑截面更大的 YZW 中型户外电缆。
For higher load currents, consider the medium-duty YZW outdoor cable with larger cross-section.

敷设注意：避免电缆被尖锐物体划伤或被重物长期碾压，防止护套破损。
Installation Note: Avoid sharp objects or heavy rolling loads that may cut or crush the sheath.
存放建议：闲置时应盘绕整齐，存放在干燥、通风、避免阳光直射的场所。
Storage Advice: When not in use, coil neatly and store in a dry, ventilated place away from direct sunlight.
