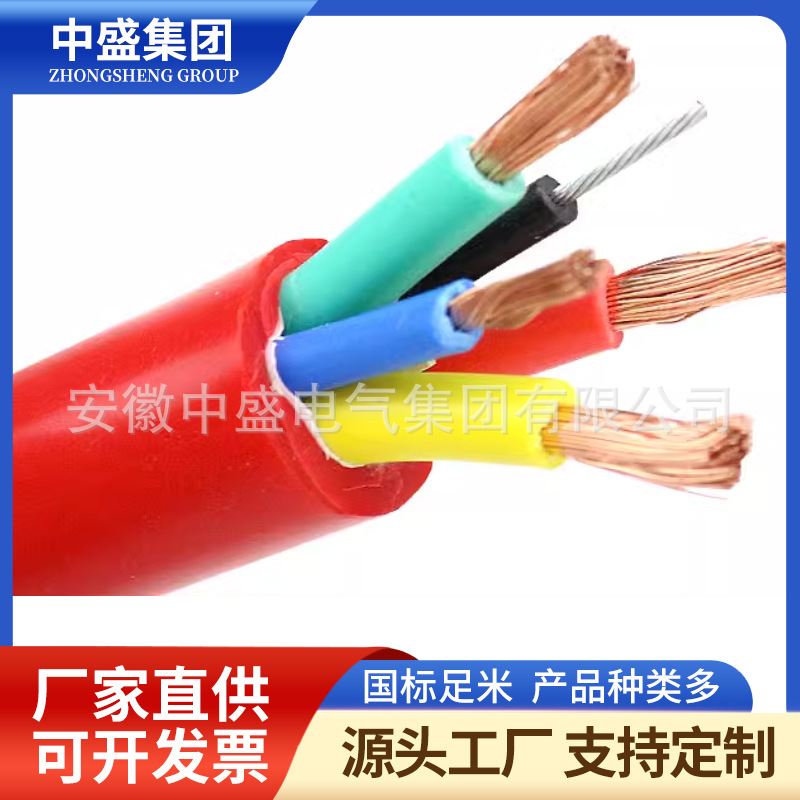

产品名称：Variable frequency cable BPGGRP
浏览：
添加时间：2025-05-19 16:23:50
推荐度：

介绍：

产品简介
Product Introduction
变频电缆主要用于电源和变频电机之间连接用的电缆,以及额定电压1KV及以下的输配电线路中,作输送电能用.尤其适用于造纸、冶金、金属加工、矿山、铁路和食品加工等行业。
Variable frequency cables are mainly used for connecting power supplies and variable frequency motors, as well as in transmission and distribution lines with a rated voltage of 1KV and below, for transmitting electrical energy. They are particularly suitable for industries such as papermaking, metallurgy, metal processing, mining, railways, and food processing.

详情介绍
Details Introduction
变频电缆产品用途
Application of frequency conversion cable products
变频电缆主要用于电源和变频电机之间连接用的电缆,以及额定电压1KV及以下的输配电线路中,作输送电能用.尤其适用于造纸、冶金、金属加工、矿山、铁路和食品加工等行业。
Variable frequency cables are mainly used for connecting power supplies and variable frequency motors, as well as in transmission and distribution lines with a rated voltage of 1KV and below, for transmitting electrical energy. They are particularly suitable for industries such as papermaking, metallurgy, metal processing, mining, railways, and food processing.
使用条件
Usage conditions
1、额定电压U0/U：0.6/1KV.
1. Rated voltage U0/U: 0.6/1KV
2、电缆导体长期允许zui高温度为90度,短路时zui高温度250度
2. The cable conductor is allowed to have a high temperature of 90 degrees Celsius for a long time, and a high temperature of 250 degrees Celsius during a short circuit
3、安装敷设环境温度不低于0度,固定敷设时环境温度不低于-10度.
3. The installation and laying environment temperature shall not be lower than 0 degrees, and the fixed laying environment temperature shall not be lower than -10 degrees
4、电缆允许zui小弯曲半径不小于15D（D-电缆外径,mm）
4. The allowable small bending radius of the cable is not less than 15D (D-cable outer diameter, mm)
产品性能
Product performance
1、设计采用符合GB/T3956-1997规定的第5类软绞合铜导体。
1. The design adopts Class 5 soft stranded copper conductors that comply with GB/T3956-1997 regulations.
2、交联聚乙烯绝缘、耐温耐候性好。
2. Crosslinked polyethylene insulation, good temperature and weather resistance.
3、低传输阻抗，电磁兼容性好。
3. Low transmission impedance, good electromagnetic compatibility.
4、低工作电容
4. Low working capacitance
5、良好的抗干扰和低辐射性能。
5. Good anti-interference and low radiation performance.
6、对称的三芯电缆结构设计，具有比四芯电缆更好的传输性能。
6. The symmetrical three core cable structure design has better transmission performance than four core cables.

型号名称
Model name
BPGGP
BPGGP
硅橡胶绝缘和护套铜丝编织屏蔽耐高温变频电力电缆。
Silicone rubber insulated and sheathed copper wire braided shielded high temperature resistant variable frequency power cables.
BPGGP2
BPGGP2
硅橡胶绝缘和护套铜带绕包屏蔽耐高温变频电力电缆。
Silicone rubber insulated and sheathed copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPGGPP2
BPGGPP2
硅橡胶绝缘和护套铜丝编织铜带绕包屏蔽耐高温变频电力电缆。
Silicone rubber insulated and sheathed copper wire woven copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPGGP3
BPGGP3
硅橡胶绝缘和护套铝聚酯复合膜绕包屏蔽耐高温变频电力电缆。
Silicone rubber insulated and sheathed aluminum polyester composite film wrapped and shielded high-temperature resistant variable frequency power cables.
BPGVFP
BPGVFP
硅橡胶绝缘丁氰护套铜丝编织屏蔽耐高温变频电力电缆。
Silicone rubber insulated nitrile sheathed copper wire braided shield high-temperature resistant variable frequency power cable.
BPGVFP2
BPGVFP2
硅橡胶绝缘丁氰护套铜带绕包屏蔽耐高温变频电力电缆。
Silicone rubber insulated nitrile sheathed copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPGVFPP2
BPGVFPP2
硅橡胶绝缘丁氰护套铜丝编织铜带绕包屏蔽耐高温变频电力电缆。
Silicone rubber insulated nitrile sheathed copper wire braided copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPGVFP3
BPGVFP3
硅橡胶绝缘丁氰护套铝聚酯复合膜绕包屏蔽耐高温变频电力电缆。
Silicone rubber insulated nitrile sheathed aluminum polyester composite film wrapped and shielded high-temperature resistant variable frequency power cables.
BPFFP
BPFFP
氟46绝缘和护套铜丝编织屏蔽耐高温变频电力电缆。
Fluorine 46 insulated and sheathed copper wire braided shielded high-temperature resistant variable frequency power cable.
BPFFP2
BPFFP2
氟46绝缘和护套铜带绕包屏蔽耐高温变频电力电缆。
Fluorine 46 insulated and sheathed copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPFFPP2
BPFFPP2
氟46绝缘和护套铜丝编织铜带绕包屏蔽耐高温变频电力电缆
Fluorine 46 insulated and sheathed copper wire braided copper tape wrapped and shielded high-temperature resistant variable frequency power cable
BPFFP3
BPFFP3
氟46绝缘和护套铝聚酯复合膜绕包屏蔽耐高温变频电力电缆。
Fluorine 46 insulated and sheathed aluminum polyester composite film wrapped and shielded high-temperature resistant variable frequency power cables.
BPVVP
BPVVP
聚氯乙烯绝缘和护套铜丝编织屏蔽变频电力电缆。
PVC insulated and sheathed copper wire braided shielded variable frequency power cables.
BPVVP2
BPVVP2
聚氯乙烯绝缘和护套铜带绕包屏蔽变频电力电缆。
PVC insulated and sheathed copper tape wrapped shielded variable frequency power cables.
BPVVPP2
BPVVPP2
聚氯乙烯绝缘和护套铜丝编织铜带绕包屏蔽变频电力电缆。
PVC insulated and sheathed copper wire woven copper tape wrapped and shielded variable frequency power cables.
BPVVP3
BPVVP3
聚氯乙烯绝缘和护套铝聚酯复合膜绕包屏蔽变频电力电缆。
PVC insulated and sheathed aluminum polyester composite film wrapped and shielded variable frequency power cables.
BPYJVP
BPYJVP
交联聚乙烯绝缘聚氯乙烯护套铜丝编织屏蔽变频电力电缆。
Cross linked polyethylene insulated polyvinyl chloride sheathed copper wire braided shielded variable frequency power cable.
BPYJVP2
BPYJVP2
交联聚乙烯绝缘聚氯乙烯护套铜带绕包屏蔽变频电力电缆。
Cross linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped and shielded variable frequency power cables.
BPYJVPP2
BPYJVPP2
交联聚乙烯绝缘聚氯乙烯护套铜丝编织铜带绕包屏蔽变频电力电缆。
Cross linked polyethylene insulated polyvinyl chloride sheathed copper wire braided copper tape wrapped shielding variable frequency power cable.
BPYJVP3
BPYJVP3
交联聚乙烯绝缘聚氯乙烯护套铝聚酯复合膜绕包屏蔽变频电力电缆。
Cross linked polyethylene insulated polyvinyl chloride sheathed aluminum polyester composite film wrapped shielding variable frequency power cable.
四：基本型号及名称
4： Basic model and name
BPGGP
BPGGP
硅橡胶绝缘和护套铜丝编织屏蔽耐高温变频电力电缆。
Silicone rubber insulated and sheathed copper wire braided shielded high temperature resistant variable frequency power cables.
BPGGP2
BPGGP2
硅橡胶绝缘和护套铜带绕包屏蔽耐高温变频电力电缆。
Silicone rubber insulated and sheathed copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPGGPP2
BPGGPP2
硅橡胶绝缘和护套铜丝编织铜带绕包屏蔽耐高温变频电力电缆。
Silicone rubber insulated and sheathed copper wire woven copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPGGP3
BPGGP3
硅橡胶绝缘和护套铝聚酯复合膜绕包屏蔽耐高温变频电力电缆。
Silicone rubber insulated and sheathed aluminum polyester composite film wrapped and shielded high-temperature resistant variable frequency power cables.
BPGVFP
BPGVFP
硅橡胶绝缘耐寒橡胶护套铜丝编织屏蔽耐高温变频电力电缆。
Silicone rubber insulated and cold resistant rubber sheathed copper wire braided shielded and high-temperature resistant variable frequency power cable.
BPGVFP2
BPGVFP2
硅橡胶绝缘耐寒橡胶护套铜带绕包屏蔽耐高温变频电力电缆。
Silicone rubber insulated and cold resistant rubber sheathed copper tape wrapped and shielded high temperature resistant variable frequency power cables.
BPGVFPP2
BPGVFPP2
硅橡胶绝缘耐寒橡胶护套铜丝编织铜带绕包屏蔽耐高温变频电力电缆。
Silicone rubber insulated and cold resistant rubber sheathed copper wire woven copper tape wrapped and shielded high temperature resistant variable frequency power cables.
BPGVFP3
BPGVFP3
硅橡胶绝缘耐寒橡胶护套铝聚酯复合膜绕包屏蔽耐高温变频电力电缆。
Silicone rubber insulated and cold resistant rubber sheathed aluminum polyester composite film wrapped and shielded high temperature resistant variable frequency power cables.
BPFFP
BPFFP
氟46绝缘和护套铜丝编织屏蔽耐高温变频电力电缆。
Fluorine 46 insulated and sheathed copper wire braided shielded high-temperature resistant variable frequency power cable.
BPFFP2
BPFFP2
氟46绝缘和护套铜带绕包屏蔽耐高温变频电力电缆。
Fluorine 46 insulated and sheathed copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPFFPP2
BPFFPP2
氟46绝缘和护套铜丝编织铜带绕包屏蔽耐高温变频电力电缆
Fluorine 46 insulated and sheathed copper wire braided copper tape wrapped and shielded high-temperature resistant variable frequency power cable
BPFFP3
BPFFP3
氟46绝缘和护套铝聚酯复合膜绕包屏蔽耐高温变频电力电缆。
Fluorine 46 insulated and sheathed aluminum polyester composite film wrapped and shielded high-temperature resistant variable frequency power cables.
BPVVP
BPVVP
聚氯乙烯绝缘和护套铜丝编织屏蔽变频电力电缆。
PVC insulated and sheathed copper wire braided shielded variable frequency power cables.
BPVVP2
BPVVP2
聚氯乙烯绝缘和护套铜带绕包屏蔽变频电力电缆。
PVC insulated and sheathed copper tape wrapped shielded variable frequency power cables.
BPVVPP2
BPVVPP2
聚氯乙烯绝缘和护套铜丝编织铜带绕包屏蔽变频电力电缆。
PVC insulated and sheathed copper wire woven copper tape wrapped and shielded variable frequency power cables.
BPVVP3
BPVVP3
聚氯乙烯绝缘和护套铝聚酯复合膜绕包屏蔽变频电力电缆。
PVC insulated and sheathed aluminum polyester composite film wrapped and shielded variable frequency power cables.
BPYJVP
BPYJVP
交联聚乙烯绝缘聚氯乙烯护套铜丝编织屏蔽变频电力电缆。
Cross linked polyethylene insulated polyvinyl chloride sheathed copper wire braided shielded variable frequency power cable.
BPYJVP2
BPYJVP2
交联聚乙烯绝缘聚氯乙烯护套铜带绕包屏蔽变频电力电缆。
Cross linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped and shielded variable frequency power cables.
BPYJVPP2
BPYJVPP2
交联聚乙烯绝缘聚氯乙烯护套铜丝编织铜带绕包屏蔽变频电力电缆。
Cross linked polyethylene insulated polyvinyl chloride sheathed copper wire braided copper tape wrapped shielding variable frequency power cable.
BPYJVP3
BPYJVP3
耐寒橡胶绝缘及护套铝聚酯复合膜绕包屏蔽变频电力电缆。
Cold resistant rubber insulated and sheathed aluminum polyester composite film wrapped and shielded variable frequency power cables.
型号说明
Model Description
项目代号说明
Project code description
系列代号 BP
Series code BP
绝缘代号 YJ 交联聚乙烯绝缘 FV耐寒材料绝缘
Insulation code YJ cross-linked polyethylene insulation FV cold resistant material insulation
护套代号 V 聚氯乙烯护套
Sheath code V PVC sheath
护套代号 E 无卤低烟聚烯烃护套
Sheath code E halogen-free low smoke polyolefin sheath
屏蔽代号 TP2 同心导体铜带屏蔽结构
Shielding code TP2 concentric conductor copper tape shielding structure
屏蔽代号 P12 铜带屏蔽铜丝编织双重屏蔽
Shielding code P12: Copper tape shielding, copper wire braided double shielding
屏蔽代号 PX12 铜带屏蔽镀锡铜丝编织双重屏蔽
Shielding code PX12 Copper tape shielding, tin plated copper wire braided double shielding
铠装代号 22 钢带铠装
Armor code 22 Steel strip armor
阻燃代号 ZR 阻燃型
Flame retardant code ZR Flame retardant type
